Draper CS16300 Instructions

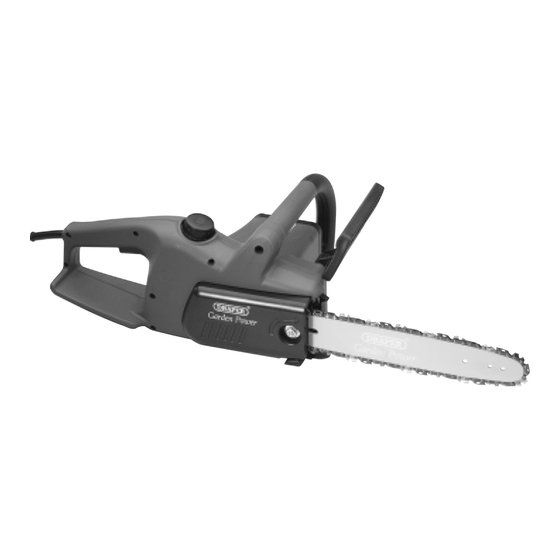

Chainsaw

CHAINSAW

STOCK No.56485

PART No.CS16300

60554

CS16400

• INSTRUCTIONS •

IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY TO ENSURE THE

SAFE AND EFFECTIVE USE OF THIS TOOL.

06/2000

SPECIFICATION

Whilst every effort has been made to ensure that the information given in this manual is correct at

the time of going to print, the Draper Tools policy of continuous improvement determines the right

to change specification without notice.

Stock No. ...............................................................................................56485.........................60554

Part No.................................................................................................CS16300..................CS16400

Voltage ..................................................................................................240V............................240V

Motor ...................................................................................................1600W........................1600W

Blade length.........................................................................................300mm......................400mm

Chain speed ........................................................................................9M/sec......................9M/sec

Weight ...................................................................................................4.3kg..........................4.4kg

Sound power level..............................................................................104db(A).................104db(A)

Sound pressure level............................................................................91db(A)...................91db(A)

Vibration level ......................................................................................4.5m/s

.....................4.5m/s

Table of Contents

Do you have a question about the CS16300 and is the answer not in the manual?

Page 1 SPECIFICATION Whilst every effort has been made to ensure that the information given in this manual is correct at the time of going to print, the Draper Tools policy of continuous improvement determines the right to change specification without notice.
Page 2: Power Supply
This guarantee applies in lieu of any other guarantee expressed or implied and variations of its terms are not authorized. Your Draper guarantee is not effective unless you can produce upon request a dated receipt or invoice to verify your proof of purchase within the 12 month period.
Page 3 Description Stock No. AGP10 ........ Log Sawing Horse ........57780 AGP8 ......Replacement chain (CS16300) ......57443 AGP9 ......Replacement chain (CS16400) ......57443 AGP11 ...... Biodegradeable Chain Oil (1L) ......58670 AGP12 ...... Biodegradeable Chain Oil (5L) ......58677...
Page 4 ©Published by Draper Tools Ltd. No part of this publication may be reproduced, stored in a retrieval system or transmitted in any form or by any means, electronic, mechanical photocopying, recording or otherwise without prior permission in writing from Draper Tools Ltd.
