IMPORTANT:
PLEASE READ THESE INSTRUCTIONS CAREFULLY TO ENSURE THE SAFE AND
This manual has been compiled by Draper Tools and is an integrated part of the product with which it is enclosed and
should be kept with it for future references.
This manual describes the purpose for which the product has been designed and contains all the necessary information
to ensure its correct and safe use. We recommend that this manual is read before any operation or, before performing
any kind of adjustment to the product and prior to any maintenance tasks. By following all the general safety instructions
contained in this manual, it will ensure both product and operator safety, together with longer life of the product itself.
All photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the product.
Whilst every effort has been made to ensure accuracy of information contained in this manual, the Draper Tools policy of
continuous improvement determines the right to make modifications without prior warning.

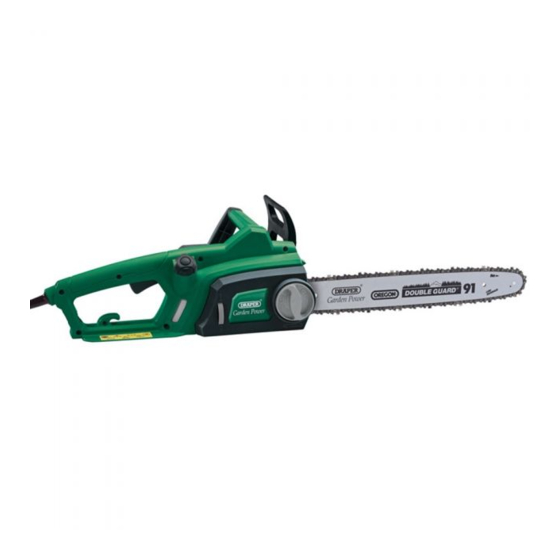

230V Chainsaw
1800W
1600W
EFFECTIVE USE OF THIS PRODUCT.
GENERAL INFORMATION
Stock No.81564
Stock No.81565
INSTRUCTIONS FOR
Part No.CS1800A
Part No.CS1600A
CS1800A shown.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Draper CS1800A
Summary of Contents for Draper CS1800A
-
Page 1: General Information
CS1800A shown. GENERAL INFORMATION This manual has been compiled by Draper Tools and is an integrated part of the product with which it is enclosed and should be kept with it for future references. This manual describes the purpose for which the product has been designed and contains all the necessary information to ensure its correct and safe use. -
Page 2: Title Page
Commercial copying, redistribution, hiring or lending is prohibited. No part of this publication may be stored in a retrieval system or transmitted in any other form or means without written permission from Draper Tools Limited. In all cases this copyright notice must remain intact. -
Page 3: Table Of Contents
CONTENTS 2.1 CONTENTS PAGE TITLE PAGE INTRODUCTION ....................2 REVISION HISTORY....................2 UNDERSTANDING THIS MANUAL ...............2 COPYRIGHT NOTICE....................2 CONTENTS CONTENTS ......................3 GUARANTEE GUARANTEE ......................4 INTRODUCTION SCOPE ........................5 SPECIFICATION ......................5 HANDLING & STORAGE ..................5 HEALTH & SAFETY INFORMATION GENERAL CHAINSAW SAFETY INFORMATION ............6 CHAINSAW OPERATIONAL SAFETY INFORMATION ...........7 CONNECTION TO THE POWER SUPPLY..............9 GETTING TO KNOW YOUR CHAINSAW... -
Page 4: Guarantee
This guarantee applies in lieu of any other guarantee expressed or implied and variations of its terms are not authorised. Your Draper guarantee is not effective unless you can produce upon request a dated receipt or invoice to verify your proof of purchase within the guarantee period. -
Page 5: Introduction
Electric chainsaw, which is intended for cutting timber by means of the saw chain supported by a guide bar. 4.2 SPECIFICATION Stock no ............... 81564 ............81565 Part no .............. CS1800A ..........CS1600A Rated voltage ..........230V/50Hz ..........230V/50Hz Rated input ............1800W ............1600W Guide bar length: ..........405mm............. 356mm Guide bar specification: ..... -
Page 6: Health & Safety Information
HEALTH & SAFETY INFORMATION 5.1 GENERAL CHAINSAW SAFETY INFORMATION Chainsaws pose a very significant health and safety risk, even to careful and informed operators, for example, the use of a chainsaw in the workplace requires extensive training and certification. The dangers of using and applying a chainsaw should not be taken lightly. Seek guidance, training or employ a professional to carry out the task if uncertain or nervous of the potential risks and dangers involved. -
Page 7: Chainsaw Operational Safety Information
HEALTH & SAFETY INFORMATION – Remove any scrub or other obstructions from the area to enable a quick escape route and ensure visibility of the chain is not impeded during cutting. – Plan work to reduce manual lifting, i.e. lightest off cuts move furthest. –... - Page 8 HEALTH & SAFETY INFORMATION – Always perform a notch cut followed by a felling cut to create a felling hinge. Felling wedges or levers may be necessary to prevent the chainsaw from becoming pinched in the felling cut. Limbing – Ensure the tree is stable before any limbering commences.
-
Page 9: Connection To The Power Supply
HEALTH & SAFETY INFORMATION – Never operate the chainsaw with a mal adjusted or blunt chain as this is highly dangerous. – When the saw chain has warmed up, stop the chain & disconnect the main supply before checking/adjusting the tension. –... -
Page 10: Getting To Know Your Chainsaw
GETTING TO KNOW YOUR CHAINSAW 6.1 IDENTIFICATION Oil inspection window. Locking button. Knurling wheel for quick saw chain Chain lubrication filler cap. tension adjustment. Operating switch Gear cover. Mains connection with T-screw. approved moulded plug. Brake. Front handle. -
Page 11: Unpacking & Checking
Lay the contents out and check them against the parts shown below. If any part is damaged or missing; please contact the Draper Helpline (the telephone number appears on the Title page) and do not attempt to use the chainsaw. -
Page 12: Assembly
ASSEMBLY Warning: FIG.1 Do not start the chainsaw before mounting and correctly adjusting the guide bar and saw chain. Attention: Saw chain is extremely sharp - wear gloves when handling saw chain. 8.1 ATTACHING/ADJUSTING GUIDE BAR AND CHAIN (FIGS.1 - 4): Put the chainsaw on a stable rest. -
Page 13: Lubrication
ASSEMBLY Caution: FIG.4 During the running-in period, the saw chain must be more frequently tightened. The saw chain must be immediately re-tightened if it shakes or leaves the groove! – To tension the saw chain, slightly loosen the T-screw Then turn the knurling wheel upwards (+ direction of arrow). -
Page 14: Operation And Use
OPERATION AND USE WARNING: DO NOT START THE CHAINSAW UNTIL IT IS FULLY ASSEMBLED, CORRECTLY ADJUSTED AND ALL FUNCTIONS AND CONTROLS ARE FAMILIAR. Note: For first time users of this type of equipment, it is essential that introductory training is undertaken from an experienced and authorised person. -
Page 15: Connecting The Chainsaw
OPERATION AND USE WARNING: FIG.8 DO NOT START THE CHAINSAW UNTIL IT IS FULLY ASSEMBLED, CORRECTLY ADJUSTED AND ALL FUNCTIONS AND CONTROLS ARE FAMILIAR. 9.4 CONNECTING THE CHAINSAW (FIG.8): We recommend to operate the chainsaw in connection with a residual current operated device with a maximum breaking current of 30mA. -
Page 16: Personal Protective Equipment (Ppe)
OPERATION AND USE WARNING: CHAINSAWS POSE A SIGNIFICANT HEALTH FIG.10 AND SAFETY RISK EVEN TO CAREFUL AND TRAINED OPERATORS. 9.6 PERSONAL PROTECTIVE EQUIPMENT (PPE) (FIG.10) Due to the nature of chainsaw, no PPE equipment can provide 100% protection against chainsaw cuts. Equipment specifically designed for use with a chainsaw shall be worn, consisting of;... -
Page 17: Kickback
OPERATION AND USE 9.8 KICKBACK (FIG.13) FIG.13 Definition: Kickback – KICKBACK ZONE Rapid upward and/or backward motion of the chainsaw which can occur when the moving saw chain near the tip of the guide bar contacts an object such as a log or branch. Kickback is the most common hazard associated with chainsaws and can result in serious injuries even fatality. - Page 18 OPERATION AND USE – If unable to safely and satisfactorily resolve these FIG.14 issues, have a certified trained professional carry out the tree felling. – The direction can be changed from that intended by factors such as wind, sloping terrain, tree growth (leaning, heavy limb structure one side and decay) etc.
-
Page 19: Delimbing
OPERATION AND USE 9.9 DELIMBING (FIG.17) FIG.17 Refer to general safety instructions for preparatory and specific warnings. – When removing smaller branches with a single cut, keep the tree between you and saw chain. – For larger limbs make three cuts. The initial cut in the tensioned underside of the limb one third of the way through. -
Page 20: Saw Chain
OPERATION AND USE 9.11 SAW CHAIN FIG.21 – The chainsaw is designed for cutting timber only. Do not allow the saw chain to come into contact with the ground as dirt and soil will dull the saw chain almost immediately. Hard wood will also rapidly dull the saw chain. -
Page 21: Cleaning And Storage
10. MAINTENANCE & PARTS REPLACEMENT 10.1 CLEANING & STORAGE – Clean the unit after each use. Only use a mild detergent and sponge on plastic surfaces. Do not use aggressive cleaning agents. – Store in a safe area out of the reach of children. –... -
Page 22: Troubleshooting
11. TROUBLESHOOTING Problem Probable Cause Remedy Suggested Motor fails to start. 1. Fuse blown. 1. Replace/reset time delay fuse or circuit breaker. 2. RCD tripped. 2. Reset residual current device (RCD). 3. Chain brake engaged. 3. Disengage chain brake. Saw chain does not move or 1. -
Page 23: Explanation Of Symbols/Pictograms
12. EXPLANATION OF SYMBOLS/PICTOGRAMS Do not use in the Single value noise rain or leave marking. (maximum Wear ear outdoors while it is declared A-Weighted protection. raining. sound power level in decibels). Do not use tip of the saw chain to start Wear eye cut. - Page 24 - Sales Fax: (023) 8049 4209 - General Enquiries: (023) 8026 6355 - Service/Warranty Repair Agent For aftersales servicing or warranty repairs, please contact the Draper Tools Helpline for details of an agent in your local area. YOUR DRAPER STOCKIST RDLJ100615...
