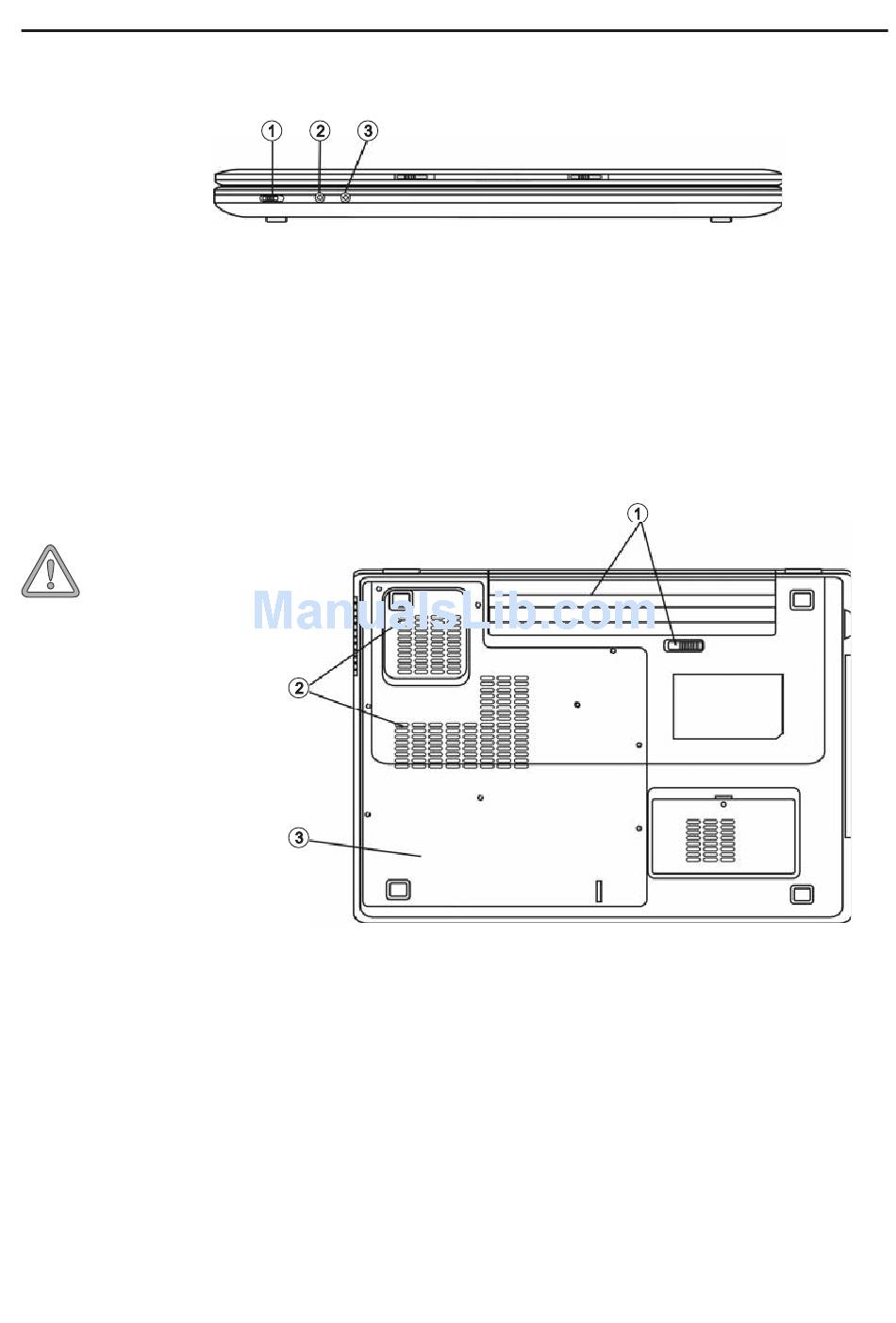

Front View
Underside
All air intake and
ventilation openings
must be kept free from
obstructions at all
times. If not, the device
is liable to overheat.
26
Fig. 7
(1)
WLAN switch
Microphone socket
(2)
(3)
Audio output
Battery slot and battery release
(1)
(2)
Ventilation slots
Cover for WLAN card, RAM, hard disk
(3)
and main processor
Fig. 8
System Overview
