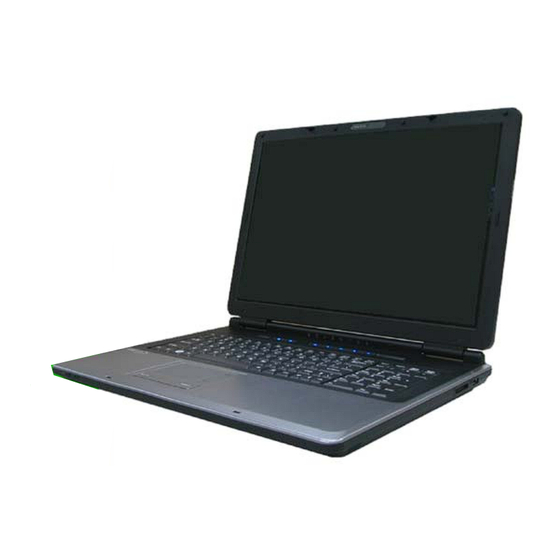

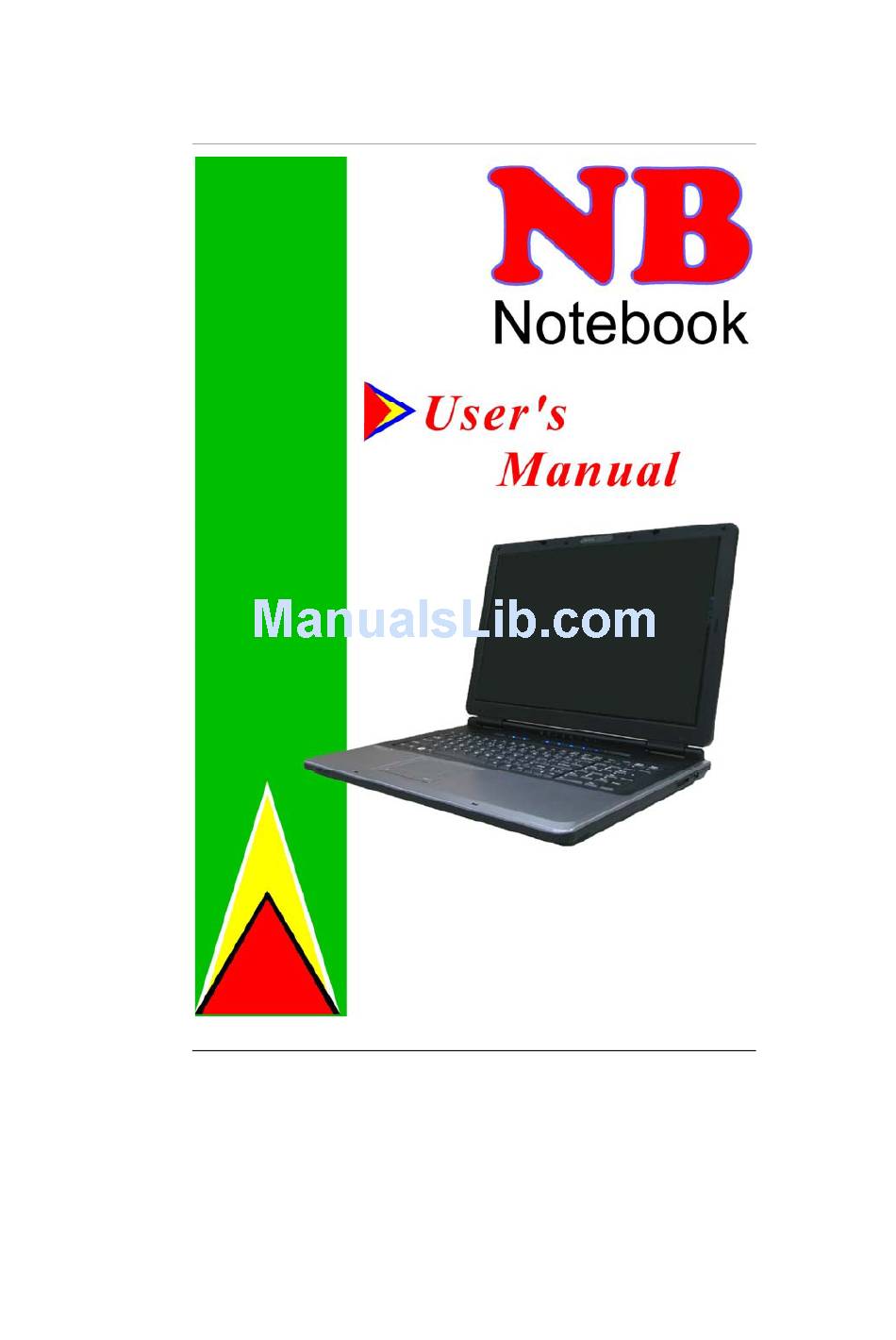

BELINEA NB Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

i

Advertisement

Table of Contents
loading

Related Manuals for BELINEA NB

Summary of Contents for BELINEA NB

  • Page 3 Preface © Copyright 2007 © All Rights Reserved. The information in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer. In no event will the manufacturer be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use the product or documentation, even if...
  • Page 4 • Reorient or relocate the receiving antenna • Increase the separation between the equipment and receiver • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected Consult the dealer or an experienced radio TV technician for help This device complies with Part 15 of the FCC Rules.

  • Page 5: Table Of Contents

    Table of Content ................1 EFORE YOU TART ..........8 ET YOUR COMPUTER ACCLIMATE ITSELF ............8 UMIDITY LARE ..............9 UITABLE PLACE TO WORK ..................11 NTRODUCTION LCD P ..............11 PENING THE ANEL ..................12 RONT LED S ..............13 TATUS NDICATOR ..................14 IGHT ..................15 ..................15 ...................17 OTTOM ................18...
  • Page 6 ............35 ULTIMEDIA OUND YSTEM ..............36 UDIO OLUME ONTROL ................36 UDIO OFTWARE ................36 OUND ECORDING ..............36 LAYING OUND ILES ...........36 XTERNAL PEAKERS AND ICROPHONE ................37 NTERNET ONNECTION BIOS S .................41 UNNING ETUP ....................42 ..................43 ETUP ................47 DVANCED ETUP ....................48 NTEL ..................48 ECURITY .....................49 OWER...
  • Page 7 ..69 HE DISPLAY PANEL IS BLANK WHEN THE SYSTEM IS TURNED ON ............69 HE SCREEN IS DIFFICULT TO READ ..............69 HE SCREEN FLICKERS ......69 HE BUILT IN TOUCH PAD PERFORMS ERRATICALLY -........69 HE BUILT IN KEYBOARD ACCEPTS NO INPUT ....69 HE CHARACTERS ON THE SCREEN REPEAT WHILE TYPE “CMOS C...

  • Page 9: Before You Start

    Conventions of This Manual Use this manual will help you get the most from your notebook computer. • If you are an experienced user of computers and/or Microsoft’s Windows operating systems, you might find it useful to read the Quick Start Guide that comes along with your accessories. •...
  • Page 10 Please disconnect this equipment from AC outlet before cleaning. Don't use liquid or sprayed detergent for cleaning. Use moisture sheet or cloth for cleaning. For pluggable equipment, that the socket-outlet shall be installed near the equipment and shall be easily accessible. Please keep this equipment from humidity.
  • Page 11 selection. The cord set must be approved for the country in which it is used. The appliance coupler must have a configuration for mating with a CEE22/EN6032/IEC 320 appliance inlet. For U.S. and Canada: The cord set must be UL Listed and CSA Certified. The minimum specifications for the flexible cord are (1)No.
  • Page 12 Do not use this product near water, for example, near a bathtub, washbowl, kitchen sink or laundry tub, in a wet basement or near a swimming pool. Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote risk of electric shock from lightning.
  • Page 13 while the power is on as this may result in data loss when the system loses power. 22. The input receptacle is used as the main disconnecting device. 23. Note to CATV System Installer – This reminder provided to call the CATV system installer’s attention to Section 820-93 of the National Electric Code which provide guidelines for proper grounding and in particular, specify that the Coaxial cable shield shall be connected to the grounding system of the...
  • Page 14 Brand bzw. Elektrischen Schlag auslösen. 12. Öffnen Sie niemals das Gerät. Das Gerät darf aus Gründen der elektrischen Sicherheit nur von authorisiertem Servicepersonal geöffnet werden. 13. Wenn folgende Situationen auftreten ist das Gerät vom Stromnetz zu trennen und von einer qualifizierten Servicestelle zu Überprüfung.: Netzlabel oder Netzstecker sind beschädigt.
  • Page 15 Alle Teile des Kabel-Sets müssen entsprechend dem japanischen Dentori Law mit einem „PSE“ or „T”- Symbol markiert sein Die Minimalanforderungen für das Kabel sind .75m ㎡ Leiter. Für andere Länder: Die Zubehörteile des Kabel-Sets müssen das Prüfsiegel derjenigen Stelle, die in dem jeweiligen Land für die Sicherheitsprüfung zuständig ist, tragen.

  • Page 16: Let Your Computer Acclimate Itself

    verloren gehen könnten. 22. Der Netzeingabeanschluss dient als Hauptschalter des Geräts. 23. Hinweis für die CATV-Systeminstallation: Dieser Hinweis dient dazu, die Aufmerksamkeit der CATV-Systemmonteure auf Abschnitt 820-93 des National Electrical Code zu richten, der Richtlinien für die korrekte Erdung enthält und im Besonderen festlegt, dass der Schirm des Koaxialkabels an das Erdungssystem des Gebäudes angeschlossen werden muss, und zwar so nahe wie möglich am Ort des Kabeleingangs...
  • Page 17 Suitable place to work Your computer will run well wherever you’re comfortable but extremes of temperature and humidity can be challenging to your system’s parts. There are some things you can tolerate that the computer can’t – things like static electricity, dust, water, steam and oil.

  • Page 19: Introduction

    Welcome to the Notebook PC Congratulations on your purchase of the Notebook PC. Your Notebook features the latest advances in portable computing technology. The Notebook’s modular design provides maximum expandability without compromising portability. Getting to Know Your Computer Opening the LCD Panel To avoid damage to the display panel: 1.

  • Page 20: Front View

    Front View Do not place any heavy objects on the top of notebook. This may damage the display LCD Latch Built-in Camera (optional) LCD Display Music Button Mute Button Power / Suspend Button Press 1 Sec. to enter the suspend mode. Press 4 Sec.

  • Page 21: Led Status Indicator

    Play Button Advance Button Stop Button Power Management Button LED Status Indicator LED Status Indicator System & Power Status Indicators Indication Symbol Green light indicates the system is ON. Blinking green light indicates the notebook is in suspend mode. Green light indicates the WLAN module is active. Persistent green light indicates the Suspend Mode is enabled.

  • Page 22: Right View

    Right View Card Reader USB2.0 Port...

  • Page 23: Left View

    Left View Microphone Jack Headphone/SPDIF Jack ExpressCard (New Card) Slot The slot is where Express Card (Type 54) is inserted. ExpressCard Type 54 allows insertion of 54mm and 34mm cards. ExpressCard integrates both the PCI-Express bus technology and USB2.0 standards. Optical Drive and Disk Eject Button and Manual Eject Key Hole Rear View...
  • Page 24 Kensington Lock Ventilation Opening External CRT Port S-Video output Port HDMI Port DC-In Connector 1394 Port Modem Port Always disconnect all telephone lines from the wall outlet before servicing or disassembling this equipment. To reduce the risk of fire use only No. 26 AWG or larger telecommunication line cord.

  • Page 25: Bottom View

    Bottom View Battery Compartment Battery Release Latch Expansion Compartment HDD Compartment...

  • Page 26: Started

    Connecting to a Power Source Connecting the AC Adapter A universal AC adapter is provided to supply your computer with power and also charge the computer’s battery pack. The adapter’s AC input voltage can range anywhere from 100 to 240 volts, covering the standard voltages available in almost every country.
  • Page 27 Never turn off or reset your Notebook while the hard disk is in use and the CD-ROM status icon is lit; doing so can result in loss or destruction of your data. Always wait at least 5 seconds after turning off your Notebook before turning it back on;...

  • Page 28: To Remove The Battery Pack

    Explosionsgefahr bei unsachgernazen Austausch der Batterie. Ersatz nur durch denselben oder einem vom Hersteller empfohlenem ahnlichen Typ. Entsorgung gebrauchter Batterien navh Angaben des Herstellers. Installing and Removing the Battery Pack To Remove the Battery Pack: To Install the Battery Pack:...
  • Page 29 Charging the Battery Pack The installed battery pack charges automatically any time the computer is connected to the AC adapter and an external power source. It is a good idea to occasionally discharge the battery pack fully to preserve its operating performance.

  • Page 31: Using The Notebookc

    Adjusting the LCD Screen Display The LCD screen display can be adjusted by the following key combinations. KEYS FUNCTIONS Fn + F9 Increases the brightness level. Fn + F8 Decreases the brightness level. Fn + F10 Changes Display Mode: LCD-only, CRT-only, HDMI-only, and LCD&CRT.

  • Page 32: Function Keys

    • HDMI only HDMI (High-Definition Multimedia Interface) is an all-digital audio/video interface capable of transmitting uncompressed streams. • Simultaneous display of the LCD screen and CRT monitor You can switch between these display configurations by pressing the key combination [Fn] + [F10]. For information on connecting an external display, please refer to Chapter Four.

  • Page 33: Features Of The Dvd D

    • Make sure the TouchPad does not come into contact with dirt, liquids or grease. • Do not touch the TouchPad if your fingers are dirty. • Do not rest heavy objects on the TouchPad or the TouchPad buttons. You can use the TouchPad with Microsoft Windows as well as non- Windows applications.

  • Page 34: Loading A Disc

    • Do not bend or drop the discs. Loading a Disc To play a CD disc, follow the instructions listed below. Push the DVD Dual (Double Layer ) eject button on the CD drive door. Gently pull the tray all the way out. Carefully lift the CD disc by the edges and make sure the shiny surface is face down (the side with no writing on it).

  • Page 35: Preparing The Battery Pack For Use

    See Battery Status later in this section for a description and explanation of the Windows Battery icon. Charging the battery takes about 3 hours to charge when the system is in off state. If possible, always charge the battery completely. Removing the Battery Pack To remove the battery pack from its compartment, please refer to Chapter 3, Inserting and Removing the Battery Pack.

  • Page 36: Automatic Battery Pack

    When the battery is fully charged, the battery charge indicator becomes green. If system runs at heavy loading or in a high temperature environment, the battery may not be fully charged. You need to continue to charge it with the AC adapter plugged in until the charging LED turns green.

  • Page 37: Small Battery For Ther

    Small Battery for the Real Time Clock There is a small built-in battery pack that supplies power to the system in order to maintain certain system information while the power is off. If the Notebook is left without a power source for long period of time, this battery will be exhausted and system information will be lost.

  • Page 38: Help Windows

    Using the Windows Help Windows For Windows Vista help, click Start Help and Support icon will open the dialog box. Desktop Desktop may vary differently on the software installed in your notebook with different or additional shortcuts.
  • Page 39 Recycle Bin Used for storing deleted files in case you want to recover and save it in your system. The files will only be deleted from the Recycle Bin permanently only if you empty it by right clicking your mouse and select the “Empty Recycle Bin”.
  • Page 40 Notification The icons that appear here are for quick access to some programs and computer functions that you frequently used. To prevent Windows Vista from hiding icons: From an empty spot on the Taskbar, right click your mouse and select the Properties, remove the checked mark on the Auto-hide the taskbar.

  • Page 43: Desktop Operation

    Your notebook is capable of providing you with efficient and productive mobile computing, it also has the speed and capacity to service as a desktop system. This chapter discusses those functions of your notebook that are typical of desktop systems. Audio The Multimedia Sound System The Notebook’s built-in audio capabilities allow you to take...

  • Page 44: Audio Volume Control

    Audio Volume Control The Notebook is equipped with hot-key volume controls: Pressing the [Fn]+[F4] hot-key combination decreases the audio output volume, press the [Fn]+[F5] hot-key combination increases the audio output volume. Audio Software Your notebook comes equipped with an integrated sound system capable of providing you with quality audio sound through the built- in speakers or through external speakers connected via the system ports.

  • Page 45: Internet Connection

    There are numerous ways to connect to the Internet. This may vary from the user’s working environment as well as system specifications. • Using a modem and a telephone line (Optional) • Using a wired LAN • Using a wireless LAN Using a modem for Connection to Internet •...
  • Page 46 Using a wired LAN for Connection to Internet For you connect to the Internet, a wired LAN environment normally uses the company’s LAN or a broadband modem.
  • Page 47 Using Wireless LAN Network for Connection to Internet Bluetooth Connection (Optional) Bluetooth is a developing, world wide, open, short-range radio specification focused on communication between the Internet and Net devices, plus it defines communication protocols between devices and computers. It connect wirelessly to your world: In home, at work, in motion and at play.
  • Page 48 This will be the display that will appear on your screen. If the system detects any other devices, it will be shown this way:...

  • Page 49: Running Bios Setup

    The Setup Utility is a hardware configuration program built into your computer’s BIOS (Basic Input/Output System). It runs and maintains a variety of hardware functions. It is menu-driven software, which allows you to easily configure and change the settings. The BIOS contains manufacture’s default settings for the computer’s standard operations.

  • Page 50: Info

    BIOS Action Keys Function Command Description Leaves a sub-menu to return to the Exit previous menu OR exits the BIOS setup while saving changes. Enter Go to Sub Screen Shows the Sub Menu General Help Shows the Help Screen Saves changes and reboots the Save and Exit computer.

  • Page 51: Main Setup

    Main Setup Under this menu, you may change time/date and view basic processor and system memory information.

  • Page 55: Advanced Setup

    Advanced Setup...

  • Page 56: Intel

    Intel Security...

  • Page 57: Power

    Power Boot Setup...

  • Page 58: Exit Setup

    Exit Setup...

  • Page 59: Vga Utilities

    After you have restarted Windows, right click your mouse button to display this small window in your screen. Click on the “NVidia Control Panel” item to enter the “NVidia Control Panel” display window.
  • Page 60 3D Settings This application allows you to adjust the setting of the image that will appear on your screen.
  • Page 61 Display This application allows you to change the resolution and the display configuration of your system. This allows you to change the color setting on the image that will appear on your screen and reduce flickering.
  • Page 62 This application allows you to specify the image quality of the image when you are using multiple displays.
  • Page 63 Video & Television This application allows you to control the color components of the video image.
  • Page 64 It also allows you to adjust the video overlay effects.

  • Page 67: Video Conferencing (Optional )

    This application offers video conferencing capabilities to work and communicate in real-time with one or more participants through streaming video, from any location. You can also click on the “BisonCam” icon on the Windows screen display to run the capture application. If it is disabled, press on the function keys of Fn+F7 to open the application.

  • Page 68: The File Menu Commands And Buttons

    Using Commands and Buttons The File Menu Commands and Buttons • Set Capture File - Set to save directory and video file name. • Allocate File Space - Allocate free space for video file. • Save Captured Video As - Saved as video file after capturing. •...
  • Page 69 • Environment - set camera work environment. • Frequency - set the frequency. • Rotation - set to horizontal rotation or vertical rotation. • Reset - reset all settings in this page to default.
  • Page 70 • Brightness/Contrast/Hue/Saturation/Sharpness/Gamm a/White Balance/Backlight Comp - To adjust video settings and show value. • Default - Reset all settings in this page to default.
  • Page 71 • Exposure - De-select the check mark on the box if you want to change the value. • Frame Rate - This function is to set video frame rate. If your utility rate of CPU is too high, you can choose the low frame rate to reduce the CPU’s utility rate.

  • Page 72: Capture Menu Commands And Buttons

    Capture Menu Commands and Buttons • Start Capture - start capture video stream. • Stop Capture - stop capture video stream. • Set Frame Rate - set frame rate while capturing a video. • Set Time Limit - set time limit of capture stream.

  • Page 73: Troubleshooting

    Your computer has been fully tested and complies with the system specifications before shipping. However, incorrect operations and/or mishandling may cause problems. This chapter provides a reference for identifying and correcting common hardware and software problems that you may encounter. When you encounter a problem, you should first try to go through the recommendations in this chapter.

  • Page 74: No Speaker Output

    • Be sure all the device drivers are installed properly. For example, without the audio driver properly installed, the speakers and microphone will not work. • If external devices such as USB camera, scanner, printer do not function correctly when connected to the system, it is usually the device’s own problem.

  • Page 75: The Hard Disk Drive Does Not Work Or Is Not Recognizable

    After Click OK button, the recording volume control panel will appear. • Go to [Start > Settings > Control Panel] and double-click the Multimedia icon (or Sounds and Audio Devices icon). In the Volume or Audio page, make sure that Realtek AC97 Audio is the default recording device.

  • Page 76: The Hard Disk Takes Longer To Read A File

    The hard disk takes longer to read a file • If you have been using the drive for a period, the files may be fragmented. Go to [Start > Programs > Accessories > System Tools > Disk Defragmenter] to perform a disk defragmentation. This operation may take a while.

  • Page 77: The Display Panel Is Blank When The System Is Turned On

    Display Problems The display panel is blank when the system is turned on • Make sure the computer is not in the Standby or Hibernate suspend modes. The display is turned off to conserve energy in these modes. The screen is difficult to read •...

  • Page 78: A Message "Cmos Checksum Failure" Displays During The Booting Process Or The Time (Clock) Resets When Booting

    box shows up with the adjustable settings for the keyboard. CMOS Battery Problem A message “CMOS Checksum Failure” displays during the booting process or the time (clock) resets when booting • Try to reboot the system. • If the message “CMOS Checksum Failure” appears during the booting procedure even after rebooting, it may indicate failure of the CMOS battery.

  • Page 79: The Pc Card Cannot Be Recognized

    • Consult the card’s manual or contact the vendor for trouble- shooting. The PC card cannot be recognized • Windows NT4.0 does not support PCMCIA (PC Card) function. You may need an external program for this. • Make sure the card is fully inserted; the outer end of the card should be even with the edge of the computer.

  • Page 80: The Usb Device Does Not Work

    system is accessing slow-speed devices such the floppy disk drive. • You may be running too many applications. Try to close some applications or increase system memory for higher performance. • The processor may have been overheated due to the system’s inability to regulate its internal heat.

  • Page 81: Specification

    Operating System Supports Windows Vista Home/Basic Premium Windows Vista Ultimate and Professional workable Linux Knoppix bootable Intel Merom Dual Core Processor, T7500/T7300, FSB 800 MHz, 4MB L2 Cache Intel Merom Dual Core Processor, T7100, FSB 800 MHz, 2MB L2 Cache Memory DDRII 667 DDRII RAM socket * 2...
  • Page 82 S-Video Display on a PAL or NTSC TV Support for Macrovision 7.1 copy protection standard-a fully programmable timing capability LAN Controller Giga LAN PCI-E interface RAID Controller RAID 0/1 Support Support RAID 0/1 migration Supports 2-ports 3.0Gbps SATAII interface External-SATA SATA 2.0 Hot-Plug Support Modem...
  • Page 83 Optical Device DVD Dual (Double Layer ), BluRay and HD DVD support Support PATA interface only Card reader Support SD/MMC/MS/MS Pro/XD Memory Card USB2.0 interface Driver support Battery Pack 6 Cells Pack (3S2P);11.1V/4400mAH 8 Cells Pack (4S2P);14.8V/4400Mah AC-Adapter Automatics Voltage adjustment between 100 and 240VAC 50/60Hz 90 Watts (2pin) Li-Shin type of LSE0202D2090...
  • Page 84 Toshiba SW stack support Chip antenna Performance Min. 5M, Max. 10M open side TV tuner USB interface Mini card type Physical Outline Dimension: 408x291x35.6 ~ 37.5mm Weight: 4.0Kg Certification Telecom Safety...
