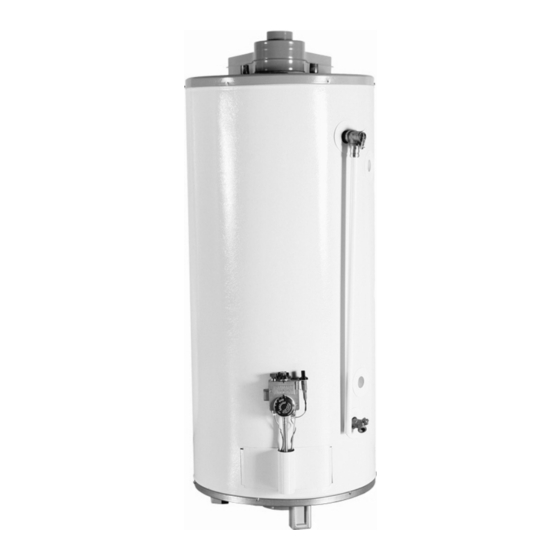

DIRECT VENT GAS FIRED WATER HEATER
WARNING:
Improper installation, adjustment, alter-
ation, service, or maintenance can cause
injury or property damage. Refer to this
manual. For assistance or additional infor-
mation, consult a qualified installer, serv-
ice agency, or the gas utility.
FOR YOUR SAFETY
• Do not store or use gasoline or other
flammable vapours and liquids in the
vicinity of this or any other appliance.
• Installation and service must be per-
formed by a qualified installer, service
agency or the gas utility.
WARNING:
If the information in these instructions is
not followed exactly, a fire or explosion
may result causing property damage, per-
sonal injury or death.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do
not use any phone in your building.
• Immediately call your gas supplier from
a neighbor's phone. Follow the gas
supplier's instructions.
• If you cannot reach your gas supplier,
call the fire department.
GSW Water Heating is a division of
A. O. Smith Enterprises Ltd.
INSTALLATION AND

OPERATING INSTRUCTIONS

Read these instructions thoroughly before starting
PART NO. 61009 REV. C (09-03)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 61009 REV. C (09-03) and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GSW 61009 REV. C (09-03)

Summary of Contents for GSW 61009 REV. C (09-03)

  • Page 1: Operating Instructions

    Follow the gas supplier’s instructions. • If you cannot reach your gas supplier, call the fire department. GSW Water Heating is a division of A. O. Smith Enterprises Ltd. INSTALLATION AND OPERATING INSTRUCTIONS Read these instructions thoroughly before starting...

  • Page 2: Table Of Contents

    II) SAFETY........3 III) INSTALLATION ......5 Unpacking the Water Heater Location...

  • Page 3: I) Introduction

    The warranty on this water heater is in effect only when the water heater is installed and operated in accordance with these instructions. A data plate identifying your water heater can be found above the gas control/thermostat.

  • Page 4: Safety Warning (Flammable Vapours)

    (e.g., flue gases), in using fuel-burning appliances such as water heaters. Areas that may not be suitable for water heater installation include those where flammable liquids, gasoline, solvents, adhe- sives etc. are stored, or where engine-driven equipment or vehicles are stored, operated or repaired.

  • Page 5: Iii) Installation

    Completely read all instructions before attempting to assemble and install this product. If you observe damage to the water heater or any of its com- ponents, DO NOT ASSEMBLE OR INSTALL IT OR MAKE ANY ATTEMPT TO FIX THE DAMAGED PART(S). Contact the place of purchase for further instructions.

  • Page 6: Venting

    EXPANSION TANK HOT WATER OUTLET UPPER AIR INLET BOX REAR AIR TUBE GAS SUPPLY MANUAL SHUT-OFF VALVE GROUND-JOINT UNION E N T S E D I M T R A P n . ) m ( 6 i 1 5 2 m LOWER AIR INLET BOX Figure 2A - Installation Components.

  • Page 7: Vent Connections

    MAX. 2.28m (4 in.) 76mm (3 in.) Figure 3B - Moving Water Heater To Its Final Installed Location. Move the water heater to its final installed location. Make certain clearances from combustible material are observed. The maximum distance from center of water heater to out-...

  • Page 8: Offset Vent Pipe Arrangement

    Make sure this connection is tight and leak proof. *The sealant between 80mm (3-1/8 in.) corrugated pipe and water heater’s flue tube reducer must be hi-temp red sili- cone or other material suitable for 315°C (600°F) continu- ous service.

  • Page 9: High Rise Vent Pipe Arrangement

    2.28m (90 in.), it is a high rise vent pipe arrangement. In this case, the minimum distance “D” from the center of the water heater to the outside wall surface is 560mm (22 in.), and the maximum height of “H” is 3.66m (12 ft.).

  • Page 10: Temperature & Pressure Relief Valve

    TURE OR WATER PRESSURE. Pressure rating of the valve must not exceed the working pressure shown on the rating plate of the water heater. The discharge capacity must be equal to or greater than the input to the water heater. Temperature and Pressure Relief valve piping must terminate 152mm (6 in.), no more than...

  • Page 11: Iv) Operating Instructions

    ROBERTSHAW 110R TEMPERATURE GAS CONTROL DIAL 1. STOP! Read all safety labels on the water heater before operation. 2. Remove the outer door. 3. Turn the temperature dial counter-clockwise 4. Turn gas control knob clockwise 5. To clear any gas that may have accumulated wait ten (10) minutes. If you then smell gas, STOP! Follow instruction "B"...

  • Page 12: Lighting Instructions (White-Rodgers 37C)

    If you smell gas, STOP! Follow “B” in the safety information above on this label. If you don’t smell gas, go to the next step. 7. Make sure the water heater is filled with water. 8. Turn gas control knob counterclockwise 9.

  • Page 13: Special Note On Propane Fuel

    Please consult a licensed plumber or plumbing authority. Exposure to water IMPORTANT: Should the water heater be subjected to flooding, fire, or other unusual condition, turn off gas at the manual gas shut-off valve and water at the inlet valve to the heater. Do not put the heater in operation until it has been thorough- ly checked by a qualified gas technician.

  • Page 14: Maintenance Instructions

    See also section on T&P valve in the installation section. The Temperature and Pressure Relief Valve (T&P valve) is a part of the safety equipment on the water heater. In order to keep the T&P valve functioning properly, operate the valve at least once a year by lifting the manual lever until water discharges from the overflow pipe.

  • Page 15: Vi) Combo Heating

    VI) COMBO HEATING When using this water heater in the application of a combi- nation space and potable water heating system, be sure to follow instructions provided with the water heater and the manual shipped with the air handler. NOTE the following warnings: 1.

  • Page 16: Who Is Covered

    This warranty is not transferable. This warranty is reduced to one year if the water heater is used in a commercial, or industrial application, or if the water heater is used to supply more than one dwelling unit.
  • Page 17 The water heater is installed outdoors (this water heater is intended only for indoor installation); or n. The water heater is converted, or is attempted to be converted, from one voltage or wattage to another, if an elec- tric water heater, or from one type gas to another, if a gas water heater; or o.
