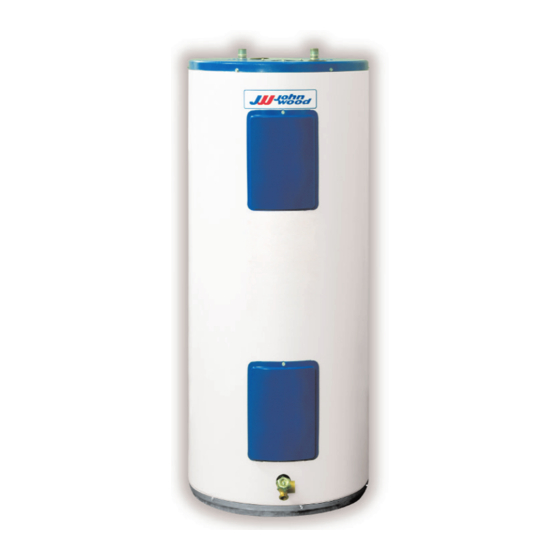

STORAGE BOOSTER TANKS
INSTALLATION AND OPERATING INSTRUCTIONS
Read and understand these instructions thoroughly before starting
TABLE OF CONTENTS
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
PLEASE RETAIN THESE INSTRUCTIONS IN A
SAFE LOCATION FOR FUTURE REFERENCE
WARNING:
Improper installation, adjustment, alter-
ation, service, or maintenance can cause
injury or property damage. Refer to this
manual. For assistance or additional infor-
mation, consult a qualified installer, serv-
ice agency, or the electric utility.
FOR YOUR SAFETY
• Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
• Installation and service must be per-
formed by a qualified installer, service
agency or the electric utility.
WARNING:
If the information in these instructions is
not followed exactly, a fire or explosion
may result causing property damage, per-
sonal injury or death.
GSW Water Heating is a division of GSW Water Products Inc.
GSW WATER HEATING
599 Hill Street West
Fergus, ON, Canada N1M 2X1
PART NO. 71772 C (05-02)
Advertisement
Table of Contents
Related Manuals for GSW WATER HEATING
Summary of Contents for GSW WATER HEATING
-
Page 1: Table Of Contents
If the information in these instructions is not followed exactly, a fire or explosion may result causing property damage, per- sonal injury or death. GSW Water Heating is a division of GSW Water Products Inc. PART NO. 71772 C (05-02) -
Page 2: I) Introduction
40, 50 or 80 gallon sizes, have been designed to supply hot water for domestic use when combined with a tankless coil boiler or other water heating source. Each tank is equipped with an adjustable thermostat, pre-wired and ready for connection to a circulator pump (not supplied). - Page 3 It is desirable to have a floor drain nearby to permit easy draining if necessary. WARNING The water heating source piping and components con- nected to the tank must be suitable for potable water use. TOXIC chemicals such as used for boiler treatment must not be introduced into the tank.
-
Page 4: Electrical Wiring
tem, check valves must be installed to prevent the circulator from pumping hot water into another tank and overheating 8. The use of a pressure regulator is optional, but recom- mended when the cold supply pressure is over 80 psi. Reducing the inlet pressure to 45-60 psi will reduce probability of relief valve discharge by thermal expan- sion. -
Page 5: Iv) Operation
1. Follow boiler or heat source installation and operating instructions. 2. Fill the tank (see “FILLING” section). 3. The boiler or water heating source should be set to pro- vide at least 11°C (20°F) higher water temperature than the temperature setting of the storage tank 4. -
Page 6: Anode Maintenance
Anode Maintenance 1. Turn "OFF" the electrical supply to the tank. 2. Close the cold water supply valve. 3. Open a nearby hot water faucet served by the system to depressurize the system. 4. Connect a hose to the drain valve and drain 22 litres (6 gal.) as directed in the “Draining and Flushing”... -
Page 7: Warranty
GSW will not assume any expense or liability for unauthorized returns, nor repairs made by a person who has not been authorized by GSW or one of its authorized dealers. GSW Units/parts must be replaced with GSW or John Wood products to be eligible for Warranty.
