Summary of Contents for Goldline Aqua Pod
-

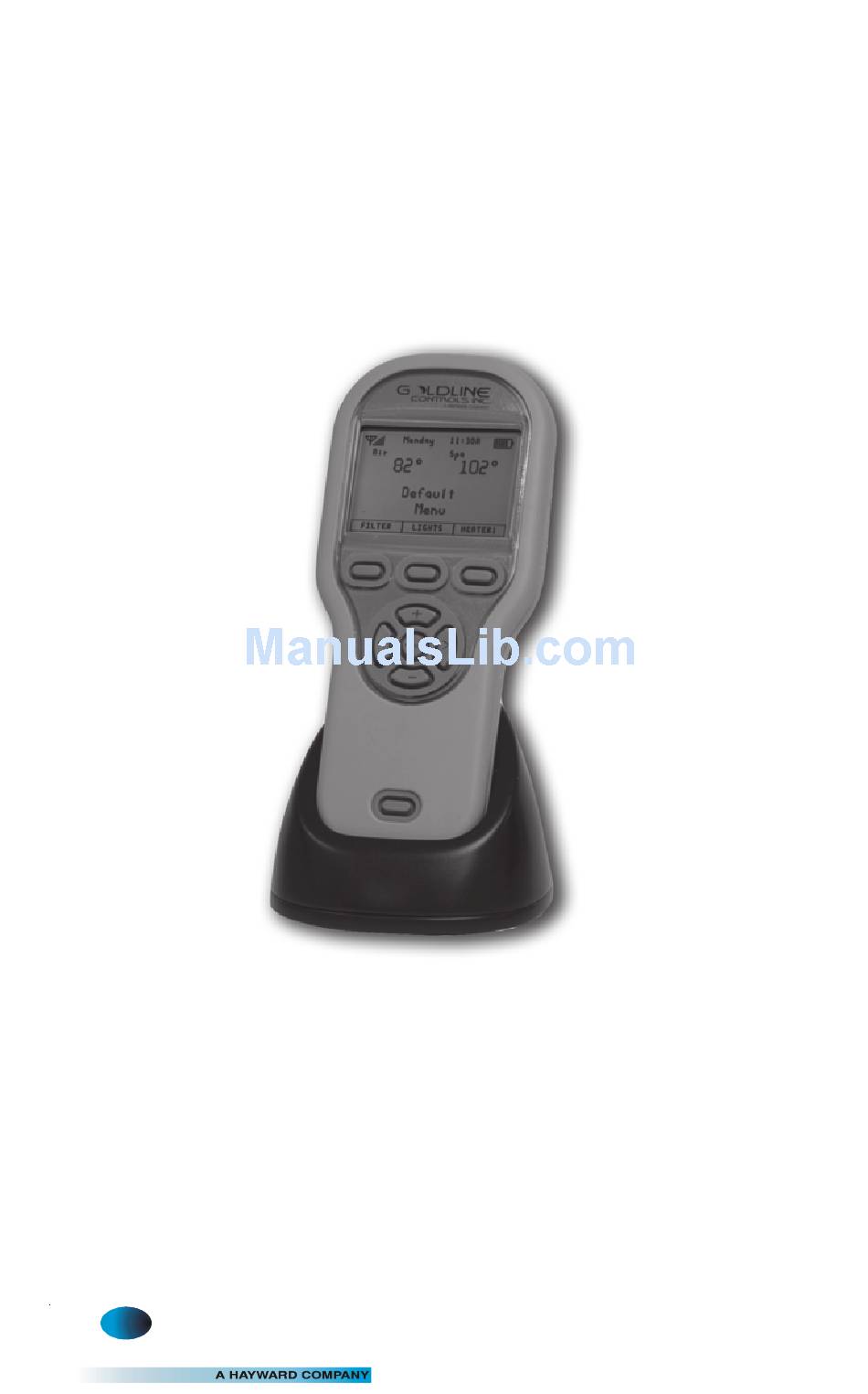

Page 1: Operation Manual

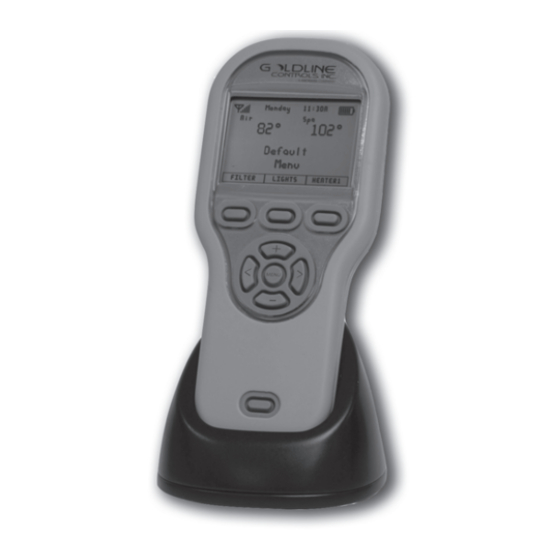

Aqua Pod Handheld Remote Control ® Aqua Logic Aqua Logic Aqua Logic Aqua Logic Aqua Logic Automation and Chlorination Operation Manual LINE www.goldlinecontrols.com ON TROLS 888-921-7665... -
Page 2: Installation
The Aqua Pod uses a rechargeable built-in battery pack which will require an initial charge when you first receive the unit. Charge the Aqua Pod for at least 5 hours before attempting to use it without the charger. Note that the Aqua Pod can be used normally while connected to the charger. - Page 3 Charge the Aqua Pod at temperatures between 32ºF and 113ºF (0º - 45ºC). The Aqua Pod can be used while in the stand no matter what state the battery is in. A fully charged battery will provide about 300 one- minute uses under typical conditions.
-
Page 4: Display
The Aqua Pod must be used within 200 ft. (assuming the signal will have to travel through walls) or 400 ft. (line of sight) from the Base Station which is typically mounted on the Aqua Logic main control unit at the pool equipment pad. -
Page 5: Pushbuttons
The Charging Indicator will display when the Aqua Pod's battery is charging. This occurs when the Aqua Pod is sitting in the charging stand and the stand is plugged into the wall. During charging, the battery bars will move from left to right. When the battery is fully charged, the Charging Indicator will stop moving and show all bars. -
Page 6: Backlight
Plus (AQL-PLUS) using software revision r2.60. Aqua Pod Operation The Aqua Pod will control and program the Aqua Logic in the same manner as the local keypad/display except for the differences described below. Complete instruc- tions on how to program and view/change settings are available in the Aqua Logic Installation and Operation manuals. - Page 7 Refer to the diagram below for more information. Softkey Set Mapping After entering the Softkey Set Mapping menu, refer to the diagram below for mapping information. After exiting the Softkey Set Mapping menu, the Aqua Pod will return to normal operation. Softkey currently being mapped blinks.
-
Page 8: Operating Status
Shutting down to save battery power When not in the charging stand, the Aqua Pod will briefly show this display and go into “sleep” mode after one minute if no buttons are pressed. This mode conserves the battery power while the remote is not in use. While asleep, the display will be off. -
Page 9: Troubleshooting
If the display/keypad located on the main unit is working correctly, check that there is battery power to the Aqua Pod. Plug the charging stand into an active 120VAC outlet and insert the Aqua Pod. The display should activate and Aqua Pod should function normally. - Page 10 12. "Refreshing Display" continuously displayed: If the Aqua Logic's power is off, the Aqua Pod will display this message. In this case, returning power to the Aqua Logic or "reteaching" (see Installation instruc- tions) the Aqua Pod will correct the problem.
-
Page 11: Warranty Exclusions
If a product is defective in workmanship or materials and is removed and returned freight prepaid within one (1) year after the date of the initial system installation, Goldline will, at its option, either repair or replace the defective product and return it freight prepaid. -
Page 12: Fcc Statement
(2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by Goldline Controls could void the user’s authority to operate this equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
