Summary of Contents for LENCO Xemio-6531
-
Page 1: Media Player

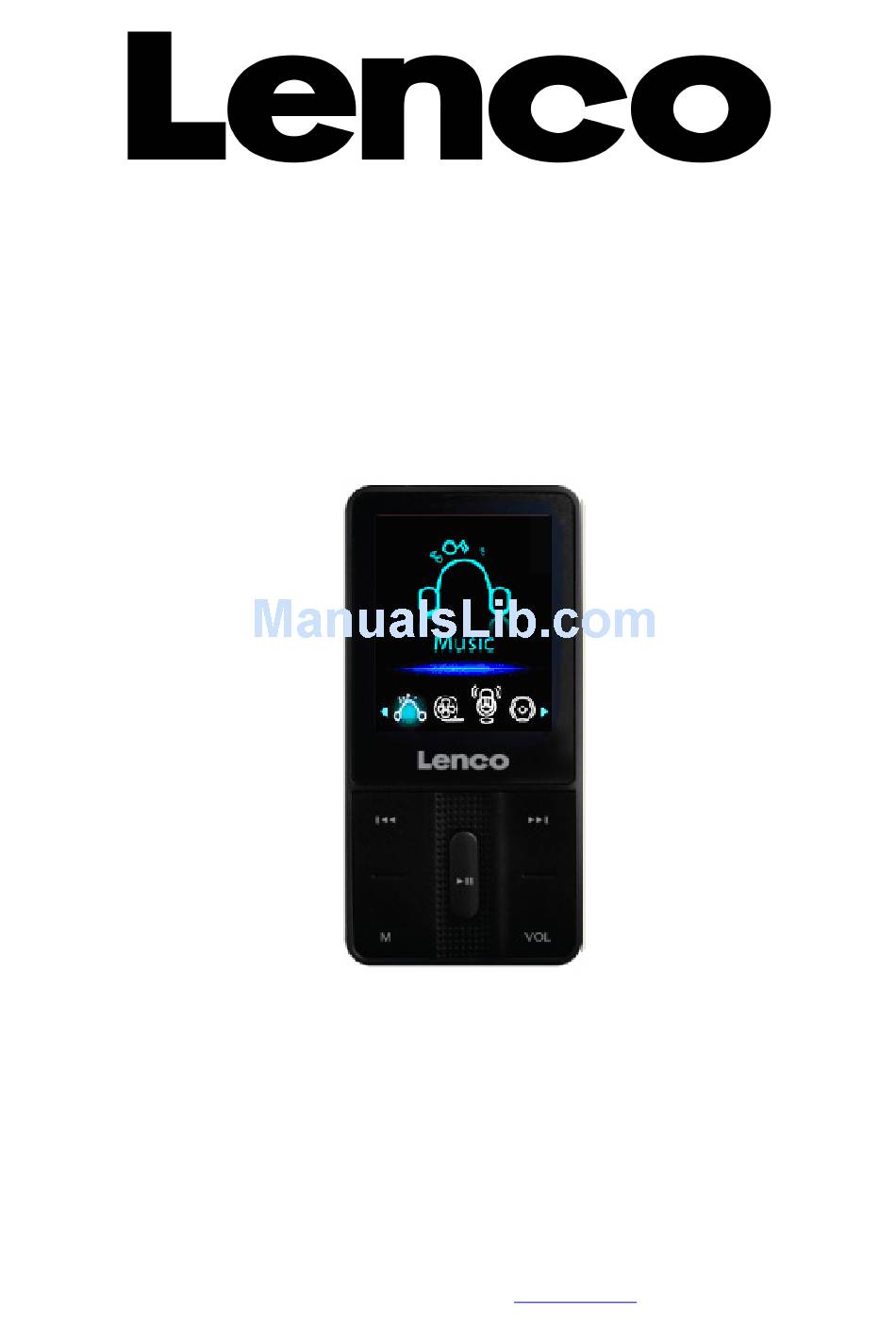

USER’S MANUAL Xemio-6531 Media Player For information and support, www.lenco.eu... -
Page 2: Safety Warnings
Lenco suggests retaining the packaging in case for future transport of the product. If at any time in the future you should need to dispose of this product please note that: All batteries and accumulators need to be removed from this product (Removal of Waste Batteries and Accumulators). - Page 3 Get to know the controls on Player Item Description Item Description (Previous / Fast-Rewind / VOL-) Microphone (Mono) (Next / Fast-Forward / VOL+) Earphone Output Jack M (Menu / Enter / Select) USB Mini Connector (Play / Pause / Standby ON - OFF) Micro SD Memory Card Slot TFT LCD Display VOL (Volume Control)
- Page 4 Note: Player continues to use battery power after it’s been turned off, if unit isn’t used for a while, the battery might need to be charged. Charging the Battery: You can charge the player battery in two ways: Connect player to your computer. Or, Use the USB power charger.
- Page 5 To Connecting Player To connect player to your computer, plug the connector of USB Cable into a USB port on your computer, and connect the other end to player, then the “Connect” screen appear for view. Now the player is ready for media files transfer with your computer and the battery is charging.
- Page 6 (If Music chooses) (If Movie chooses) (If Record chooses) (If Play chooses) (If Picture chooses) (If Text chooses) (If Game chooses) (If Setting chooses) Use Setup Menu You might need to set date & time or change some default setting as you desired in setup sub menu before you start to use the player.
- Page 7 To change “LCD set” You can set the backlight to illuminate the screen for a certain amount of time as you desired or make the backlight to always ON when every time you turn ON the player. To change LCD backlight, choose “LCD set” > choose “Dark mode”, a level bar with number appear then chose “0 (always On) / 5 / 10 / 15 / 20 / 25 / 30 / 35 / 40 / 45 / 50 seconds”...
- Page 8 device. However, you can format the device or memory card by the following method but all data will be losses. Choose “Format Device” then choose “Format Disk / Format Card” by using M and buttons, and then choose OK to process or choose Cancel to exit and back to setup menu. To View “Firmware Version”...
- Page 9 Use Fast-Forward or Fast-Backward Press and hold button to use fast-forward Press and hold button to use fast-backward. Adjust volume level In music playing , press “VOL” button, a change volume control screen appears, then press buttons to adjust volume levels to down / up ( 0 – 40). Wait for 6 –...
- Page 10 screen for few seconds. Exit Select Exit to back to music now playing screen. Use Music Submenu in Music Playing Mode You might need to do some changes for music playing, such as repeat, EQ settings for music files… etc. To change setting: To Set Repeat In music playing mode, press M button, a Music Submenu appear, then choose “Repeat”, then choose “Normal / Repeat one / Folder / Repeat folder / Repeat all / Random / Intro”...
- Page 11 stop according the selected number of time. Exit Select Exit to back to music now playing screen. Use Movie Menu To Play Movie From Main Menu, choose “Movie” by using and M button, a “Movie Now Playing” screen appears to use. In Movie Now Playing”...
- Page 12 file that you want to delete by using buttons. Once file is selected, press M button and choose “Yes” to confirm or “No” to cancel. Delete All In movie submenu screen, choose “Delete all” then selects “Yes / No” by using button.
- Page 13 supported. Run “AMV Video Converter”, click to choose the folder where to save the AMV files, and then click to select the folder where the original files are. The original file will show in the file window once selected. Select with highlight the unprocessed AMV files in the file window, the icon will be highlighted into .
- Page 14 converted AMV files to the media player. Note: Only pixels in 160x120 can be supported. 11. Use Record Menu You can use the player as a Voice Recorder and recording voice memos using the built-in microphone. To Start Recording Voice Memo From main menu, choose “Record”...
- Page 15 Record Type In record submenu, choose “Record type”, then choose “32K BPS / 64K BPS / 128K BPS / 256K BPS” values as you desired by using and M buttons. 13. Use Voice Menu For playback and manage the recorded voice memos file. From main menu, choose “Voice”...
- Page 16 In Voice Now Playing screen, press button to pause / stop the playing file, if in playing mode, then press M button to call up the voice submenu. In Voice submenu screen, choose “Local folder” a list menu appear, and then select folder and / or choose a voice file by using and M button.
- Page 17 Time and Replay Gap have mentioned in below items. To create another A – B distance of track to repeat, press button again and then again. a new created A – B distance of track is repeating. To cancel the repeat A – B function, press the M button. Or press button to pause.
- Page 18 In photo submenu, choose “Playback set” and then choose “Manual play”. However, you need to use button to browse next / previous photo in photo playing mode when Manual Play is selected. Choose “Auto play”, a setting menu appear, then choose “2 / 3 / 4 / 5 / 5 / 6 / 7 / 8 / 9 / 10 second(s)”...
- Page 19 In eBook Submenu, choose “Local folder” a list menu appear, and then choose folder and file by using button. Once file is selected, press M button then button to read. Playback Set In eBook Submenu, choose “Playback set” and then choose “Manual play”. You need to use button to change next / previous page for reading when Manual Play is selected.
- Page 20 up eBook submenu. Choose “Bookmark Add” by using button and then press M button, the pages is saved into bookmark and go back to current reading page automatically. Exit Select Exit for back to eBook list menu screen. 21. Use Memory Card Slot This player allows you to play those support media files from your memory card (T-Flash).
- Page 21 Download of music files fails. * Check whether USB cable is damaged and is connected properly. * Check whether driver is installed correctly. * Check whether the player’s memory is in full. 24. Specification Dimension 80.5 mm (H) x 40.5 mm (W) x 9mm (D) Weight 1.8 Inches, Resolution (RGB)128 x 160 PC connection...
