Summary of Contents for LENCO Xemio-656
-

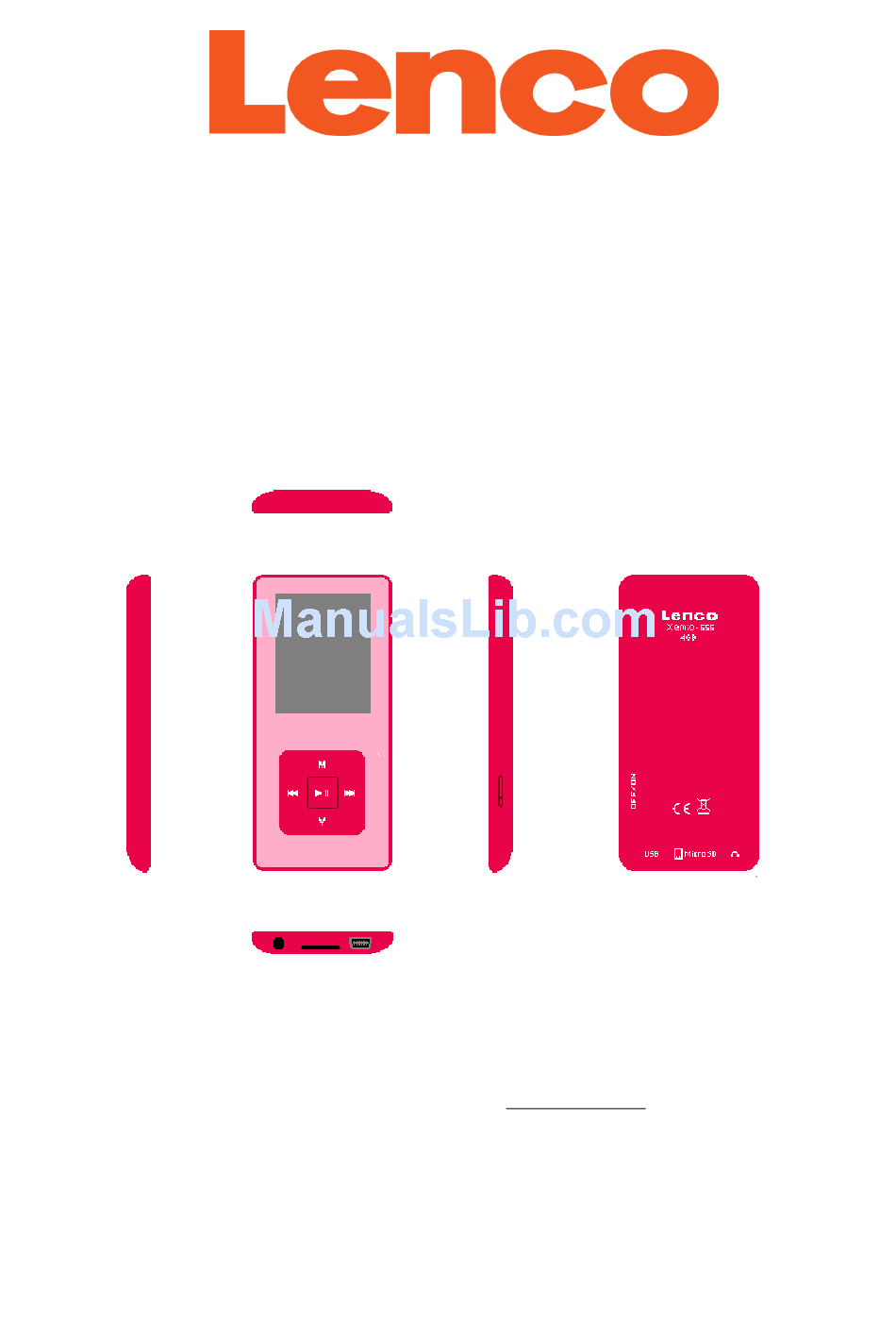

Page 1: Media Player
USER’S MANUAL Xemio-656 Media Player For information and support: www.lenco.com... -
Page 2: Safety Warnings
Lenco suggests retaining the packaging in case for future transport of the product. If at any time in the future you should need to dispose of this product please note that: All batteries and accumulators need to be removed from this product (Removal of Waste Batteries and Accumulators). - Page 3 Get to know the controls on Player Item Description TFT LCD Display M Button (Menu / Enter / Select) ) Button (Previous / Fast-Rewind / VOL-) ) Button (Next / Fast-Forward / VOL+) Center ( ) Button (Play / Pause / Standby ON - OFF) V (VOL) Button (Volume Control) Main Power Switch (ON - OFF) Microphone (Mono)
- Page 4 Charging the Battery: You can charge the player battery in two ways: Connect player to your computer. Or, Use the USB power charger. (available separately) Connection and Charging: Once you have connected player with computer / power charger, then you will see the “Connect”...
- Page 5 computer, and connect the other end to player, then the “Connect” screen appear for view. Now the player is ready for media files transfer with your computer and the battery is charging. You can transfer the media files by using the computer mouse use drag and place, or copy and paste, in between the player and your computer.
- Page 6 (If Picture chooses) (If Text chooses) (If Game chooses) (If Setting chooses) Use Setup Menu You might need to set date & time or change some default setting as you desired in setup sub menu before you start to use the player. To go into setup menu, from main menu, choose “Setup”...
- Page 7 To change “LCD set” You can set the backlight to illuminate the screen for a certain amount of time as you desired or make the backlight to always ON when every time you turn ON the player. To change LCD backlight, choose “LCD set” > choose “Dark mode”, a level bar with number appear then chose “0 (always On) / 5 / 10 / 15 / 20 / 25 / 30 / 35 / 40 / 45 / 50 seconds”...
- Page 8 From main menu, choose “Music” by using and M button, a “Music Now Playing” screen appears to use. “Music Now Playing” Screen To Play Music In Music Now Playing screen, press button to start the play. Press button to pause the playing music. Press it again to play. Play Previous or Next Music Press button to play next music.
- Page 9 Use Music Submenu in Music Stop Mode You might need to selecting folders for music play and delete music files. To do this: Local Folder In Music Now Playing screen, press button to stop the playing music if player is in playing, then press M button to call up the Music Submenu.
- Page 10 Select Exit to back to music now playing screen. Use Movie Menu To Play Movie From Main Menu, choose “Movie” by using and M button, a “Movie Now Playing” screen appears to use. In Movie Now Playing” screen, press key to start the play. Press button to pause and to back to Movie Now Playing screen.
- Page 11 Delete File In movie submenu screen, choose “Delete file” a file list menu appear, and then choose which movie file that you want to delete by using buttons. Once file is selected, press M button and choose “Yes” to confirm or “No” to cancel. Delete All In movie submenu screen, choose “Delete all”...
- Page 12 Noted: This program is used to convert video files into AMV format, currently only AMV format is supported. Run “AMV Convert Tools”, click to choose the folder where to save the AMV files, and then click to select the folder where the original files are. The original file will show in the file window once selected.
- Page 13 After conversion, the AMV files will play automatically for preview. And now the converted AMV file is ready to transfer, you can simply copy and place those converted AMV files to the media player. Note: Only pixels in 160x128 can be supported. 11.
- Page 14 Press and hold M button, the recorded file will save into memory. 12. Use Record Submenu (in Stop Mode) You might need to change the folder locations which want to store the record file and / or change record quality to better compression values. In Now Recording screen at stop mode, press M button, a “Record Sub-menu appear to use.
- Page 15 To Fast-Forward or Fast-Backward Press and hold buttons to use fast-forward Press and hold button to use fast-backward. Adjust volume level In music playing , press “VOL” button, a change volume control screen appears, then press buttons to adjust volume levels to down / up. Wait for 6 –...
- Page 16 files… etc. To change setting: Repeat In voice playing mode, press M button, a Music Sub-menu appear, then choose “Repeat”, then choose “Normal / Repeat one / Folder / Repeat folder / Repeat all / Random / Intro” as you desired by using and M buttons.
- Page 17 Once file is selected, press M button and choose Yes to confirm or No to cancel. Delete All In photo submenu, choose “Delete all” then selects “Yes / No” by using button. One “YES” or “NO” appear then press M button to confirm. All photo files will be deleted once YES is selected and confirmed, a “Deleting”...
- Page 18 activated as your selected time gap to playing. Delete file In eBook Submenu, choose “Delete file” a list menu appear, and then choose which eBook file that you want to delete by using button. Once file is selected, press M button and choose Yes to confirm or No to cancel. Delete All In eBook Submenu, choose “Delete all”...
- Page 19 will increase the mobile hard disk memory capacity of the player if you use this option. To Play From Memory Card: Turn Off the player. Now insert your Micro SD memory card into the memory card slot on side of player. Turn On the player and now the Micro SD memory card, T-Flash, is ready to use.
- Page 20 All items described in this guide for illustration purposes only and may not apply to particular situation. No legal right or entitlements may be obtained from the description made in this manual 26. Service and support For information: www.lenco.com For support: http://lencosupport.zendesk.com Lenco helpdesk: Germany...
- Page 21 The helpdesk is accessible from Monday till Friday from 9 AM till 6 PM. When contacting Lenco, you will always be asked for the model and serial number of your product. The serial number can be found on the back of the device. Please write down the serial number...
