4. To insert the new bulb and replace the
cover, proceed in reverse order.

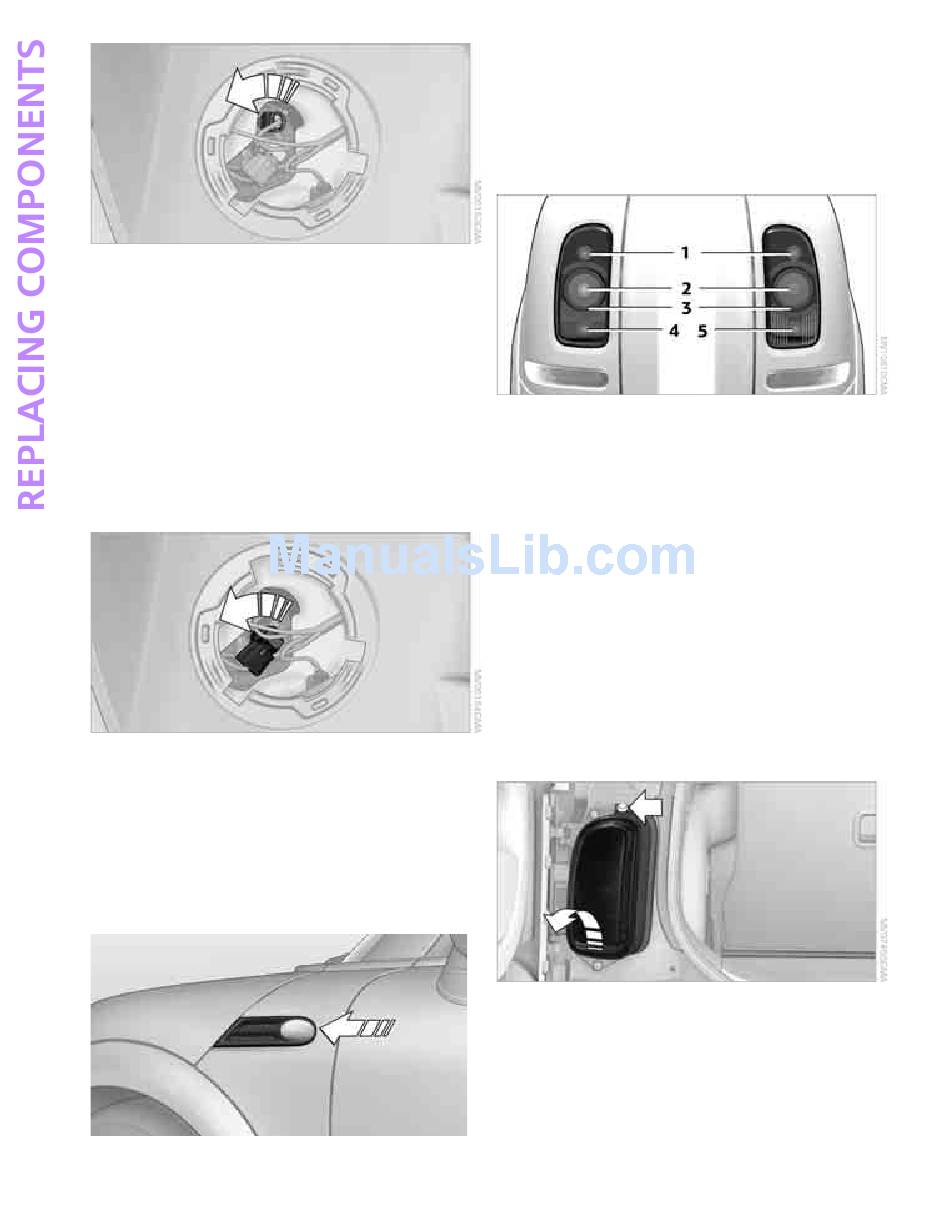

Replacing a fog lamp bulb
H8 bulb, 35 watts
1. Turn in the wheel.
Remove cover 2.
2.
To do so, turn the cover counterclockwise.
3. Pull the cable connector.
4. Unscrew the lower bulb counterclockwise.
5. To insert the new bulb and replace the
cover, proceed in reverse order.
Side turn signals
5 watt bulb, W 5 W
1. Push the lamp with the ventilation grate for-
ward and remove.
130
Online Edition for Part no. 01 40 2 605 226 - © 07/10 BMW AG Online Edition for Part no. 01 40 2 605 226 - © 07/10 BMW AG
2. Unscrew the bulb holder counterclockwise.
3. Pull out and replace the bulb.
4. To insert the new bulb and replace the
cover, proceed in reverse order.
Tail lamps
1 Brake lamp
bulb 21 Watt/5 Watt, W 5 W
2 Turn signal lamp
21 watt bulb, P 21 W
3 Tail lamp LED
*
4 Rear fog lamp P 21 W
5 Backup lamp
21 watt bulb, P 21 W
Remove the cover from the sidewall of the cargo
area.
Changing
1. Using the screwdriver from the onboard
vehicle tool kit, remove the screw at the top.
2. Swing out the tail lamp and remove it
toward the top.
