Loading paper
10

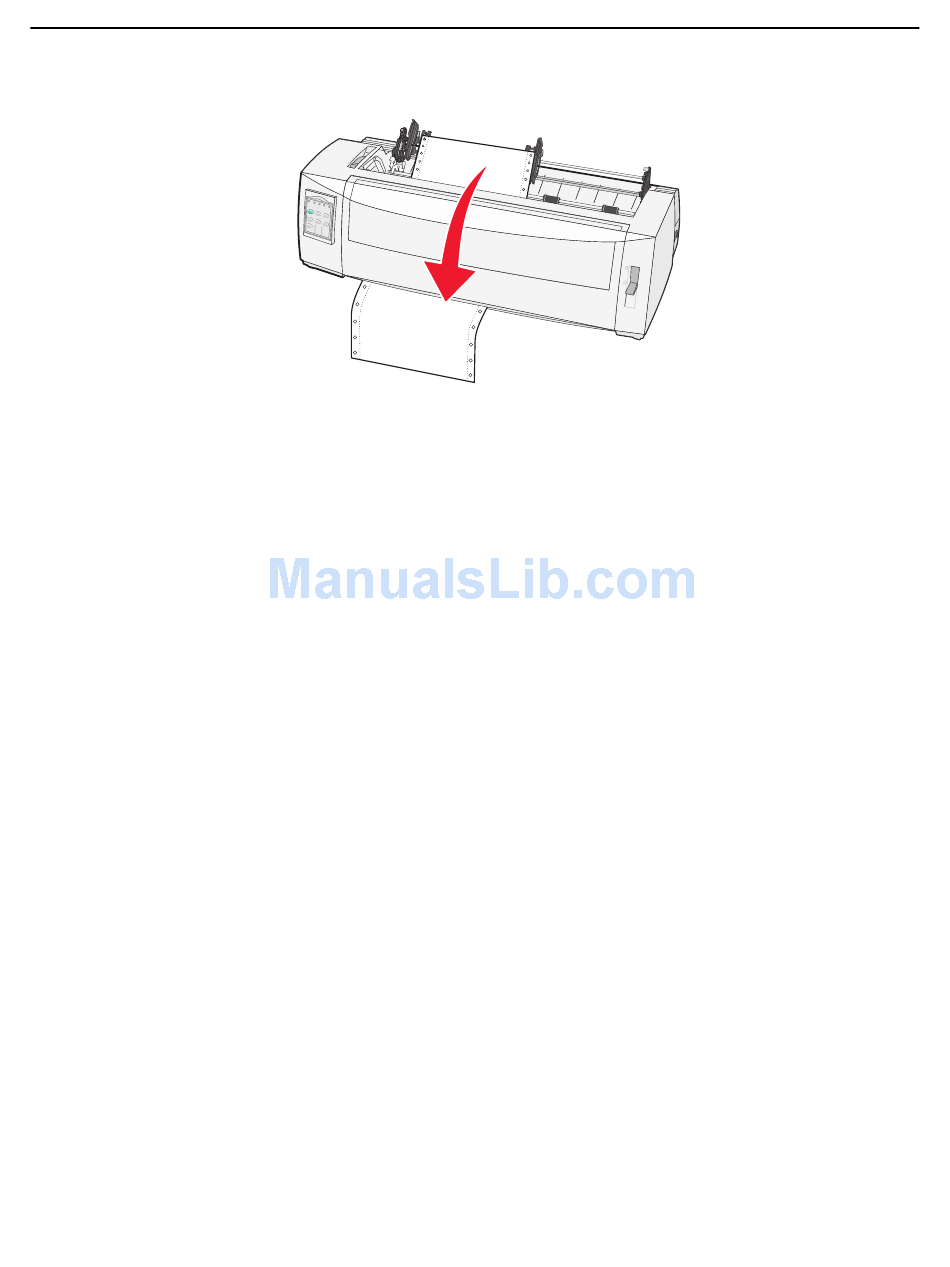

Close the front cover.
11
Place the paper holes over the tractor pins.
Notes:
• If necessary, move the left or right tractor to adjust the tractors to the paper width.
•
If you have trouble moving the right tractor to the paper width, then roll the rubber tractor stop out of the
seated position. Move the tractor to the paper width, then load the paper, and then lock the right tractor.
12
Close the left and right tractor doors.
13
Replace the ribbon access cover.
14
Move the tractor to align the left margin on the paper with the [A symbol printed on the rear plate.
Note: The distance from the [A symbol to the left edge of the paper determines the width of the left margin.
15
Push down the left tractor locking lever to lock the tractor in place.
