Shop-Vac Shop Sweep 405EDI User Manual

Figure 1
DRY PICK UP
ONLY
ALWAYS
WEAR EYE
PROTECTION
Figure 2
Shop-Vac Corporation
2323 Reach Road
P.O. Box 3307
Williamsport, PA 17701-0307
(570) 326-3557
Website: www.shopvac.com
Shop-Vac Canada, LTD
1770 Appleby Line
Burlington, Ontario L7L5P8
(905) 335-9730
Read carefully before attempting to assemble, install, operate or maintain the product described. Protect yourself and others by
observing all safety information. Failure to comply with the instructions could result in personal injury and/or property damage!
Retain instructions for future reference.
User Manual
Shop Sweep
Model 405EDI
Commercial/Industrial Use

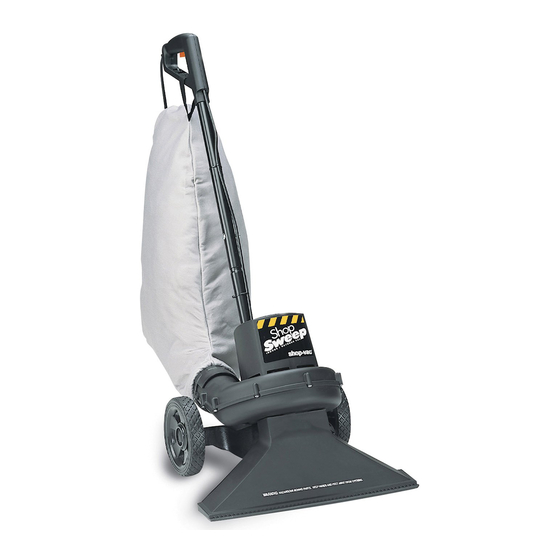

Description
The Shop Sweep Indoor/Outdoor Vac is designed to be used indoors or outdoors to clean litter, dirt and
debris – even leaves and lawn clippings from hard surface areas or low-pile commercial carpeting. The
Indoor/Outdoor Vac features a wide collection nozzle. Special features include a heavy-duty eight
gallon collection filter bag with a durable nylon zipper, two adjustment height settings and seven inch
rubber wheels. Powerful 1.25 (peak) horsepower single-stage electric motor is coupled to a high impact
impeller and a safety operating switch. UL & CSA Listed.
Specifications
Capacity
8 Gallons
(29.5 liters)
General Safety Information
mable materials or vapors are present because
electrical devices produce arcs or sparks that can
cause a fire or explosion.
IMPORTANT
SAFETY
INSTRUCTIONS
When using an electrical appliance, basic
precautions should always be followed, including
the following: READ ALL INSTRUCTIONS BEFORE
USING THIS APPLIANCE.
This appliance is provided with double insulation.
Use only identical replacement parts. See
instructions for servicing of double insulated
appliances.
Servicing for Double Insulated Appliances
A double insulated appliance is marked with one
or more of the following: the words "Double
Insulation" or "Double Insulated" or the Double
Insulation symbol (See Figure 2).
87511-79
Rev. 6/03
® Indoor/Outdoor Vac
Electrical
Rating
120V,
50/60 Hz AC
6.0 Amps
In a double insulated appliance, two systems of
insulation are provided instead of grounding. No
Never operate this
grounding means is provided on a double
unit when flam-
insulated appliance, nor should a means for
grounding be added to the appliance. Servicing a
double insulated appliance requires extreme care
and knowledge of the system, and should be done
only by qualified service personnel. Replacement
parts for a double insulated appliance must be
identical to the parts they replace.
To reduce the risk of fire, electric shock, or
personal injury:
1. Do not leave appliance when plugged in.
2. Do not use on wet surfaces – Do not expose to
3. Do not allow to be used as a toy. Close
4. Use only as described in this manual. Use only
5. Do not use with damaged cord or plug. If
Unit
Dimensions
19 1 / x39 1 / x36"
2 2
(49.5 x 100.3 x 91.4 cm)
Unplug from outlet when not in use and before
servicing.
rain – store indoors.
attention is necessary when used by or near
children.
Manufacturer's recommended attachments.
appliance is not working as it should, has been
Weight
19 Lbs.
(8.62 kg)
