American Standard 3698 Installation Instructions

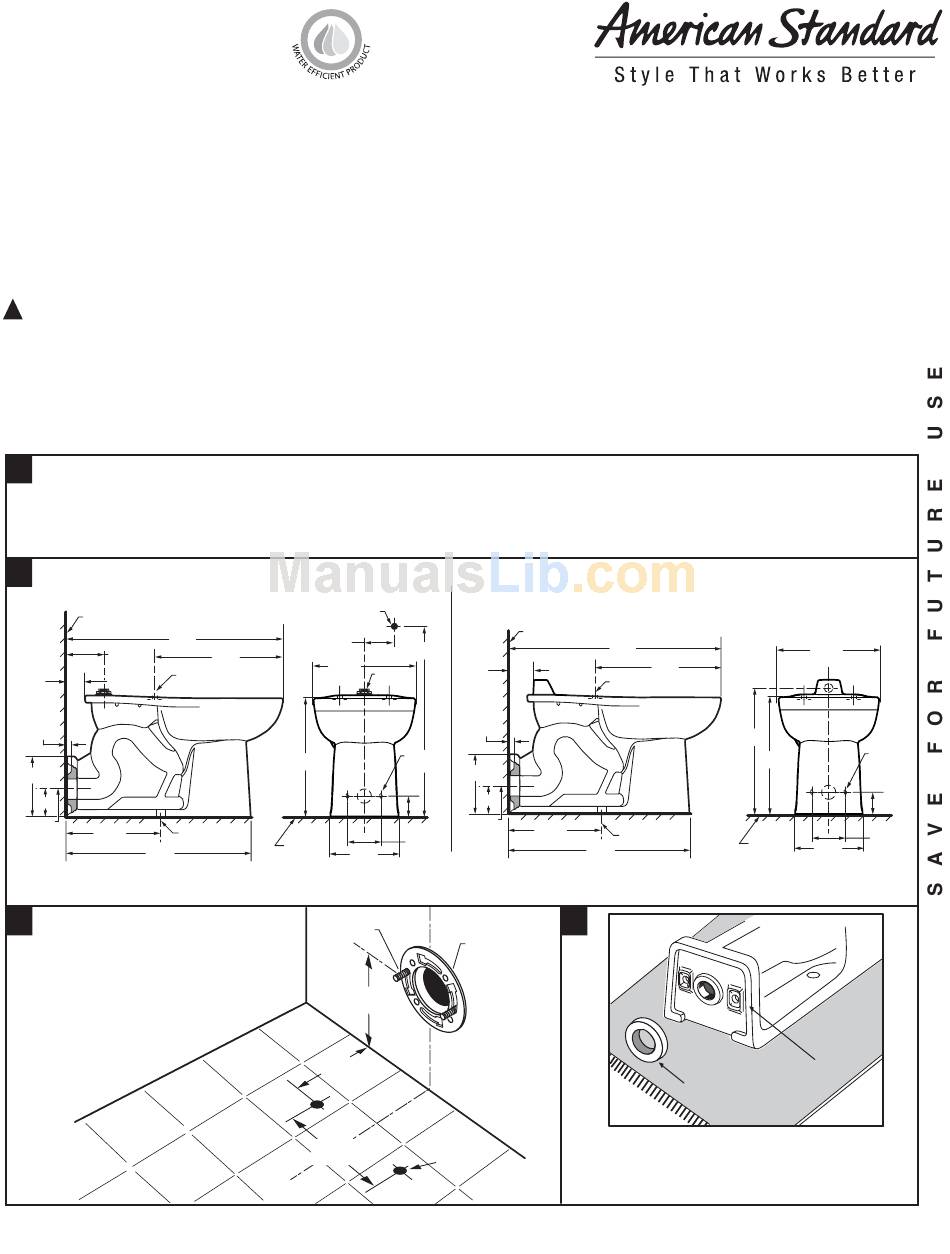

INSTALLATION
INSTRUCTIONS
PRIOLO FLOOR MOUNT BACK OUTLET
ADA FLUSHOMETER ONE PIECE TOILET
1.6 GPF Models 3695.016, 3696.016, 3697.016, 3698.016
1.28 GPF Models 3695.128, 3696.128, 3697.128, 3698.128
Thank you for selecting American Standard – the benchmark of fine quality for over 100 years. To ensure this product is
installed properly, please read these instructions carefully before you begin. (Certain installations may require professional
help.) Also be sure your installation conforms to local codes.
CAUTION: PRODUCT IS FRAGILE. TWO PEOPLE ARE RECOMMENDED FOR HANDLING
!
TO AVOID BREAKAGE AND POSSIBLE INJURY!
NOTE: Pictures may not exactly define contour of china and components.
NOTE: For proper operation these products require a minimum of 30 psi line pressure.
RECOMMENDED TOOLS AND MATERIALS
Putty Knife Regular Screwdriver
Hacksaw Wax Ring/Gasket
1
REMOVE OLD TOILET
a. Close flush valve completely.
b. NOTE: If replacing valve, first shut off main water supply!
c. Remove old mounting hardware, remove toilet and plug wall waste opening to prevent escaping sewer gases.
d. Remove closet bolts from flange and clean away old wax, putty, etc. base area.
NOTE: Mounting surface must be clean and perpendicular to the floor before new toilet is installed!
2
PRIOLO 3695/3696 16-1/2" TOP SPUD
FINISHED WALL
752mm
(29-5/8)
136mm
(5-3/8)
60mm C/L OF SEAT POST HOLES
140mm (5-1/2) CENTERS
(2-3/8)
13mm
(1/2)
217mm
(8-1/2)
102mm
(4)
C/L OF
WASTE
345mm C/L OF 1/2"
(13-5/8)
OUTLET
DIA. HOLES
646mm
(25-3/8)
3
INSTALL CLOSET BOLTS
Install closet bolts in flange channel, turn
90°, and slide into place 6" (152 mm)
apart and parallel to floor. (Use putty to
hold bolts in place if necessary.) Brace
under flooring as needed and drill two
mounting pilot holes as shown.
P r o d u c t n a m e s l i s t e d h e r e i n a r e t r a d e m a r k s o f A S A m e r i c a , I n c .
© A S A m e r i c a , I n c . 2 0 0 8
Adjustable Wrench
Flexible Supply Tube
1" N.P.T. OR 1" C.W.T. SUPPLY
TO FLUSH VALVE
(SUGGESTED)
121mm
(4-3/4)
470mm
(18-1/2)
356mm
(14) 1 -1/2
SPUD
419mm
(16-1/2)
FINISHED
FLOOR
240mm
(9-1/2)
DIMENSIONS (Nominal) NOTE: Distance from floor to closet flange centerline (rough-in)
must be 4" (102 mm) with flange surface flush to 1/16" (1.6mm) max. beyond finished wall.
CLOSET
BOLTS
102mm
(4)
345mm
(13-5/8)
168mm
(6-5/8)
HET High Efficiency
(1.28gpf/4.8Lpf)
PRIOLO 3697/3698 16-1/2" BACK SPUD
FINISHED WALL
730mm
(28-3/4)
112mm
(4-3/8)
13mm
(1/2)
13 x 25mm
slots
(1/2 x 1")
217mm
(8-1/2)
102mm
(4)
102mm
(4)
C/L OF
WASTE 345mm
(13-5/8)
OUTLET
152mm
(6)
FLUSH TO
4
1/16" (1.6mm)
EXPOSED
CLOSET
FLANGE
INSTALL NEOPRENE OR GRAPHITE FELT SEAL*
PILOT
Install seal evenly around waste flange (horn).
HOLES
Apply a thin bead of sealant around base flange.
*NOTE: Wax seal not recommended for this application.
Sealant Tape Measure
Closet Bolts Carpenters Level
752mm
(29-5/8)
470mm
(18-1/2)
C/L OF SEAT POST HOLES
140mm (5-1/2) CENTERS
438mm
(17-1/4)
C/L OF 1/2"
DIA. HOLES
FINISHED
646mm
FLOOR
(25-3/8)
NEOPRENE
SEAL
356mm
(14)
13 x 25mm
419mm
slots
(16-1/2)
(1/2 x 1")
102mm
(4)
152mm
(6)
240mm
(9-1/2)
SEALANT
7301198- 100
