Summary of Contents for ICB HM-12

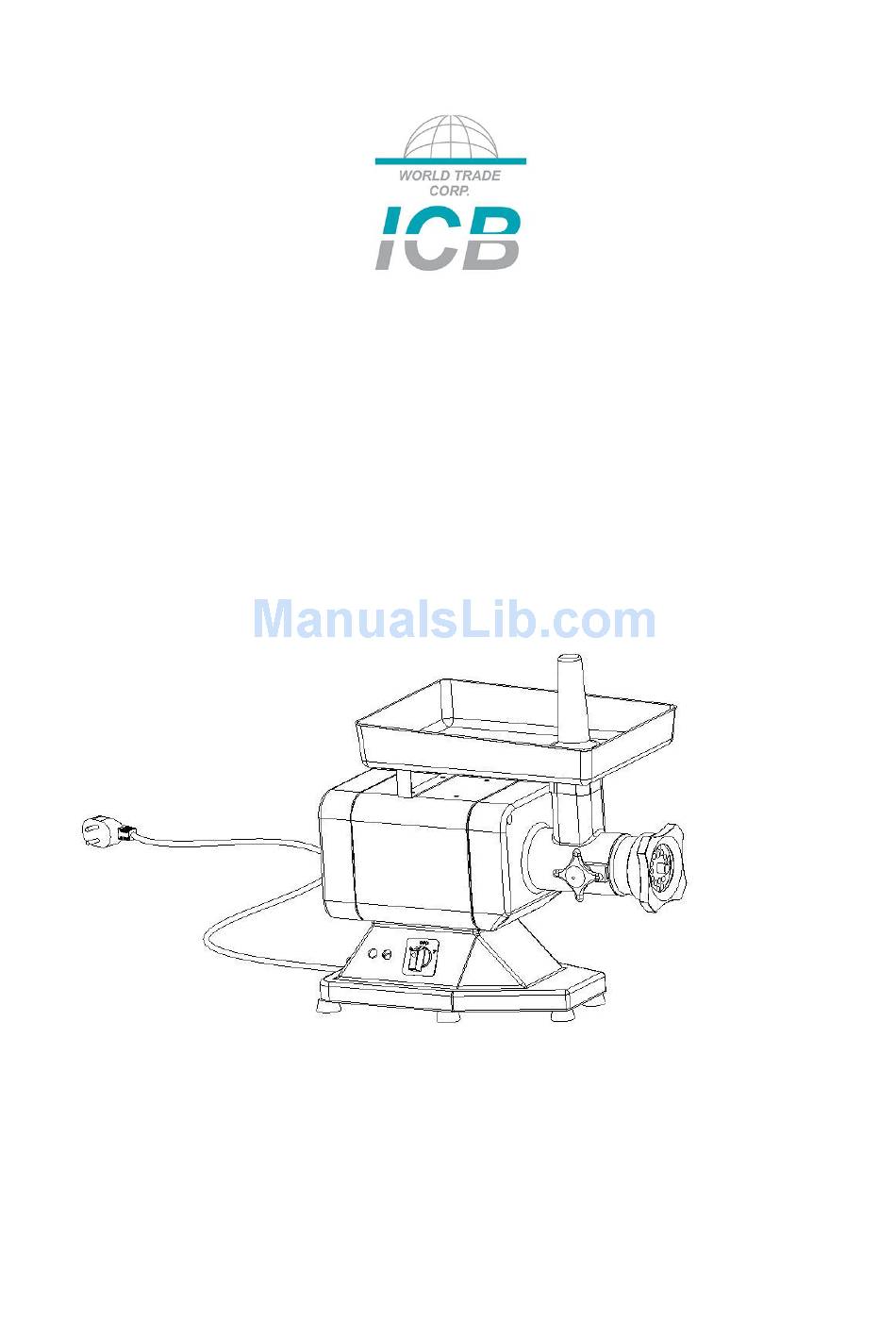

- Page 1 User Manual for ICB Meat Grinders Models HM-12, HM-22B...
- Page 2 4.1 APPLIANCE LOCATION 4.3 WIRING DIAGRAMS HM-12/HM-22/HM-22A 4.4 FUNCTIONAL CHECK 5 USING THE APPLIANCE 5.1 CONTROLS 5.2 SETTING UP THE HM-12/HM-22/HM-22A FOR USE 5.3 FILLING THE GRINDER(see fig 5) 6 REGULAR CLEANING 6.1 GENERALITIES 6.2 PROCEDURE TO FOLLOW FOR CLEANING THE APPLIANCE 7 MAINTENANCE 7.1 GENERALITIES...
-
Page 3: Information About The Appliance
If the HM-12/HM-22/HM-22B has a presumed malfunction or does not work correctly, do not use it or repair it. Contact the agent or a qualified technician. ... -
Page 4: Construction Characteristics
Easy to handle 1.3.2 CONSTRUCTION CHARACTERISTICS The HM-12/HM-22/HM-22B is made from food grade stainless and aluminum alloy. These metals are ideal regarding hygiene, are rust proof , and acid and salt resistant. 1.3.3 APPLIANCE COMPONENTS FIG 1-General view of the HM-12/HM-22/HM-22B... -
Page 5: Consigning The Appliance
4 INSTALLING THE APPLIANCE 4.1 APPLIANCE LOCATION 4.1.1 The work surface where the HM-12/HM-22/HM-22B will be located must be suitable for the size of the appliance, please refer to the measurements given in FIG 2.The work surface must be level and dry and at a height of 80 cm from the ground with a temperature between 5℃... -
Page 6: Using The Appliance
2-Stop button “off” 4-stop button (red) 3-Reverse button “turn over” 5-start button (green) 5.2 SETTING UP THE HM-12/HM-22/HM-22B FOR USE N.B. Before using the appliance makes sure all the components that can be removed are secured in position (see fig 6) ... -
Page 7: Regular Cleaning
Now all the components can be washed (see fig 7 ) using warm water ( 50 ℃) and a neutral detergent. To clean the main structure use a damp cloth, rinsing frequently. The grater roller mounted on the HM-12/HM-22/HM-22B should be brushed cleaned. Carefully clean the punched holes. Make sure all the components are completely dry before remounting them. -
Page 8: Maintenance
FIG 7-Diagram of HM-12/HM-22/HM-22A stripped for cleaning MAINTENANCE 7.1 GENERALITIES Before servicing the appliance you must disconnect the electricity supply plug isolating the appliance from the main power source. 7.2 FOOT SUPPORTS In time the foot supports can deteriorate causing instability. If this is the case replaces them.
