Huawei HG232f User Manual

Huawei HG232f User Manual

300mbps wireless router
Hide thumbs Also See for HG232f:
Table of Contents

Advertisement

Quick Links

See also: User Manual
www.4GSource.net

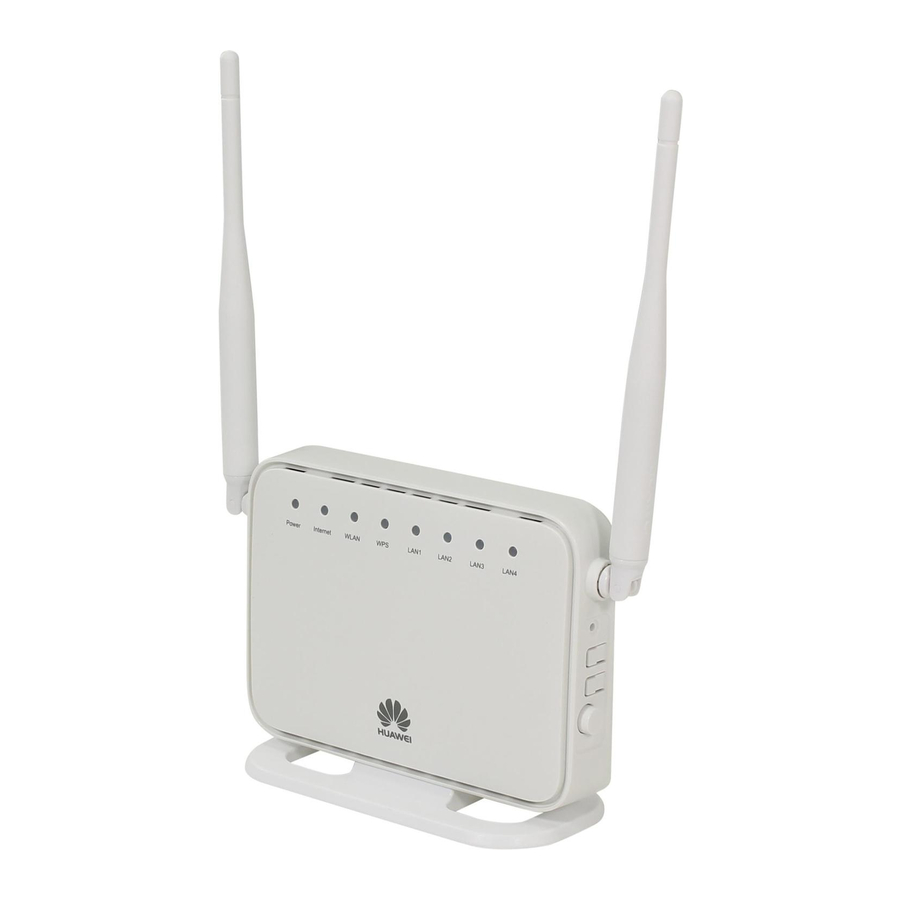

HG232f 300Mbps Wireless Router

User Guide

HUAWEI TECHNOLOGIES CO., LTD.

Advertisement

Table of Contents
loading

Related Manuals for Huawei HG232f

Summary of Contents for Huawei HG232f

  • Page 1: User Guide

    HG232f 300Mbps Wireless Router User Guide HUAWEI TECHNOLOGIES CO., LTD.
  • Page 2 User Guide Issue Date 2012-05-08 Part Number 202497 Huawei Technologies Co., Ltd. provides customers with comprehensive technical support and service. For any assistance, please contact our local office or company headquarters. Huawei Technologies Co., Ltd. Address: Huawei Industrial Base Bantian, Longgang...
  • Page 3 Thus the descriptions herein may not exactly match the product or its accessories you purchase. Huawei Technologies Co., Ltd reserves the right to change or modify any information or specifications contained in this manual without prior notice or obligation. NO WARRANTY THE CONTENTS OF THIS MANUAL ARE PROVIDED “AS IS”.

  • Page 4: Table Of Contents

    Contents 1 Warnings and Precautions .................. 1-1 2 Hardware Installation ..................2-1 2.1 Selecting a Position for the HG232f ................2-1 2.2 Connecting Cables ....................... 2-1 2.3 Powering On the HG232f .................... 2-3 3 Configuration of Internet Access Parameters ..........3-1 3.1 Logging In to the Web-Based Configuration Utility ...........
  • Page 5 HG232f 300Mbps Wireless Router Contents User Guide 6.5 Upgrading Software ....................6-4 7 FAQs ........................7-1 8 Appendix ........................ 8-4 8.1 Indicators ........................8-4 8.2 Interfaces and Buttons ....................8-6 8.3 Default Settings ......................8-7 8.4 Technical Specifications ....................8-7...

  • Page 6: Warnings And Precautions

    HG232f 300Mbps Wireless Router User Guide 1 Warnings and Precautions Warnings and Precautions To use the device properly and safely, read these warnings and precautions carefully and strictly observe them during operation. Unless otherwise specified, the term "device" refers to the device and its accessories.
  • Page 7 HG232f 300Mbps Wireless Router 1 Warnings and Precautions User Guide When using the device, ensure that the antenna of the device is at least 20 cm away  from all persons. Do not use the device where using wireless devices is prohibited or may cause ...
  • Page 8 съответства на основните изисквания и другите разпоредби на Директива 1999/5/EC. Česky: Huawei Technologies Co., Ltd., tímto prohlašuje, že toto zařízení je ve shodě se základními požadavky a dalšími souvisejícími opatřeními směrnice 1999/5/EC. Dansk: Huawei Technologies Co., Ltd. erklærer hermed at denne enhed er i overensstemmelse med de obligatoriske krav og andre relevante bestemmelser i direktiv 1999/5/EF.
  • Page 9 EC/5/1999 Irányelv összes lényeges követelményének és vonatkozó előírásának. Gaeilge: Fograíonn Huawei Technologies Co., Ltd leis seo go bhfuil an fheiste seo i gcomhlíonadh leis na fíor-riachtanais agus na forálacha eile maidir le Treoir 1999/5/AE. Italiano: Col presente documento, Huawei Technologies Co., Ltd. dichiara che questo dispositivo è...
  • Page 10 HG232f 300Mbps Wireless Router User Guide 1 Warnings and Precautions Slovenščina: Huawei Technologies Co., Ltd. izjavlja, da je ta naprava v skladu z bistvenimi zahtevami in drugimi ustreznimi določbami Direktive 1999/5/ES. Español (Europeo) : Con el presente documento, Huawei Technologies Co., Ltd.
  • Page 11 User Guide Consult the dealer or an experienced radio/TV technician for help.  Warning: Changes or modifications made to this device not expressly approved by Huawei Technologies Co., Ltd. may void the FCC authorization to operate this device. Issue 01 (2012-05-08)

  • Page 12: Hardware Installation

    HG232f 300Mbps Wireless Router (HG232f for short) WLAN function, place the HG232f as follows: Place the HG232f in an open space and ensure that there are no obstacles, such as  walls and columns, between your computer and the HG232f. Otherwise, the transmission of radio signals on the WLAN may be negatively impacted.
  • Page 13 The following figure uses desktop and laptop computers as examples to show you how to connect to the Internet. In this example, the HG232f is connected to the desktop computer with cables and connected to the laptop computer over a wireless connection.

  • Page 14: Powering On The Hg232F

    2 Hardware Installation 2.3 Powering On the HG232f Press the On/Off button on the side panel to power the HG232f on. When the Power indicator light remains lit, you can consider the HG232f to be working properly. To power the HG232f off, press the On/Off button again, and then unplug the power adapter.

  • Page 15: Configuration Of Internet Access Parameters

    By default, the Dynamic Host Configuration Protocol (DHCP) function is enabled. The HG232f then assigns an IP address to your computer automatically. If you disable the DHCP function, please ensure that the IP address of the computer and that of the HG232f LAN interface are in the same network segment to enable the computer to access the web-based configuration utility.

  • Page 16: Using The Setup Wizard

    Table 3-1, and then click Next. If you can access the Internet with your computer before installing the HG232f, you can set the Internet access type to that of the computer's current Internet access settings. In addition, when you subscribe to an Internet access service, the network service provider informs you of the Internet access type and Internet access method.
  • Page 17 HG232f 300Mbps Wireless Router User Guide 3 Configuration of Internet Access Parameters ----End After you complete the preceding procedure, you can start surfing the Internet. You need to perform the preceding procedure on a computer only once. The next time you power your computer on, you can start surfing the Internet without any further configurations.

  • Page 18: Configuration Of Wlan Parameters

    Configuration of WLAN Parameters If a wireless network adapter is installed on your computer, you can connect your computer to the HG232f over a wireless connection. The method for installing the wireless adapter and its driver varies by vendor. For details, see the installation guide provided by the vendor of your wireless adapter.

  • Page 19: Setting Up A Wireless Connection With The Wps Button

    WLAN function. Step 2 Press and hold the WPS button for 2 or more seconds on the side panel of the HG232f. The WPS indicator light of the HG232f starts blinking. If the WPS indicator light does not start blinking, the WPS function cannot be enabled. For solutions to other WPS issues, see chapter 7 "FAQs."...

  • Page 20: Configuring Frequently Used Functions

    Connect the laptop to the HG232f wirelessly by configuring the laptop. For details, see chapter 4 "Configuration of WLAN Parameters." Step 3 Set the Internet access parameters of the HG232f to connect the HG232f to the Internet. For details, see chapter 3 "Configuration of Internet Access Parameters." Step 4 Configure network connections on the desktop computers and laptop so that these computers can obtain their respective IP addresses automatically.

  • Page 21: Enabling Or Disabling The Wlan Function

    5.3.1 Hiding the Name of a WLAN Function Overview The HG232f allows you to hide the SSID. After this function is enabled, wireless signals transmitted from the HG232f do not carry the SSID, preventing unauthorized parties from obtaining the SSID. In addition, computer users need to enter the valid SSID manually to add the computer to the WLAN.

  • Page 22: Changing The Name Of A Wlan

    5.3.2 Changing the Name of a WLAN Function Overview When your HG232f is delivered, the SSID is pre-set. You can find this pre-set SSID on the rear panel label of your HG232f. However, you can change the SSID of your HG232f as required.

  • Page 23: Allowing Only Specified Computers To Be Connected To A Wlan

    The WPS function can be used only when the security mode is set to WPA-PSK, WPA2-PSK, or WPA-PSK/WPA2-PSK. Configuration Example If you use the HG232f at home and wish to select an optimum security mode, set the parameters as follows: Set the security mode to WPA-PSK/WPA2-PSK.

  • Page 24: Configuration Example

    The wireless MAC filtering function controls the option of whether to allow a computer to be connected to the HG232f through a WLAN. The MAC address filtering function described in section 5.4 "Controlling the Internet Access Rights of PCs" controls the option of whether to allow a computer connected to the HG232f to access the Internet.

  • Page 25: Controlling The Internet Access Rights Of Computers

    The MAC address filtering function controls the option of whether to allow a computer connected to the HG232f to access the Internet. The wireless MAC filtering function controls the option of whether to allow a computer to be connected to the HG232f through a wireless network. Configuration Example...

  • Page 26: Prohibiting Computers From Accessing Specified Web Sites

    You can restrict computers from accessing specified web sites or restrict PCs to access only specified web sites. Through the Uniform Resource Locator (URL) filtering function of the HG232f, the preceding requirements can be met after you enter the addresses of the web sites to be controlled.

  • Page 27: Preventing Attacks On The Internet

    The Internet is an open network that is connected to computers all over the world, leaving computers on the Internet vulnerable to attacks at anytime. To help protect your computer from these attacks, the HG232f provides powerful firewall functions. By using a firewall, a protective shelter is established between your home network and the Internet.

  • Page 28: Removing The Restriction Caused By The Binding Of The Internet Access Account To The Mac Address

    MAC address can connect to the Internet. When this is the case, the MAC address of the HG232f cannot be found in the network devices of a network service provider. As a result, the HG232f cannot connect to the Internet and the computers connected to the HG232f also cannot access the Internet.
  • Page 29 Configure a port mapping rule, and then map the IP address of the web server  (192.168.3.166:80) to the 80 port of the WAN interface. Configure the DDNS. Ensure that the HG232f can submit IP addresses to the DDNS  server automatically.
  • Page 30 Click New. Step 10 Select Others for Service provider. The DDNS function of the HG232f provides parameter setting templates of multiple DDNS providers. After a template is selected, the HG232f sets relevant parameters automatically. You can change the parameter settings as required. You can also set all the parameters again as required.

  • Page 31: Maintenance Guide

    Web-based Configuration Utility Function Overview You can configure all the parameters of the HG232f through the web-based configuration utility. To prevent unauthorized parties from changing these parameters, the user name and password are required to log in to the web-based configuration utility.

  • Page 32: Changing The Login Ip Address Of The Web-Based Configuration Utility

    If you change the IP address of the LAN interface, ensure that the IP address of the computer and the IP address of the LAN interface of the HG232f are in the same network segment to enable the computer to access the web-based configuration utility.

  • Page 33: Restoring Default Settings

    Configuration Example If you have changed the login password of the web-based configuration utility and have forgotten it, you can press the Reset button on the HG232f to quickly restore it to its default settings. When the HG232f is powered on, press and hold the Reset button for 6 or more seconds, and then release it.

  • Page 34: Upgrading Software

    In the displayed confirmation dialog box, click OK. ----End 6.5 Upgrading Software Function Overview By using the software upgrading function, you can upgrade the software of the HG232f to its latest version. During the upgrade, do not power off the HG232f; otherwise, the HG232f may get damaged.

  • Page 35: Faqs

    How can I quickly restore the default settings of the HG232f? Q 2: When the HG232f is powered on, press and hold the Reset button for 6 or more seconds, and then release it. The HG232f then automatically restarts and the default settings are restored.
  • Page 36 Step 2 Check whether the WLAN indicator light of the HG232f is on. If the WLAN indicator is off, the WLAN function of the HG232f is disabled. If this is the case, enable the WLAN function. For details about how to enable the WLAN function, see section 5.2 "Enabling or Disabling the WLAN Function."...
  • Page 37 HG232f 300Mbps Wireless Router User Guide 7 FAQs If the HG232f cannot access other web sites, restore to the default settings of the HG232f. If the problem persists, contact your network service provider. ----End How do I improve the transmission quality of wireless signals?

  • Page 38: Appendix

    The HG232f is working in routing mode.  The WAN connection is set up and no IP address is  obtained. The HG232f is working in routing mode, but no  data is being transmitted. Blinking The HG232f is working in bridge mode.
  • Page 39 HG232f 300Mbps Wireless Router User Guide 8 Appendix Indicator Color Status Description The HG232f is powered off or no WAN connection is set up. WLAN Green The WLAN function is enabled, but no data is being transmitted on the WLAN. Green...

  • Page 40: Interfaces And Buttons

    Description Reset To restore the HG232f to its default settings, power the HG232f on, press and hold the Reset button for 6 or more seconds, and then release it. NOTE When the default settings are restored, your custom data is lost.

  • Page 41: Default Settings

    Subnet mask of the LAN interface 255.255.255.0 User name used to log in to the Check the label on the HG232f's rear panel web-based configuration utility Password used to log in to the Check the label on the HG232f's rear panel...
  • Page 42 HUAWEI TECHNOLOGIES CO., LTD. Huawei Industrial Base Bantian, Longgang Shenzhen 518129 People's Republic of China www.huaweidevice.com Part Number: 202497...
