Congratulations on your purchase of a Model g0453p planer! the Model g0453p is the same machine
as the Model g0453z but with a "cool" new look and a 3-knife cutterhead. All parts differences are shown
below. except for the differences noted in this insert, all other content in the Model g0453z manual applies
to this machine. Before operating your new machine, you Must read and understand this insert, and the
entire g0453z manual to reduce the risk of serious personal injury when using this machine.
If you have any questions about this manual insert or the differences between the Model G0453P and the
Model G0453Z, contact our Technical Support at (570) 546-9663 or email techsupport@grizzly.com.

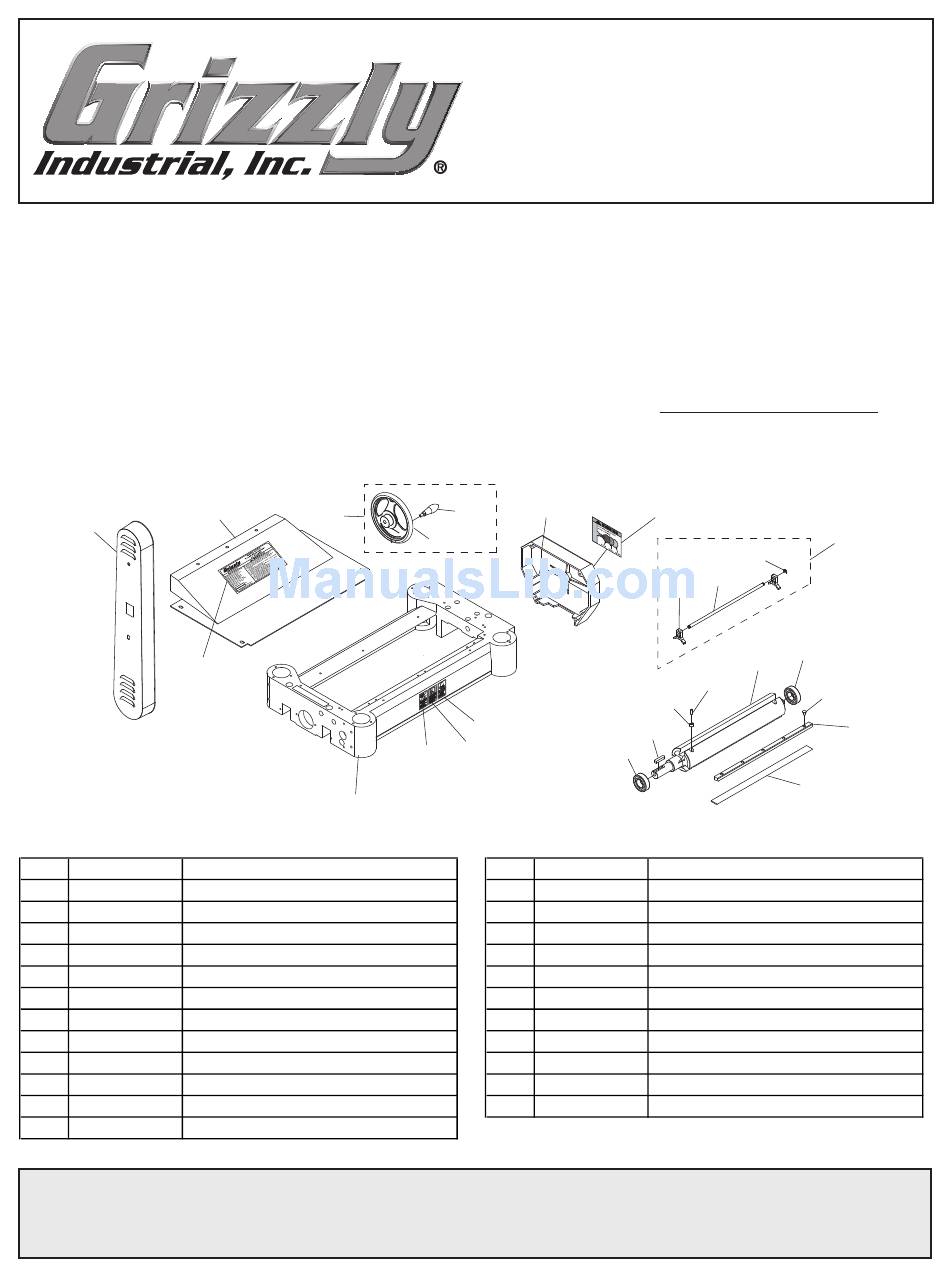

headstock parts breakdown

617
603
REF PART #
DESCRIPTION
5
P0453P005
HANDWHEEL ASSEMBLY
5-1
P0453P005-1
HANDWHEEL
5-2
P0453P005-2
HANDLE M12-1.75
24
P0453P024
UPPER COVER
27
P0453P027
GEAR BOX COVER
62
P0453P062
HEAD CASTING
96
PK09M
KEY 8 X 8 X 35
101
PEC015M
E-CLIP 8MM
102
P0453102
KNIFE GAUGE SHAFT
103
P0453103
KNIFE GAUGE FOOT
104
P0453104
KNIFE (SET OF 3)
105
P0453105
GIB SCREW
106
P0453106
GIB
Warning: no portion of this manual may be reproduced in any shape
or form Without the Written approval of grizzly industrial, inc.
(For Models MAnuFACtured sinCe 5/10) #Bl12910 printed in ChinA
24
5
62
Copyright © MAy, 2010 By grizzly industriAl, inC.
model g0453p
polar bear series
27
5-2
5-1
605
602 604
REF PART #
107
PSB24M
108
P0453108
109
P6205ZZ
110
P6204ZZ
111
P0453111
118
P0453118
602
PLABEL-37
603
P0453P603
604
PLABEL-12A
605
PLABEL-15
608
P0453P608
617
P0453P104
15" planer
manual insert
608
101
102
103
111
107
108
96
109
DESCRIPTION
CAP SCREW M5-.8 X 16
ADJUSTING NUT
BALL BEARING 6205ZZ
BALL BEARING 6204ZZ
CUTTERHEAD
KNIFE GAUGE ASSEMBLY
GLASSES/RESPIRATOR LABEL
MACHINE ID LABEL
READ MANUAL LABEL
HEARING PROTECTION LABEL
GEARBOX SPEED LABEL
BELT COVER
118
110
105
106
104
