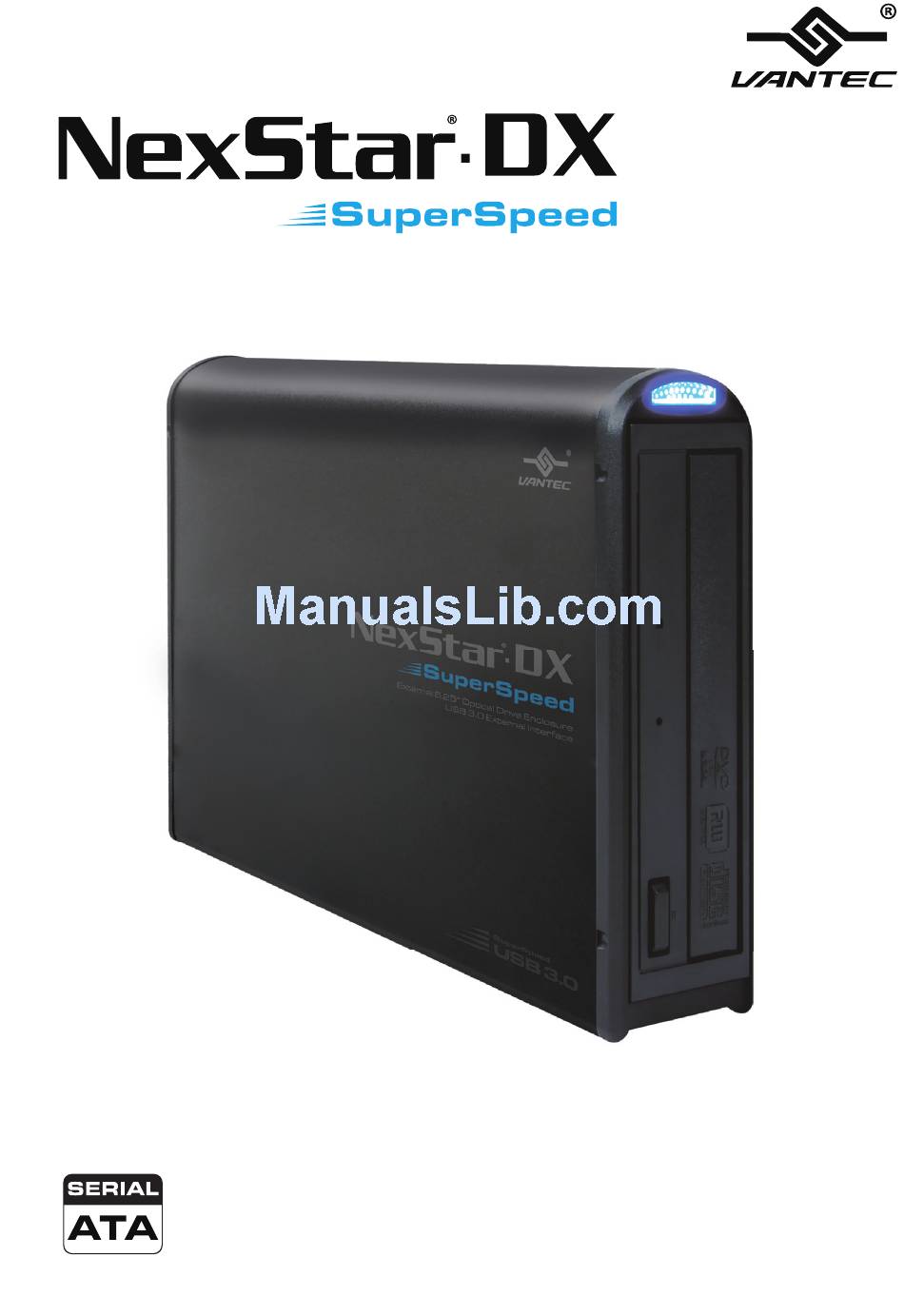

- Page 1 External 5.25” Optical Drive Enclosure USB 3.0 External Interface USER’S MANUAL...
- Page 2 MS-DOS, Microsoft, Windows NT/2000/XP/Vista/7 are trademarks of Microsoft Corporation. Apple, Macintosh and Mac are trademarks of Apple Computer. NexStar is a registered trademark of Vantec Thermal Technologies. *All other third-party brands and names are the property of their respective owners.
-
Page 3: Table Of Contents
Table of Contents: Introduction Specifications/Features System Requirements Parts Layout Installation Warranty Contact Table of Contents... -
Page 4: Introduction
1.Introduction: With the Vantec NexStar DX External 5.25” Enclosure, you can easily add any 5.25” opti- cal drive to your existing system. The Nex- Star DX connects to your computer through USB 3.0, offering speeds up to 5Gbps and even supports Blu-ray drives! The NexStar DX is perfect for anyone looking to add any 5.25”... -
Page 5: Specifications/Features
2.Specifications/Features: 5.25” SATA to USB 3.0 External Optical Drive Enclosure w/ Fan Features: • Transfer Rate Up to 5Gbps w/USB 3.0. • Easily Add a 5.25” SATA Device to Any System with USB. • Hot-Swappable: Plug & Play Without Rebooting. •... -
Page 6: System Requirements
3.System Requirements: Microsoft Windows XP/Vista/7 Mac OS 10.6* & greater 1. For USB 2.0 speeds, the system must 1. For USB 2.0 speeds, the system must support USB 2.0 specifications support USB 2.0 specifications 2. For USB 3.0 speeds, the system must 2. -
Page 7: Parts Layout
4.Parts Layout: 5.25” SATA to USB 3.0 External Optical Drive Enclosure w/ Fan Parts Layout... -
Page 8: Installation
5.Installation: 5.25” SATA to USB 3.0 External Optical Drive Enclosure w/ Fan 5.1. Hardware Installation: (1) Remove the back plate from the enclosure. (2) Slide the tray out from the housing. (3) Insert the 5.25” device into the enclosure. Installation... -
Page 9: Power Connector
(4) Connect the SATA data and power connector to the device as shown. SATA Data and Power Connector (5) Align the device so that the front of the device is flushed with the front of the NexStar® DX. (6) Tighten the 4 screws on both sides of 5.25”... - Page 10 (7) Slide the housing back into the aluminum housing and attach the back plane with the screws provided. losu re Dr ive Enc O ptic al Inte rfac al 5.2 5Ó Ex ter nal Ext ern USB 3.0 Installation...
-
Page 11: Warranty
7.Contact: Vantec Thermal Technologies www.vantecusa.com Copyright © 2012 Vantec Thermal Technologies. All Right Reserved. All Registered Trademarks Belong To Their Respective Companies. Warranty/Contact...
