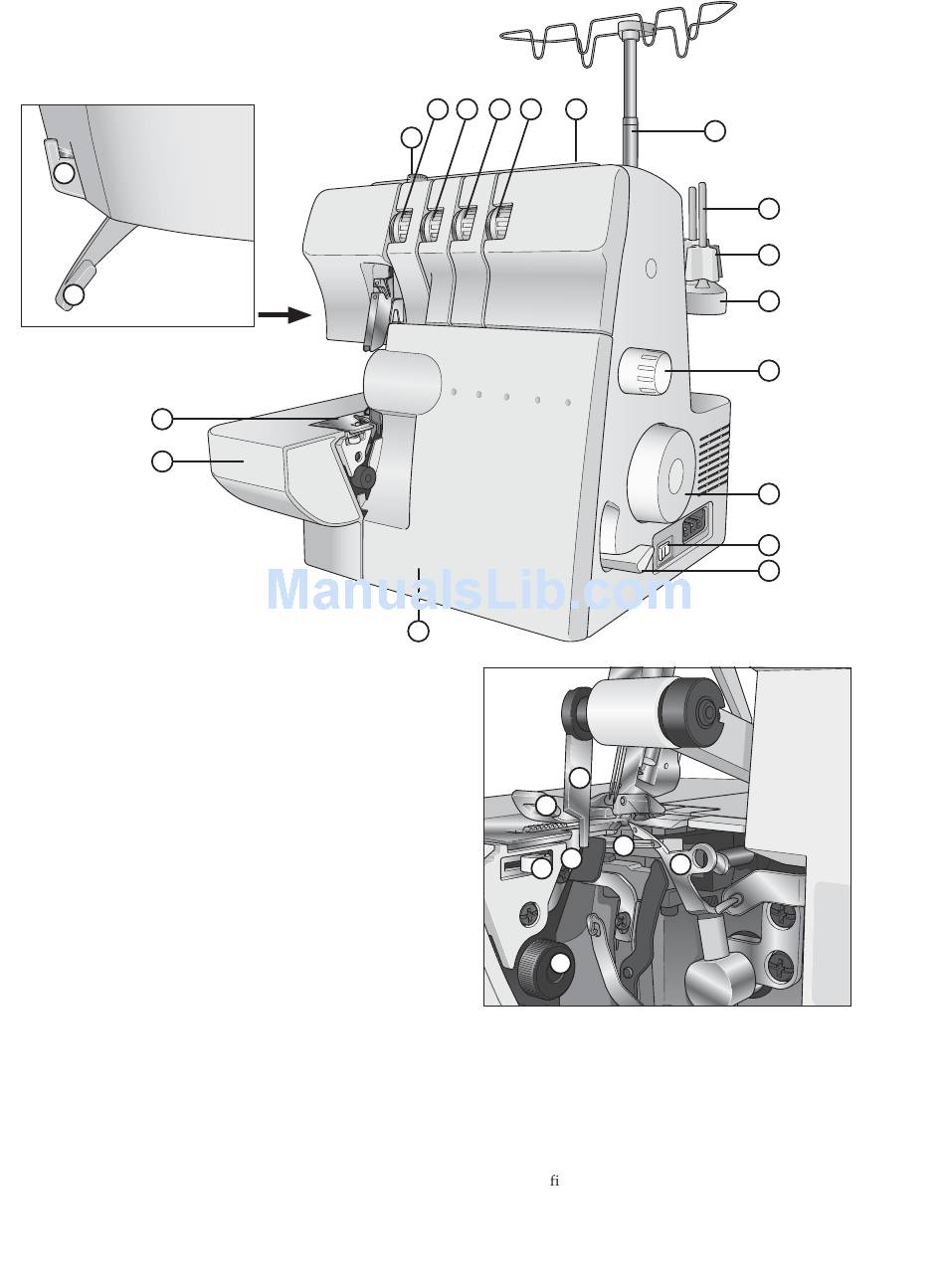

Parts of the machine

7
8
9
10
1. Presser foot pressure adjustment knob
2. Left needle thread tension dial (blue)
3. Right needle thread tension dial (green)
4. Upper looper thread tension dial (red)
5. Lower looper thread tension dial (yellow)
6. Handle
7. Thread cutter
8. Presser foot lifter
9. Stitch plate
10. Flat bed extension
11. Front cover
12. Differential feed adjusting lever
13. Power & light switch
14. Hand wheel
15. Stitch length dial
16. Spool stand
17. Cone holder
18. Spool pin
19. Telescopic thread stand
4
2 3 4 5 6
1
11
21
20
22
25
26
20. Presser foot
21. Movable upper cutter
22. Stationary lower cutter
23. Lower looper
24. Upper looper
25. Stitch nger lever
26. Seam width/cutting width adjustment knob
19
18
17
16
15
14
13
12
23
24
