  • Page 1: User Manual

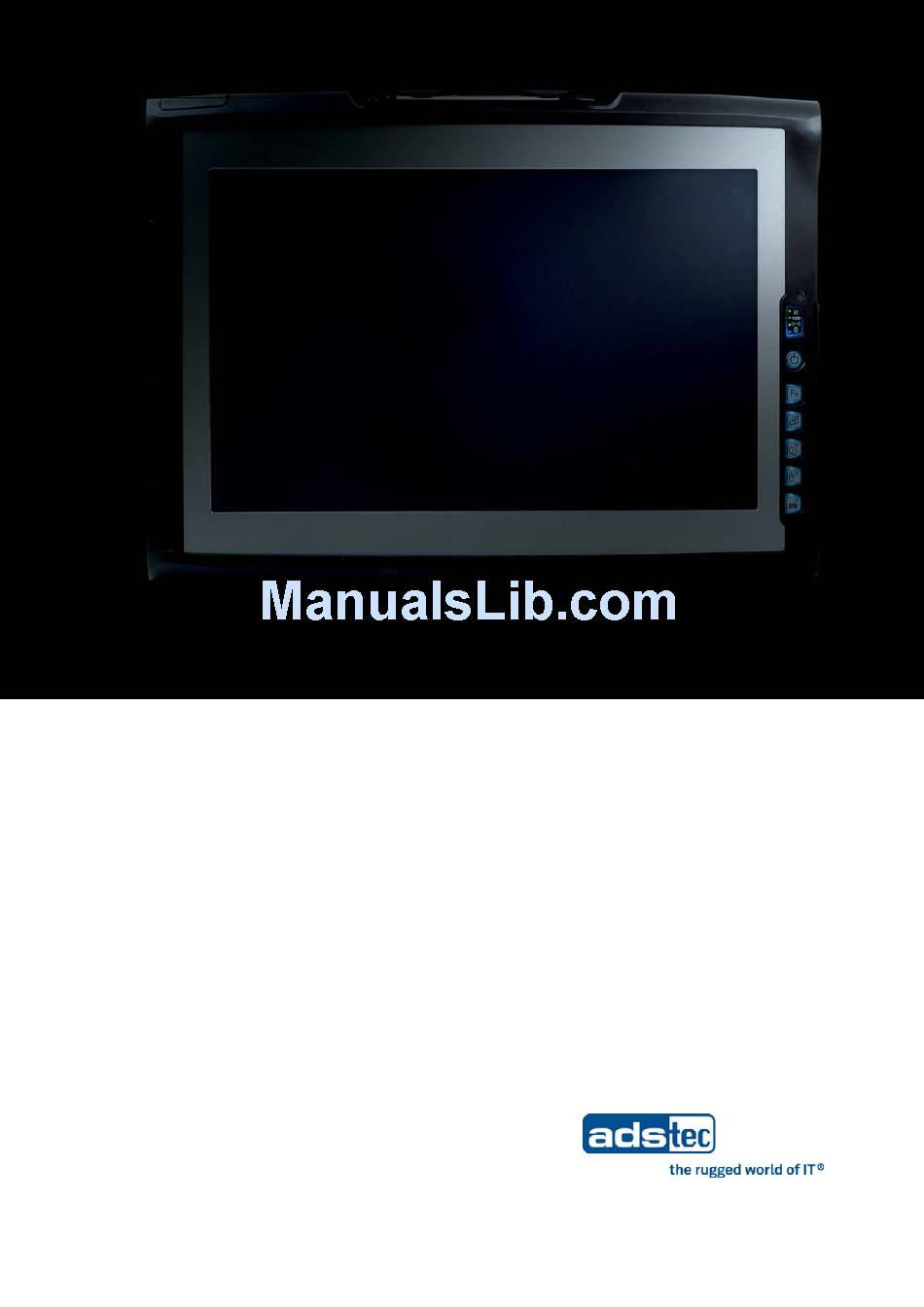

    Version User Manual Tablet PCs ITC1013...
  • Page 2 Tablet PCs ITC1013 Product Portfolio Copyright © ads-tec GmbH Raiffeisenstr.14 D-70771 Leinfelden-Echterdingen Germany © ads-tec GmbH • Raiffeisenstr.14 • 70771 Leinfelden-Echterdingen...

  • Page 3: Table Of Contents

    Tablet PCs ITC1013 NDEX ............................5 BOUT US ..........................6 EMARKS ................6 ELEVANT DATA COMMUNICATION WITH THE DEVICE ............... 6 ESCRIPTION OF THE WARNING SYMBOLS USED IN THIS GUIDE ................. 6 MAGES MENDMENTS AND ARIATIONS ..........................6 RADEMARKS ..........................7 OPYRIGHT ......................
  • Page 4 Tablet PCs ITC1013 6.10 ITC1013 ......................31 ADSXTERN 6.11 ......................31 ANUAL EINSTALLATION 6.12 TT13 S ................32 NSTALLATION OF THE OFTWARE ACKAGE 6.13 WLAN ..........................32 6.14 ........................... 35 LUETOOTH 6.15 UMTS ( ) ........................36 OPTIONAL 6.16 ) ........................ 38...

  • Page 5: About Us

    Tablet PCs ITC1013 BOUT US ads-tec GmbH Raiffeisenstr. 14 D-70771 Leinfelden- -Echterdingen Tel: +49 711 4589 94-0 Fax: +49 711 4589 94-990 www.ads-tec.com ads-tec GmbH provi des large enterprises and globally active corporat tions with cutting edge technology, up-to-d ate know-how and comprehensive services in t...

  • Page 6: Remarks

    Tablet PCs ITC1013 EMARKS 1.1 R ELEVANT DATA COMMUNICATION WITH THE DEVICE The following documents are essential for setting up and operating this device: SER MANUAL Contains information for installation, commissioning and operating the device along with technical data of the device hardware.

  • Page 7: Copyright

    Any violation and infringement thereto will be held liable for compensation of all damages. 1.6 C ERTIFICATIONS TESTS The product is compliant with section ITC1013 CE Declaration listed documents / standards. Warning: This equipment belongs to class A. It can cause interference in domestic areas. Should this happen, the operator might be required to take appropriate preventive measures.

  • Page 8: Operating Instructions

    Tablet PCs ITC1013 PERATING INSTRUCTIONS This device contains electrical voltages and extremely sensitive components. The manufacturer, or a service partner authorised by the manufacturer, should be consulted if you plan to make any modifications. For this type of work, the device must be switched off at the mains and the power lead must be disconnected.

  • Page 9: Warranty / Repairs

    Tablet PCs ITC1013 2.3 W ARRANTY EPAIRS During the unit warranty period, any repairs thereto must strictly be conducted solely by the manufacturer or by service personnel that has been duly authorised by the manufacturer. 2.4 H ANDLING AND PROPER DISPOSAL OF LITHIUM BATTERIES This device contains a lithium battery to supply the systemclock until there is no power supply connected.

  • Page 10: External Device Dimensions

    Tablet PCs ITC1013 2.6 E XTERNAL DEVICE DIMENSIONS © ads-tec GmbH • Raiffeisenstr.14 • 70771 Leinfelden-Echterdingen...

  • Page 11: Commissioning

    Tablet PCs ITC1013 OMMISSIONING The power supply connection and interfaces of this device are installed at the side of case. All supply leads and all required data leads have to be connected before starting commissioning. Warning: The device must be switched off before connecting or disconnecting any cables in order...

  • Page 12: Readiness For Operation Checks

    Tablet PCs ITC1013 3.2 R EADINESS FOR PERATION HECKS Accurately check the unit for any hidden damages possibly incurred during improper transport and/or handling or wrong operation site and/or storage conditions (e.g. smoke emissions or formation by the unit, etc.). If any damages are found, the unit must be decommissioned or scrapped.

  • Page 13: Front Panel Functions

    Tablet PCs ITC1013 RONT PANEL FUNCTIONS 4.1 S TATUS INDICATORS This device is equipped with different status LEDs in the front. These LEDs indicate current events, like the system activity state, the current accumulator charge status and WLAN activities. YSTEM...
  • Page 14 Tablet PCs ITC1013 WLAN LED INDICATORS Static Device is not connected with a WLAN network Static Device is connected with a WLAN network Flashes Device is connected with a WLAN network and has data traffic LUETOOTH INDICATORS Static Bluetooth module is disabled.

  • Page 15: Front Control Keys

    Tablet PCs ITC1013 4.2 F RONT CONTROL KEYS The keys on the front panel are occupied with the following functions by a specific driver in the soft keyboard: YMBOL UNCTION ON / OFF pushbutton for the device (approx. 0,5 seconds delayed) Shift key (SHIFT) for activating the second keyboard level.
  • Page 16 Tablet PCs ITC1013 Warning: The front control keys should not be operated with a touch stylus but with the fingers, only. Note: All function keys in the front panel, except for the ON / OFF pushbutton and the Fn button, have 2 function levels each. The primary function is activated by simply pushing the respective key.

  • Page 17: Interfaces

    Tablet PCs ITC1013 NTERFACES 5.1 20V DC POWER SUPPLY ECHNICAL DATA OF THE POWER ADAPTER Power consumption: Max. 70 Watts • Input voltage: 100…240 V AC • Mains frequency: 50…60Hz • Current consumption: 3.5A (230V AC) • Max. switch-on current: <...
  • Page 18 Tablet PCs ITC1013 ATTERY STATUS R EPLACEMENT The TT13 batterie es can be removed by using a mechanical ejec ctor on the back of the device. The batteries statu us can be retrieved by pushing a button on the batteries. The batteries...

  • Page 19: Usb Connections

    Tablet PCs ITC1013 5.3 USB CONNECTIONS The USB interfaces are used for connecting peripherals with USB connection. The interfaces comply with the USB 2.0 standard. PIN NUMBER SIGNAL NAME Note: The two side USB ports together have a current limit of 1.5A. This allows trouble-free operation of external devices, like an external DVD drive.

  • Page 20: Odu-Interface ( Optional )

    Tablet PCs ITC1013 5.4 ODU-I NTERFACE OPTIONAL By using the SD Connector, the device can be connected to an Ethernet network (10/100 Mbit). Data throughputs of 10MB can be achieved with a maximum cable length of 5m. Note: This interface does not allow booting via the network. If you want to boot the device via the network connection, we recommend using the LAN interface.
  • Page 21 Tablet PCs ITC1013 : RS232 PIN-NUMBER SIGNAL NAME The SD Connect cable must be connected so that the red markers match. For disconnecting the SD Connect cable, it must be pulled rearwards in the area marked in green. This loosens the snap-in mechanism at the end of the plug.

  • Page 22: Network Connection (Rj45)

    Tablet PCs ITC1013 5.5 N (RJ45) ETWORK CONNECTION If the drivers required for functioning are installed on the device, the control system may be integrated in an Ethernet network supporting the 10/100 Mbit standard by using the Ethernet 10/100BaseT network connector. Specifications of this network topology must be observed in this case.

  • Page 23: Smart -Card Reader ( Optional )

    Tablet PCs ITC1013 5.7 S MART EADER OPTIONAL The device offers a Smart Card Slot which is available at the side. © ads-tec GmbH • Raiffeisenstr.14 • 70771 Leinfelden-Echterdingen...

  • Page 24: Software & Driver Installation

    Tablet PCs ITC1013 & OFTWARE DRIVER INSTALLATION The device will be delivered with a pre-installed Windows operating system on request by the customer. The drivers required for this are already installed and the operating system will be enabled by entering the licence information. Should an initial installation be required, please follow the following steps.

  • Page 25: Power Display

    Tablet PCs ITC1013 6.2 P OWER DISPLAY The power display can be administrated in the system control menu regardless of which operating system is used. 6.3 USB LOCK The existing USB interfaces can be locked by using the USB lock option. USB interfaces can individually be locked as well.

  • Page 26: Ads Tec Rfid Sample Application

    Tablet PCs ITC1013 RFID SAMPLE APPLICATION The proper function of the RFID reader can be verified by using the RFID sample application. 6.6 S OFT KEYBOARD The soft keyboard application allows you to adapt more settings like the appearance, the language layout, the look, etc.

  • Page 27: Screen Mob Settings

    Tablet PCs ITC1013 6.7 S CREEN OB SETTINGS This application is used for safely cleaning the monitor. The touch screen monitor can be blocked in the settings for any period of time. This application is enabled via the Start menu.

  • Page 28: Tt13 Wireless Konfiguration

    Tablet PCs ITC1013 6.8 TT13 W IRELESS ONFIGURATION Hinweis: The application is intended to activate/ deactivate the whole hardware in the device, which is intended for wireless data communication. Die Anwendung dient zur kompletten Aktivierung / Deaktivierung der Hardware im Gerät, welche für drahtlose Datenkommunikation dient.
  • Page 29 Tablet PCs ITC1013 IRELESS ONFIGUR RATION LUETOOTH LASS WITCH © ads-tec GmbH • Raiffeisenstr.14 • 70771 Leinfelden-E Echterdingen...

  • Page 30: Tt13 Touch Rotation

    Tablet PCs ITC1013 6.9 TT13 T OUCH OTATION Note: The service enables the loading for the best configuration for 0° and 90°. If the button landscape/portrait is activated, the switch from 0° to 90 takes effect. Pushing the button again will switch back to 0°.

  • Page 31: Itc1013 Adsxtern Test

    Tablet PCs ITC1013 6.10 ITC1013 ADSXTERN Note: More information for TT13 adsxtern can be seen on the Service-CD. 6.11 M ANUAL EINSTALLATION The following Stepps are only required if a reinstallation of the operating system is necessary. NSTALLATION OF THE OPERATING SYSTEM Install the operating system from a storage.

  • Page 32: Installation Of The Tt13 Software Package

    Once the installation is completed, you can finish the setup by clicking on Finish. If the recommended directory path for installation is used, the ads-tec tools are located Start  Programmes  ITC1013 Tools 6.13 WLAN The device is equipped with a wireless network card. If the operating system supports this card via drivers, the device can be integrated into a Ethernet Network with Support for 11 Mbit or 54Mbit (802.11 a/b/g).
  • Page 33 Tablet PCs ITC1013 ONFIGURATION OF THE OUNTRY The default Installation of the WLAN driver, which is provided by Service-CD, installs the driver with the country code “United States”. The channels 1-11 are used. The country code can be changed later. The following chapter shows how to change the country code.
  • Page 34 Tablet PCs ITC1013 The now showing dialgouebox you have to chosse configure © ads-tec GmbH • Raiffeisenstr.14 • 70771 Leinfelden-Echterdingen...

  • Page 35: Bluetooth

    Tablet PCs ITC1013 Change to the tab Advanced. Choose the country in value to the desired country. 6.14 B LUETOOTH Note: Detailled Information with the keyword Bluetooth can be seen in Windows Help which is located in the path: Start  Help & Support...

  • Page 36: Umts ( Optional )

    Tablet PCs ITC1013 6.15 UMTS ( OPTIONAL The TT13 device is equipped with a mini PCI Express card of the Sierra Wireless MC8792V type. By using the UMTS card, audio and data signals can be transmitted. The following mobile radio network standards are supported by this card:...
  • Page 37 Tablet PCs ITC1013 Insert the SIM card in the SIM card drawer as shown in the picture. Push the SIM card drawer back into the device with the SIM card facing down. © ads-tec GmbH • Raiffeisenstr.14 • 70771 Leinfelden-Echterdingen...

  • Page 38: Camera Optional

    Tablet PCs ITC1013 6.16 C AMERA OPTIONAL The integrated camera gives the opportunity of recording photographic or video data. The camera has the following characteristics: Optical resolution: 1/3.2 inch Pixel size: 2.8 um Max. frame rate: 15fps @ UXGA Effective resolution:...
  • Page 39 Tablet PCs ITC1013 Start the Scanner and camera wizard by clicking on the camera icon. Confirm the message shown by clicking on Next. In the following dialogue window, a picture preview, which allows you to take a photo, will appear on the left-hand side. Once the camera has automatically focussed on the selected object, the photo can be created by pushing the Take photo button.
  • Page 40 Tablet PCs ITC1013 Select a suitable name and storage location in the following dialogue window. Confirm this with Finish. © ads-tec GmbH • Raiffeisenstr.14 • 70771 Leinfelden-Echterdingen...

  • Page 41: Soft Keyboard

    Tablet PCs ITC1013 6.17 S OFT KEYBOARD By using the soft ke eyboard, data can be entered via the touchscree en like with an external keyboard. Note: The soft keyboard of the TT13 device can be delivered in 25 langua ages.
  • Page 42 Tablet PCs ITC1013 UMERIC KEY PAD VIEW Switch to representation of the function-key bar Note: Continuing Information to the Softkeyboard can be taken from the Softkeyboard User Manual. UNCTION KEY BAR VIEW Note: If a function is to be activated, which requires pressing two keys at the same time (e.g.

  • Page 43: Accessories

    Tablet PCs ITC1013 CCESSORIES 7.1 DVD DRIVE EXTERNA AL TYPE OPTIONAL ONNECTION The DVD drive can b be connected to the TT13 device by using the US SB interface. RIVER INSTALLATIO Required drivers wil l be installed automatically, as soon as the DVD d drive is connected with the USB interface.

  • Page 44: Laser Product Safety

    Tablet PCs ITC1013 7.2 L ASER PRODUCT SAFETY This product has been designed and manufactured according to FDA regulations "title 21.CFR. chapter1, subchapter J. based on the Radiation Control for Health and Safety Act of 1968". This product is also classified as a class 1 laser product. There is no hazardous invisible laser radiation during operation, because invisible laser radiation emitted inside of this product is completely confined in the protective housings.

  • Page 45: Transport Case

    Tablet PCs ITC1013 7.3 T RANSPORT The optionally available transport case features protected transport of the device. By the way the transport case offers the opportunity to store accessories like batteries, power supply and Software. Exterior view: © ads-tec GmbH • Raiffeisenstr.14 • 70771 Leinfelden-Echterdingen...

  • Page 46: Battery Charging Station C4/Tt13

    Tablet PCs ITC1013 7.4 B C4/TT13 ATTERY HARGING TATION Optionally there is the opportunity to charge the battery of the device by an battery charging station. The battery charging station features two battery slots. This allows you to charge two batteries parallely.
  • Page 47 Tablet PCs ITC1013 INSERTION OF THE BATTERIES The batteries need to be placed into the battery slots to get a connection between the pins of the battery charging station and the battery. Note: If the battery is placed correctly into the battery charging station a signal tune will sound and the charging process starts.
  • Page 48 Tablet PCs ITC1013 STATUS DISPLAY During operation, different system activities will be displayed. -LED EADY DIPLAY EHAVIOR DESCRIPTION No battery inserted static battery completely charged static battery is defective -LED D HARGE ISPLAY battery is not charging flashing battery is charging...
  • Page 49 Tablet PCs ITC1013 PICTOGRAPHIC ILLUSTRATION Battery is charging Battery completely charged Device is not ready / Defective power supply Battery defective © ads-tec GmbH • Raiffeisenstr.14 • 70771 Leinfelden-Echterdingen...

  • Page 50: Substitution Power Supply

    Tablet PCs ITC1013 7.5 S UBSTITUTION OWER UPPLY Optional a substitution power supply for operating the device is available. 7.6 C OWER UPPLY Optional a car power supply for the device is available. The device can be comfortably supplied with power in vehicles.

  • Page 51: Tt13 Mechanical Ocking Dapter

    Tablet PCs ITC1013 7.8 TT13 M ECHANICAL OCKING DAPTER The available TT13 D 3 Docking offers in combination with the Table Stan tand -/ Wall bracket a stable mounting solu olution for every kind of location. Via the Docking-Co nnector on the backside, the device can be con nnected to a Docking- Station.
  • Page 52 Tablet PCs ITC1013 OUNTING THE EVICE TO THE OCKING 1) The Device needs to be placed on the red marked area behind the turquoise marked area. 2) The Device has to be pressed onto the Docking. The Device should engage perceptible.

  • Page 53: Able Tand

    Tablet PCs ITC1013 7.9 T ABLE TAND The available TT13 Docking offers in combination with the Table Stand -/ Wall bracket a stable mounting solution for every kind of location. Mount the Docking via the supplied M5x30-8.8 SW Inbus screws to the Table Stand.

  • Page 54: Wall Bracket

    2) The Docking needs to be mounted via the supplied M5x30-8.8 SW Inbus screws to the Wall Bracket. 7.11 ITC1013 S UBSTITUTION ACK OF OUCH TYLUS The optional Stand for ITC1013 allows for easy operation anywhere. © ads-tec GmbH • Raiffeisenstr.14 • 70771 Leinfelden-Echterdingen...

  • Page 55: Point Cord

    Tablet PCs ITC1013 7.12 3 P OINT Optional a 3 Point Cord for mobile Work is available. The 3 Point Cord can be mounted directly onto the device and makes the device to a mobile workstation. 1 x DZ-MECH-33255-1 2 x DZ-MECH-33255-2 Flachkopfschr.M5x20, verz.
  • Page 56 Tablet PCs ITC1013 OUNTING THE OINT ORD ONTO THE EVICE 1) First the cord guides need to be mounted. Although the required mounting possibility for left and right handers has to be choosen. Right handed operation: Choose red marking in picture Left handed operation: Choose white marking in picture ©...
  • Page 57 Tablet PCs ITC1013 2) Mount the screws as shown in the picture to marked positions. Note: Tighten the screws with max. 120 Ncm. The Cords should be movable but without loosening the screws. OUNTED IEW FOR RIGHT HANDED OPERATION 3) The Cord can be added via the carabine intro the Cord guides. The Device is prepared for mobile operation.
  • Page 58 Tablet PCs ITC1013 © ads-tec GmbH • Raiffeisenstr.14 • 70771 Leinfelden-Echterdingen...

  • Page 59: Hand Griff

    Tablet PCs ITC1013 7.14 H RIFF Alternativ zum Trag gegurt ist ein Hand Griff für mobiles Arbeiten erh hältlich. Der Hand Griff kann direkt am Gerä ät montiert werden und macht das Gerät zu einem m mobilen Arbeitsplatz. 2 x beigestellte Schr...
  • Page 60 Tablet PCs ITC1013 Hinweis: Ziehen Sie die Sc chrauben mit max. 120 Ncm fest. 3) Montierter Zusta and Hand Griff © ads-tec GmbH • Raiffeisenstr str.14 • 70771 Leinfelden-Echterdingen...

  • Page 61: Odu 10 Pol To Rs232 Adaptercable 1 M

    Tablet PCs ITC1013 7.16 ODU 10 RS232 A POL TO DAPTERCABLE The ODU 10pol. RS232 adapter cable enables the connection of the device via the RS232 interface of the connectable device. 7.17 P ROTECTION EZEL The optional available protection bezel offers protection against transport damage.

  • Page 62: Certifications

    Tablet PCs ITC1013 ERTIFICATIONS 8.1 C ERTIFICATIONS TESTS The product ITC1013 complies with all documents / standards listed in the CA Conformity Declaration section. 8.2 E (EMC) LECTROMAGNETIC COMPATIBILITY Certificate of acceptance in accordance with the Federal Electromagnetic Compatibility Act in Germany ("EMVG") of 2007 (respectively the EMC Directive no.

  • Page 63: Technical Details

    Tablet PCs ITC1013 ECHNICAL DETAILS 9.1 D ISPLAY DATA Display 13.3" TFT, WXGA 1280 x 800 pixels Sunlight Readable (optional) Display colours 262.144 colours Touchscreen Resistive 5-wire touchscreen 9.2 C OMPUTER DATA Processor Intel® Atom Z530P 1,6 GHz 1GB DDR2 SO DIMM...

  • Page 64: Service And Support

    Tablet PCs ITC1013 10 S ERVICE AND UPPORT ads-tec and appointed partner companies offer you comprehensive maintenance and support services, ensuring quick and competent support should you have any questions or concerns with regard to ads-tec products and equipment. ads-tec products may also be provided and installed by partner companies. Such devices may have customised configurations.

  • Page 65: Component Replacement

    Tablet PCs ITC1013 11 C OMPONENT REPLACEMENT Warning: Make sure that all cable connections are removed and that all supply voltages are disconnected from the device! 11.1 O PENING THE SERVICE SLOT Remove the six screws at the service slot on the device rear panel. The screws can be removed by using a size Tx 8 screw driver.
  • Page 66 Tablet PCs ITC1013 Removing the service slot cover gives you the opportunity of replacing the following components: HDD/Flash Lithium battery © ads-tec GmbH • Raiffeisenstr.14 • 70771 Leinfelden-Echterdingen...

  • Page 67: Hdd/Ssd

    Tablet PCs ITC1013 11.2 HDD/SSD ( MASS STORAGE DEVICE REPLACEMENT EMOVAL The pulling aid provided on the HDD should be used for removing the HDD from the device. Please pull the HDD carefully out. NSTALLATION The HDD must carefully be lowered into the slot and then pushed down until you feel that it has snapped in.

  • Page 68: Replacing The Lithium Battery

    Tablet PCs ITC1013 11.3 R EPLACING THE LITHIUM BATTERY NSTALLING REPLACING THE BATTERY 1) Now the lithium battery can be removed. It must only be replaced by the same battery type. The type of battery to be used is: Lithium battery CR2032 230mAh (e.g.

  • Page 69: Ce Conformity Declaration

    Tablet PCs ITC1013 12 CE CONFORMITY DECLARATION Gloss ar y ITC1013 © ads-tec GmbH • Raiffeisenstr.14 • 70771 Leinfelden-Echterdingen...
