Congratulations on your purchase of high quality Phoenix Gold
audio electronics. At Phoenix Gold our highest concern is musical
reproduction. We appreciate that you chose our product. Through
years of engineering expertise, hand craftsmanship and critical testing
procedures, we have created a wide range of products to give your
system all the clarity and richness you deserve.
Please read your warranty and retain your receipt and original carton for
possible future use.

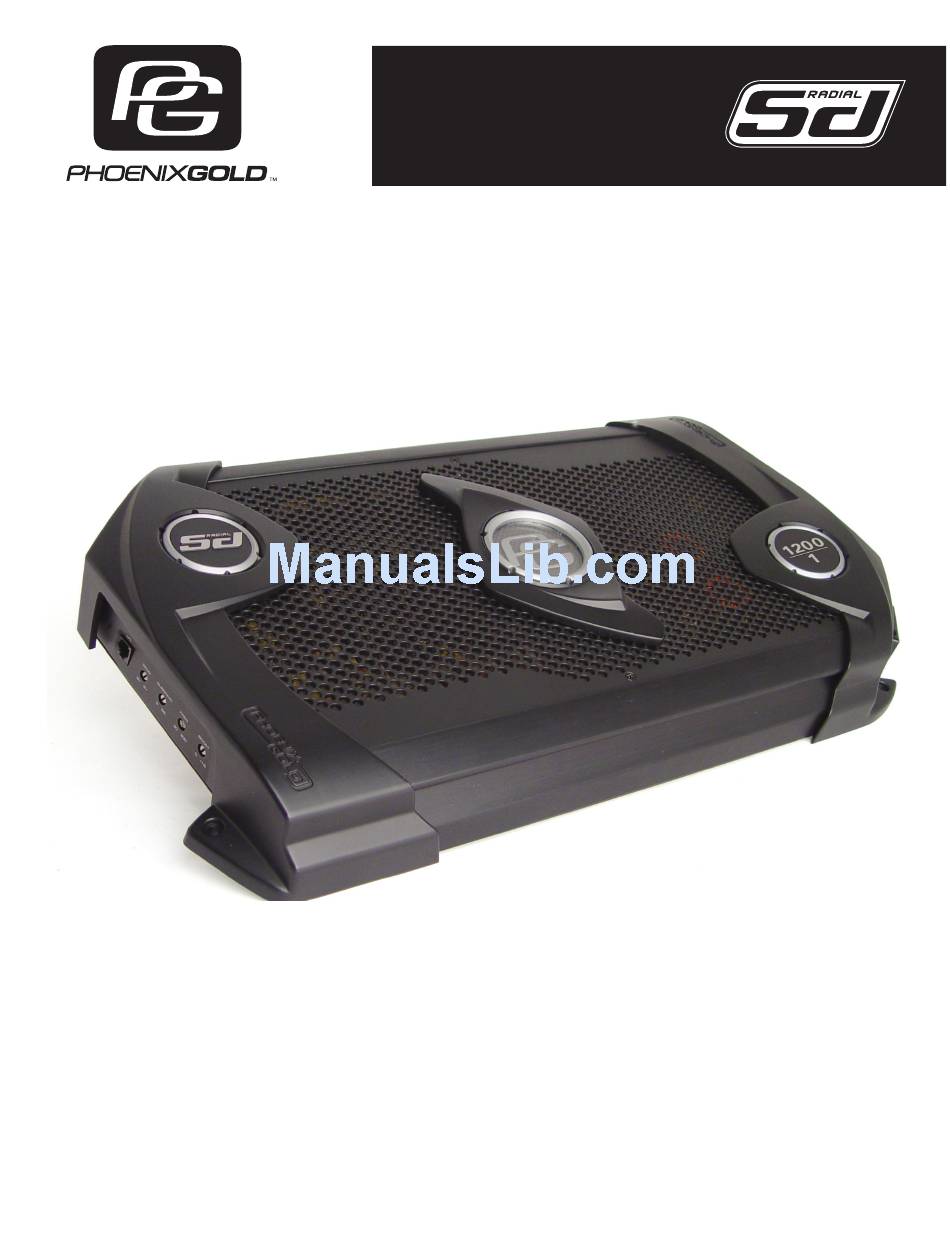

MONOBLOCK AMPLIFIER
OWNER'S MANUAL
Great product and competent installations are only one piece of the
puzzle when it comes to your system. Make sure that your install is
using only the best installation accessories. Phoenix Gold manufactures
everything from RCA cables and speaker wire to power/ground cable
and battery connectors. With proper installation and accessories your
system will sound the best that it can.
For more information about Phoenix Gold electronics, speakers and
accessories please visit www.phoenixgold.com
FOR MODELS:
RSd1200.1
