DVD Player / DVB-T recorDer
ENERGY
D2900
Manual de Usuario / User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the D2900 and is the answer not in the manual?

Questions and answers

Summary of Contents for ENERGY SISTEM D2900

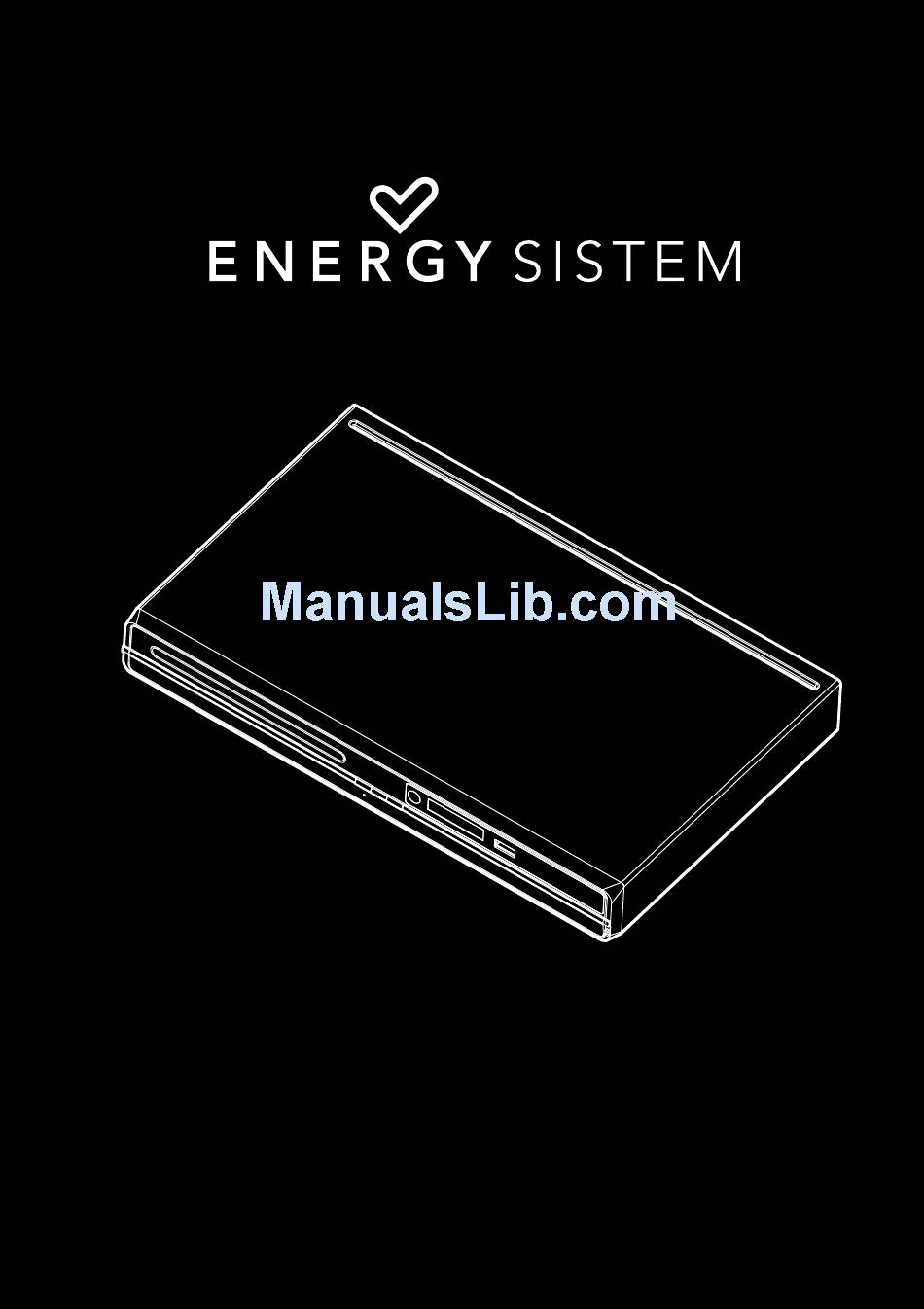

  • Page 1 DVD Player / DVB-T recorDer ENERGY D2900 Manual de Usuario / User Manual...
  • Page 3 Manual de Usuario...
  • Page 5: Instrucciones De Seguridad

    No coloques fuentes de llama desnuda, como velas, en la parte superior del D2900. Ventilación Las ranuras y aberturas en el D2900 son para la ventilación. No las cubras o bloquees, ya que puede causar un sobrecalentamiento. NUNCA permitas que los niños introduzcan nada en los orificios o ranuras.
  • Page 6 Cuidado del D2900 Colocar el producto en un lugar ventilado. No exponer al frío o a la luz solar. Dejar 10 cm. como mínimo entre No desmontar el producto. el receptor y otros elementos. No colocar recipientes con líquido sobre el receptor.
  • Page 7: Panel Frontal

    2. PANEL FRONTAL BANDEJA DE DISCO. POWER: Botón para encender y apagar el dispositivo. OPEN/CLOSE: Abre/cierra la bandeja de disco. PLAY/PAUSE: Pausa/reanuda la reproducción. SENSOR MANDO A DISTANCIA: Recibe la señal del mando a distancia. Pantalla LED. PUERTO USB: Conecta tus hubs/lectores de tarjetas/dispositivos de almacenamiento externo USB.
  • Page 8: Mando A Distancia

    4. MANDO A DISTANCIA 4.1. Descripción de los botones STANDBY: Enciende/apaga (modo espera) el D2900. MUTE: Activa/desactiva el sonido. REV: Retroceso. FWD: Avance. SETUP: Menú de configuración. CH+/-: Desplazamiento por las pantallas del menú o cambiar los canales. STANDBY MUTE OPEN/CLOSE VOL+/-: Desplazamiento por las pantallas del menú o cambiar el volumen.
  • Page 9: Instalación De Las Pilas

    4.2. Instalación de las pilas Retira la tapa de las pilas en el mando a distancia y coloca pilas de tipo AAA. El siguiente diagrama indica la forma correcta de insertar las pilas. 1. Abrir la tapa 2. Instalar pilas 3. Cerrar la tapa 4.3. Utilizando el mando a distancia Para utilizar el mando a distancia, dirígelo hacia la parte frontal del receptor.
  • Page 10 5. CONEXIONES Precaución: Asegúrate que la tensión de la toma de corriente es la misma que la del receptor. Para evitar el riesgo de descargas eléctricas no abras la tapa o la parte trasera del receptor. Al conectar el receptor a otro equipo, por ejemplo: TV, VCR o amplificador, consulta antes la informa- ción correspondiente.
  • Page 11: Primera Instalación

    6. FUNCIONAMIENTO BÁSICO TDT 6.1. Primera instalación Después de haber realizado correctamente la conexión presiona POWER y selecciona el modo TV. Si se está utilizando por primera vez aparecerá la pantalla de “Primera Instalación”. Usa el mando a distancia para controlar el proceso de instalación. Pulsa OK para entrar en el asistente de instalación.
  • Page 12: Programación Del Sistema

    Agrega canales a los ya memorizados. Debes especificar un rango de frecuencias de búsqueda. 6.4. Configuración sistema TDT 6.4.1. País Selecciona el país donde se está usando el D2900. 6.4.2. I dioma Establece el idioma de audio predeterminado y el segundo idioma en todos los canales.
  • Page 13 Esta característica permite al D2900 grabar automáticamente los programas indicados. El número total de tareas disponibles es de 10. Opciones disponibles en cada tarea: ≥ Frecuencia: única, diaria, semanal. ≥ Activa/Desactiva. ≥ Tiempo de inicio y fin de la grabación ≥...
  • Page 14: Configuración Idioma

    Pasos generales de configuración. Presione el botón [SETUP] para hacer aparecer el MENÚ principal y selecciona DISCO. Pulsa <INFO> para visualizar la barra de información e indicadores como tiempo de reproducción, tiempo restante, y atributos de del DVD en reproducción. 7.1. Configuración Idioma Nota: Si el idioma preseleccionado no está...
  • Page 15: Configuración De Idioma

    Establece la resolución de la salida HDMI dependiendo de las soportadas por la TV conectada. 480i - 480p - 576i - 576p - 720p - 1080i - 1080p Nota: Para que este menú esté habilitado el D2900 tiene que estar conectado por cable HDMI a la TV. 8.3. Preferencias 8.3.1. Cambiar PIN...
  • Page 16: I Nformación Del Sistema

    Restaura todos los valores de fábrica y elimina tus configuraciones personalizadas. 8.3.4. I nformación del sistema La información incluye el modelo, HW, SW y la fecha. 9. REPRODUCCIÓN DE ARCHIVOS MULTIMEDIA El D2900 soporta la mayoría de ficheros multimedia en los siguientes formatos: Audio: MP3, MP2, WMA Video: DviX, Xvid, MPG, DAT, AVI Foto: JPEG Los archivos pueden ser reproducidos desde un disco/USB, selecciona la carpeta/archivo deseado y pulse PLAY en el mando para comenzar su reproducción.
  • Page 17: Especificaciones

    10. ESPECIFICACIONES Elemento Especificación Sintonizador Rango de frecuencias VHF: 174 — 230 MHz / UHF: 470 — 862 MHz Impedancia de entrada 75 Ohms Nivel de señal de entrada -78 — -25 dbm Ancho de banda 7/8 MHz Modulación Demodulación COFDM Modulación OFDM 2k, 8k FFT, SFN y MFN...
  • Page 18: Marcas Comerciales

    Durante un periodo de 36 meses a partir de la fecha de la primera compra del producto por el con- sumidor, de conformidad con el RDL 1/2007, Energy Sistem Soyntec S.A. responderá ante cualquier falta de conformidad que exista en el momento de la entrega del Bien, en los términos y bajo las condiciones establecidas en la citada norma.
  • Page 19: Declaración De Conformidad

    Fax: 902 119 034 Declaramos bajo nuestra exclusiva responsabilidad la conformidad del producto: Energy Sistem® Reproductor DVD y Sintonizador/Grabador TDT Energy™ D2900 País de fabricación: China Al que se refiere esta declaración, con la(s) norma(s) u otros documento(s) normativo(s) de acuerdo con las disposiciones de la Directiva 93/68/CEE, del Parlamento Europeo y del Consejo de 22 julio de 1993, transpuesta a la legislación española mediante el Real Decreto 1950/1995, de 1 de Diciembre...
  • Page 21 User Manual...
  • Page 23: Safety Considerations

    1. INTRODUCTION To ensure your safety and the safety of others, please ensure that you read all the safety information before operating this product. Keep this information in a safe place for future reference. This symbol indicates that this product incorporates double insulation between hazardous mains voltage and user accessible parts.
  • Page 24 ALWAYS unplug the set top box before you clean it. Do not use liquid or aerosol cleaners. Clean the set top box with a soft, damp (not wet) cloth. D2900 handling and care Place the product in a well-ventilated area Don’t install it in the cold or under direct sunlight...
  • Page 25: Front Panel

    2. FRONT PANEL DISC TRAY. POWER: Used to switch the set top box ON or STANDBY. OPEN/CLOSE button. PLAY/PAUSE button. REMOTE CONTROL SENSOR: Used to receive the signal from the Infrared (IR) remote control. LED display. USB CONNECTOR: Used to attach your external USB hub/card reader/storage device. 3. REAR PANEL CAUTION RISK OF ELECTRIC SHOCK...
  • Page 26: Remote Control

    4. REMOTE CONTROL 4.1. Button descriptions STANDBY: Switch the set top box between on and standby mode. MUTE: Mute/unmute the sound. REV: Fast backward at selectable speeds. FWD: Fast forward at selectable speeds. SETUP: Open the setup menu window. CH+/-: Move around the menu screens or change the channels in normal STANDBY MUTE OPEN/CLOSE...
  • Page 27: Installing The Batteries

    4.2. Installing the Batteries Remove the battery cover from the remote control and put 2xAAA size batteries inside the compartment. The diagram inside the battery compartment shows the correct way to install the batteries. 1. Open the cover 2. Install the batteries 3.
  • Page 28 5. CONNECTIONS Caution: Make sure to check that the voltage of the wall outlet has the same rating than the receiver. To prevent the risk of electric shock, do not open the cover or the back of the receiver. When connecting the receiver to other equipment (e.g. TV, VCR and amplifier) make sure to refer to relevant user manual for instruction.
  • Page 29: First Time Installation

    6. THE SETUP MENU SYSTEM - DVB PART 6.1. First Time Installation After all the connections have been made properly, switch on your TV. Make sure the receiver is connected to the mains and press [POWER] to switch the receiver on then press the [SOURCE] button to switch to DVB reception. The [SOURCE] button is used to switch between DVD, DVB and USB mode.
  • Page 30: System Settings

    England or France. 6.3. Program search 6.3.1. Automatic Search Choose the Automatic Search and the D2900 will scan default frequency and bandwidth by Country Setting. 6.3.2. M anual Search If any channel is missing after auto search, or you want to add newly launched channels, you can use Manual Search to scan the desired channels.
  • Page 31: System Schedule

    Select local time when the hourly automatic setting is off. If you know where you are (with respect to GMT) time zone you select off, the appropriate time zone. If not is enabled auto zone time so that the D2900 automatically update the time zone through the information present in the DVB-T signal.
  • Page 32: Epg (Electronic Program Guide)

    6.6.1. My recordings To play recorded programs press SOURCE in the remote control and select the file with up/down buttons, then press OK to play it. To delete a recording, press the red button on the selected record and confirm. 6.6.2. P VR Settings Record Device ≥...
  • Page 33: System Setting

    Press [OK] to confirm. If the disc you are playing has that language available, it will output the language. 7.1.3. Subtitle Highlight the SUBTITLE option, and press the [OK] and [UP/DOWN] button to choose the subtitle language you prefer. Press [OK] to confirm. If the disc you are playing has that language available, it will display subtitles in that language.
  • Page 34: Display Setup

    Set the HDMI resolution according to the available modes on the connected TV. 480i - 480p - 576i - 576p - 720p - 1080i - 1080p Note: This menu is enabled only then the D2900 is connected to a TV by HDMI. 8.3. Preference 8.3.1. Change PIN...
  • Page 35 9. MULTIMEDIA FILES PLAYBACK D2900 supports the most common multimedia formats. Audio: MP3, MP2, WMA Video: DviX, Xvid, MPG, DAT, AVI Pictures: JPEG When a MP3 is in playback mode, the screen will display related information. Press [UP/DOWN] button to select the file when the cursor appears in the file window. Press select to play the current file select by the cursor.
  • Page 36: Specifications

    10. SPECIFICATIONS Item Specification Tuner Frequency range VHF: 174 — 230 MHz / UHF: 470 — 862 MHz Input Impedance 75 Ohms unbalanced Signal input level -78 — -25 dbm Bandwidth 7/8 MHz Modulation Demodulator COFDM OFDM Modulation 2k, 8k FFT, SFN and MFN Connectors RF in IEC 169-2 female connector...
  • Page 37: Warranty Procedure

    WARRANTY Energy Sistem Soyntec S.A. warrants its products to be free from defects in materials and workman- ship at the time of purchase. The warranty period is 36 months from the date of purchase for DVB-T STB receivers. WARRANTY PROCEDURE ≥...
  • Page 40 www.energysistem.com...
