Summary of Contents for AWS WeatherBug
-
Page 1: Weather Station
Weather Station Digital Display User’s Manual Version 1.5 November 2004... -
Page 2: Page Copyright
The software may be used or copied only in accordance with the terms of this agreement. It is against the law to copy AWS Convergence Technologies, Inc., software onto magnetic tape, disk or any other medium for any purpose other than for the purchaser's personal use. -
Page 3: Table Of Contents
Digital Display Manual TABLE OF CONTENTS Page Copyright ......................1 SECTION 1: WeatherBug System Overview ............ 3 2.1 Unpacking ......................5 2.2 Choosing a Site to Locate Your Display............. 5 2.3 Installing the Digital Display ................6 SECTION 3: Operation of the Digital Display ..........7 3.1 Current Conditions .................... -
Page 4: Section 1: Weatherbug System Overview
Educational Lessons Figure 1 - WeatherBug System Schematic The WeatherBug Weather Station is located outdoors, usually on a rooftop or in an open, unobstructed area to obtain best results. The Weather Station includes a Wind Sensor to monitor the wind, a Rain Gauge to measure liquid precipitation, a photocell to measure light and a Sensor Shelter which houses the Temperature/Relative Humidity (TRH) sensors. - Page 5 Rainfall .02 cm *WeatherBug Weather Station records wind speeds well in excess of 99 mph or 99 km/h, and will show these higher values in the computer software. For more information on sensor specifications, see “WeatherBug System Installation, Operations and...
-
Page 6: Unpacking
SECTION 2: Installing the Digital Display As shown in Figure 1, your Digital Display must be connected to the overall WeatherBug Weather Station through the Master Control Unit (MCU). This section of the manual will describe the steps necessary to install and connect your display to the MCU. -
Page 7: Installing The Digital Display
A MCU can power up to 10 displays totaling 700 feet (ie. 10 x70 feet = 700 feet). Additional displays can easily be purchased from your WeatherBug Representative by calling 1-800-544-4429. 2.3 Installing the Digital Display Once you have chosen a site to place your Digital Display, the final installation is relatively simple. -
Page 8: Section 3: Operation Of The Digital Display

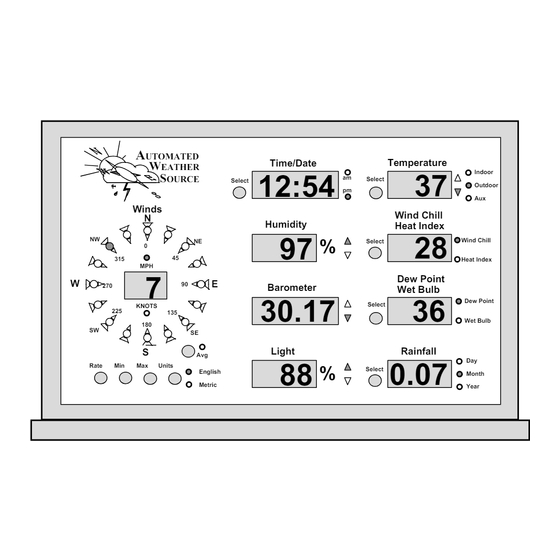

Digital Display Manual SECTION 3: Operation of the Digital Display This section of the manual will provide a detailed description of all the features of the Digital Display and their uses. Much of the discussion will refer to the schematic of the display shown in Figure 2. UTOMATED Time/Date Temperature... - Page 9 Table 1 provides a summary of all values that can be displayed, measured or calculated by the WeatherBug Weather Station (indicated by X's in the table). The paragraphs that follow will describe the manner in which each of the values is displayed on the Digital Display.
-
Page 10: Current Conditions
Pressing the "Select" button again will cause the display to be fixed on the value it was displaying at the time. If the time and/or date indicated is incorrect, please call WeatherBug Weather Station Technical Support at (800) 624-4205 to have Technical Support remotely set the time and date. - Page 11 3.3 and 3.4 of this manual. Temperature The WeatherBug Weather Station includes three temperature sensors. The outdoor temperature sensor is located outdoors in the Sensor Shelter. The Indoor Temperature Sensor located within the MCU. The location of the Optional Auxiliary Temperature Sensor may vary from site to site.
- Page 12 Digital Display Manual By default, the Digital Display will cycle between the indoor, outdoor and auxiliary temperature (about three seconds per value). Three small circular indicator lights are located to the right of the temperature readout box, labeled "Indoor", "Outdoor", and "Aux". These lights indicate which temperature value is currently being displayed.
- Page 13 Rainfall The WeatherBug Weather Station monitors and records daily, monthly and yearly rainfall totals. The rainfall readout box on the Digital Display is located in the lower right region of the unit. Rainfall values can be displayed in the English units of degrees inches (in) or the Metric units of centimeters (cm).
- Page 14 The number in the readout box indicates the speed of that wind. The WeatherBug Weather Station also computes the average wind speed and direction over a two-minute period. Since wind speed and direction often change significantly in short periods of time the averaged values provide a better indication of the predominant conditions.
-
Page 15: Changing Display Units
To change the English wind speed units from miles per hour (mph) to knots or vice versa, you must send the display unit back to WeatherBug Technical Support via an RMA. Please call WeatherBug Weather Station Technical Support at 800-624-4205 for assistance. -
Page 16: Daily Minimum And Maximum Values
Digital Display Manual change of relative humidity expressed in percent per hour (%/hr). A positive rate means humidity is increasing. A negative rate means humidity is decreasing. 3.4 Daily Minimum and Maximum Values As shown in Table 1, the Digital Display unit records and displays daily highs and lows for several weather variables. -
Page 17: Section 4: Trouble Shooting Your Digital Display
5. Time and/or date incorrect Call WeatherBug Technical Support Table 3: Troubleshooting Guide If you have any questions regarding your Digital Display, you may call the WeatherBug Weather Station Technical Support line at (800) 624-4205 or reach help via email at support@aws.com.
