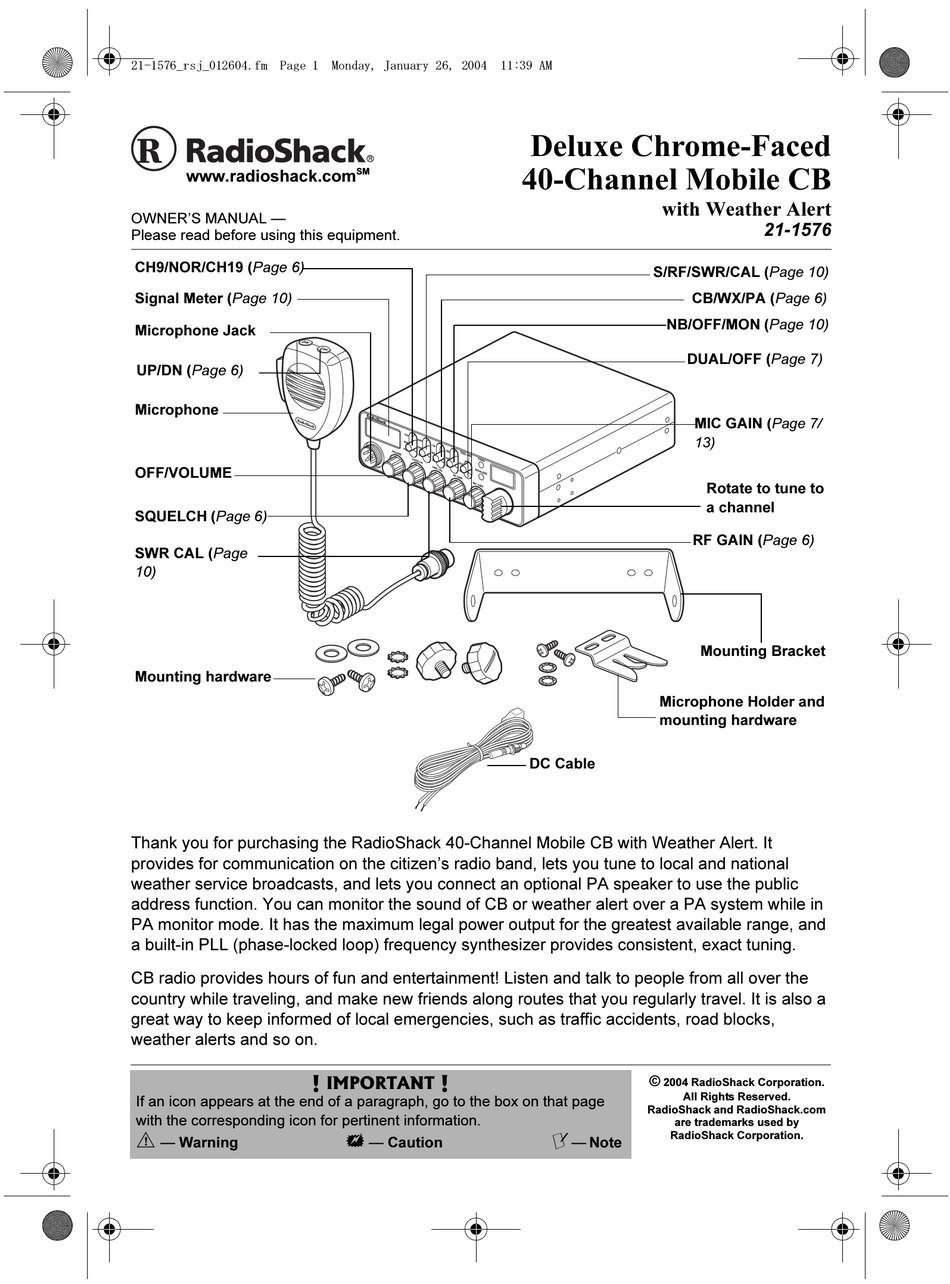

21-1576_rsj_012604.fm Page 1 Monday, January 26, 2004 11:39 AM
www.radioshack.com
OWNER'S MANUAL —
Please read before using this equipment.
CH9/NOR/CH19 (Page 6)
Signal Meter (Page 10)
Microphone Jack
UP/DN (Page 6)
Microphone
OFF/VOLUME
SQUELCH (Page 6)
SWR CAL (Page
10)
Mounting hardware
Thank you for purchasing the RadioShack 40-Channel Mobile CB with Weather Alert. It
provides for communication on the citizen's radio band, lets you tune to local and national
weather service broadcasts, and lets you connect an optional PA speaker to use the public
address function. You can monitor the sound of CB or weather alert over a PA system while in
PA monitor mode. It has the maximum legal power output for the greatest available range, and
a built-in PLL (phase-locked loop) frequency synthesizer provides consistent, exact tuning.
CB radio provides hours of fun and entertainment! Listen and talk to people from all over the
country while traveling, and make new friends along routes that you regularly travel. It is also a
great way to keep informed of local emergencies, such as traffic accidents, road blocks,
weather alerts and so on.
If an icon appears at the end of a paragraph, go to the box on that page
with the corresponding icon for pertinent information.
o
— Warning
SM
!
!
IMPORTANT
— Caution
Deluxe Chrome-Faced
40-Channel Mobile CB
with Weather Alert
S/RF/SWR/CAL (Page 10)
CB/WX/PA (Page 6)
NB/OFF/MON (Page 10)
DUAL/OFF (Page 7)
MIC GAIN (Page 7/
13)
RF GAIN (Page 6)
Mounting Bracket
Microphone Holder and
mounting hardware
DC Cable
©
2004 RadioShack Corporation.
All Rights Reserved.
RadioShack and RadioShack.com
are trademarks used by
RadioShack Corporation.
Ô
— Note
21-1576
Rotate to tune to
a channel
