SM
www.radioshack.com

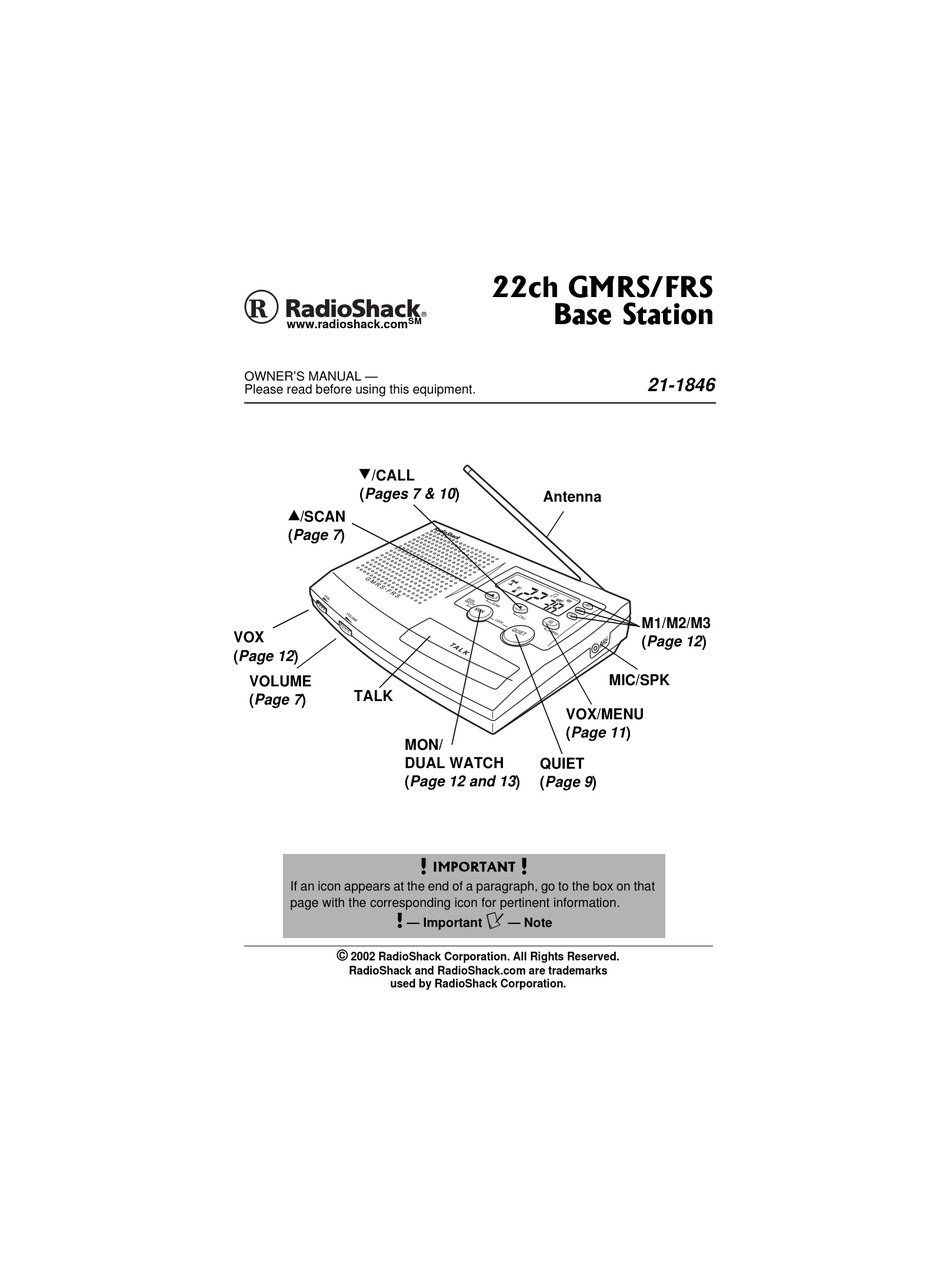

OWNER'S MANUAL —
Please read before using this equipment.
d/CALL
(Pages 7 & 10)
e/SCAN
(Page 7)
VOX
(Page 12)
VOLUME
TALK
(Page 7)
MON/
DUAL WATCH
(Page 12 and 13)
If an icon appears at the end of a paragraph, go to the box on that
page with the corresponding icon for pertinent information.
!
— Important
©
2002 RadioShack Corporation. All Rights Reserved.
RadioShack and RadioShack.com are trademarks
used by RadioShack Corporation.
22ch GMRS/FRS
Base Station
Antenna
VOX/MENU
(Page 11)
QUIET
(Page 9)
!
!
IMPORTANT
Ô
— Note
21-1846
M1/M2/M3
(Page 12)
MIC/SPK

Advertisement

Table of Contents
loading

Related Manuals for Radio Shack 22CH GMRS/FRS

Summary of Contents for Radio Shack 22CH GMRS/FRS

  • Page 1 If an icon appears at the end of a paragraph, go to the box on that page with the corresponding icon for pertinent information. — Important © 2002 RadioShack Corporation. All Rights Reserved. RadioShack and RadioShack.com are trademarks used by RadioShack Corporation. 22ch GMRS/FRS Base Station 21-1846 Antenna M1/M2/M3 (Page 12) MIC/SPK...

  • Page 2: Table Of Contents

    FEATURES CONTENTS Preparation ... 4 Thank you for purchasing the Selecting a RadioShack 22ch GMRS/FRS Base Location ... 4 Station. Your radio is a new two-way, Using AC Power ... 4 short-range voice radio service that lets Mounting on families and groups keep in touch with a Wall ...
  • Page 3 Combined Mic/Speaker Jack — lets you connect an optional microphone/ speaker to the radio. Monitor Function — lets you hear everything on a channel, even weak transmissions. The FCC Wants...

  • Page 4: Preparation

    • Consult your local SING RadioShack store or Power the radio using the supplied 6V, an experienced radio/TV technician 500 mA AC adapter. for help. Your radio is UL listed to ETL •...
  • Page 5 6V DC and delivers at least 500 mA. Its center tip must be set to positive and its plug must fit the radio's DC 6V 500 jack. The supplied adapter meets these specifications. Using an adapter that does not meet these specifications could damage the radio or the adapter.

  • Page 6: Mounting On

    DC 6V This device complies 500mA with Part 15 of the FCC jack on the back of the radio. Rules. Operation is subject to the following 2. Route the adapter cord into the two conditions: (1) this groove on the back of the radio.

  • Page 7: Operation

    AC outlet. 4. Place the radio’s two keyhole slots over the screws and slide the unit down to secure it. 5. Raise the antenna to a vertical position.
  • Page 8 Transmit Frequencies and Power Transmit Transmit 21-1846 Frequency Power Channel (MHZ) (Watts) 462.5625 462.5875 462.6125 462.6375 462.6625 462.6875 462.7125 467.5625 467.5875 467.6125 467.6375 467.6625 467.6875 467.7125 462.5500 462.5750 462.6000 462.6250 462.6500 462.6750 462.7000 462.7250 Description FRS 1/GMRS Interstitial 1 FRS 2/GMRS Interstitial 2 FRS 3/GMRS Interstitial 3 FRS 4/GMRS Interstitial 4 FRS 5/GMRS Interstitial 5...

  • Page 9: Using Quiet Codes

    When you set a quiet code (there are 38 codes to choose from) and turn on this feature, you can communicate with any user who has a radio set to the same channel and quiet code. 1. Hold down until the quiet QUIET code flashes.

  • Page 10: Using Talk

    18=123.0 09=91.5 19=127.3 10=94.8 20=131.8 TALK SING To transmit through the radio, hold down normal voice. ¬ appears. When you finish speaking, release TALK SING Hold down to send a page to other GMRS/FRS radios set CALL to the same channel (and quiet code, if you selected one). ¬...

  • Page 11: Using Key Lock

    Then hold down SCAN until appears. When SCAN the radio receives a signal from a radio with the same quiet code, the radio stops scanning. Scanning resumes after the signal disappears. 2. Press any key to stop scanning.

  • Page 12: Using Skip

    To adjust the radio’s sensitivity, rotate clockwise for quiet conditions or counterclockwise if you are in a noisy environment. SING When the radio is set to scan all the channels automatically, you can skip unnecessary channels. Follow these steps to skip channels: 1. Hold down...

  • Page 13: Using Dual Watch

    SING ATCH You can set your radio to monitor both the current channel and one of the channels stored in , or . To use dual watch, hold down DUAL press , or appears and the two channels appear alternately.

  • Page 14: Using The Key Tone

    SING THE You can set the radio so it sounds a tone when you press any key except . To turn on the key tone, hold TALK down VOX/MENU enter menu mode. Then press again until MENU when the key tone is on and when it is off.

  • Page 15: Care

    MIC/SPK the right side of the radio. CARE • Keep the radio dry; if it gets wet, wipe it dry immediately. • Use and store the radio only in normal temperature environments. • Handle the radio carefully; do not drop it.

  • Page 16: Specifications

    SPECIFICATIONS RF Output Power ... 500/600 mW EPR (Continued) In the event of a product defect during the warranty period, take RX Frequency ... 462.5500–467.7125 MHz the product and the RadioShack sales receipt as proof of purchase date to Channels ... 22 any RadioShack store.
