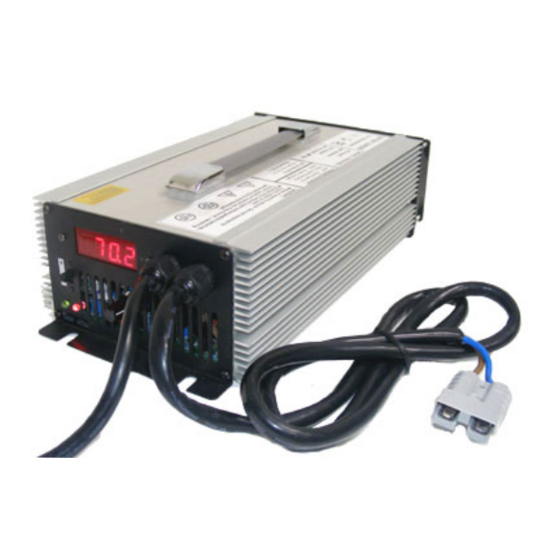

User Manual of Universal Smart Charger (18A, 29.6V-58.4V Cut-Off) for 36V- 48V SLA , 29.6V-51.8V Li-Ion/LiMnNi (8-14 Cells),38.4V- 51.2V LFP(12-16 Cells) -- CE listed AA Portable Power Corp (http://www.batteryspace.com) Address: 860 S, 19 St, Unit A, Richmond, CA, 94804 Tel: 510-525-2328 Fax: 510-439-2808 Email: Sales@batteryspace.com...
Page 2
Warning Must select AC input voltage correctly before plug to • Wall AC outlet Must connect to battery with correct polarity • Must use with battery pack capacity >= 18Ah • Must use with SLA (36V-48V, 18-24Cells), Li- • Ion/LiMnNi (29.6V-51.8V, 8-14Cells), LifePO4 (38.4V- 51.2V, 12-16Cells) Battery Must select charging voltage correctly based on •...
Page 3
Features: • High Quality Intelligent smart charger (Manufacture part#KP4818CL) designed for SLA (36V-48V, 18-24Cells), Li-Ion/LiMnNi (29.6V-51.8V, 8-14Cells), LifePO4 (38.4V- 51.2V, 12-16Cells) Battery pack • Adjustable Charging voltage from 29.6-58.4VDC • Must select charging voltage correctly based on battery used below Li-Ion / LiMnNi = 4.17V / cell Ex.
Page 4
• Dimension (LxWxH): 260mm(10.2") x 175mm(6.9") x 90(3.5") • Weight: 9.9 lbs (4.5kg) • High Efficiency: 85-95% • MTBF (Mean Time between Failure): 30,000 POH (Power on Hour) = 10 years of everyday operation of 8 hours • CE listed •...
Page 6
Detail Picture Front View Note - MUST Set Charging Voltage CORRECTLY Before connect to battery. - Don’t reset charging voltage while charging. - Wrong charging voltage setting may explode battery. BatterySpace don’t responsible for any damage from any miss-use - 57.9VDC Maximum charging voltage can be set after power turn “On”.
Page 7
Back View Note - MUST Select AC INPUT Voltage Correctly Before plug to Wall AC outlet Note - For USA customer, MUST SELECT to “115VAC Input Switch Position”...
Connector Detail Charging Terminal: 1.9" x 1.5" x 0.6" Standard Anderson connector Included 1 pcs 1.9" x 1.5" x 0.6" Polarity assignment & wire soldering location Standard Anderson connector for DIY use Included Standard Anderson Note: -Wrong polarity will damage the charger, and Batteryspace are not responsible for the damage or losses caused by misusing...
