- Page 1 PT1545R / PT1545P Touch Screen Monitor USER’S GUIDE www.planar.com...
-
Page 2: Important Recycle Instructions
Recycle or dispose in accordance with local, state, or federal laws. For more information, contact the Electronic Industries Alliance at WWW.EIAE.ORG. For lamp specific disposal information check WWW.LAMPRECYCLE.ORG. For more information on how to recycle your product, please visit WWW.PLANAR.COM/GREEN. -
Page 3: Table Of Contents
Table of Contents Usage Notice Precautions ..........................1 Introduction About PT1545R/PT1545P ..................... 2 Touch Screen for PT1545R ....................3 Touch Screen for PT1545P ....................3 Package Overview ......................... 4 Installation Product Overview ........................5 Front View .......................... 5 PT1545R Bottom View (Without Stand) ................ -
Page 4: Usage Notice
Usage Notice Warning - To prevent the risk of fire or shock hazards, do not expose this product to rain or moisture. Warning - Please do not open or disassemble the product as this may cause electric shock. Precautions Follow all warnings, precautions and maintenance as recommended in this user’s manual to maximize the life of your unit. -
Page 5: About Pt1545R/Pt1545P

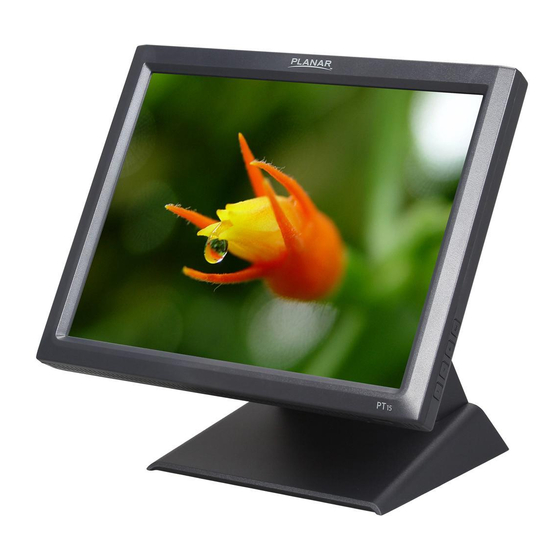

Introduction About PT1545R/PT1545P The PT1545R/PT1545P is a 15" flat panel screen with an active matrix, thin-film transistor (TFT) liquid crystal display (LCD). This unit is to be used as commercial and light industrial equipment only. Features include: • Direct Analog signal input •... -
Page 6: Touch Screen For Pt1545R
Touch Screen for PT1545R • 5-wire resistive touch screen for finger and stylus input • Surface: Anti-glare treatment • Interface: Dual RS-232 Serial/USB controller • Transmittance: 82%±5% • HID: Windows® 7/8 • Driver: Windows® 7/8, VISTA, XP, 2000, ME, 98, NT 4.0, CE, XP Embedded, Linux kernel 2.6.x (32 bit &... -
Page 7: Package Overview
Package Overview LCD Display Power Cord VGA Signal Cable USB Cable ( A to B) RS-232 Cable Audio-in Cable (PT1545R only) Landing Strip User’s Guide Cable Cover Screw... -
Page 8: Installation
Installation Product Overview • Front View • PT1545R Bottom View (Without Stand) AUDIO AC IN RS-232 POWER SWITCH • PT1545P Bottom View (Without Stand) AC IN POWER SWITCH... -
Page 9: Start Your Installation
Start Your Installation Please follow these instructions so that you can hookup the cables to associated connector. 1. Lay the display flat on an even surface. 2. Move the stand into position as seen in the step 2 diagram. 3. Remove the cable cover as seen in the step 3 diagram. 4. -
Page 10: Connecting The Display (Figure 8.1)
Connecting the Display (Figure 8.1) To setup this display, please refer to the following figure and procedures. 1. Be sure all equipment is turned off. 2. Connect the AC power cord to the power connector on the monitor and the other end into an electrical outlet (8.1). -
Page 11: (Figure 8.1)
(Figure 8.1) PT1545R PT1545P... -
Page 12: Kensington Security Slot
Kensington Security Slot The monitor can be secured to your desk or any other fixed object with Kensington lock security products. The Kensington lock is not included. -
Page 13: Vesa Mount Your Monitor
VESA Mount Your Monitor This monitor conforms to the VESA Flat Panel Mounting Physical Mounting Interface standard which defines a physical mounting interface for flat panel monitors, and corresponding with the standards of flat panel monitor mounting devices, such as wall and table arms. The VESA mounting interface is located on the back of your monitor. -
Page 14: Remove The Deskstand
Remove the Deskstand Remove 4 screws and then remove hinge. -
Page 15: User Controls
User Controls Side Panel Controls Icon Key Name Menu Down Enter Power Menu off status Menu on status Menu appear Menu disappear/ return to main item Brightness Main item select up/ Adjust up Mute Main item select down/ Adjust down Enter/Select sub-item function Power On/Off... -
Page 16: How To Use The Osd Menus
How to Use the OSD Menus Icon Key Name Menu Down Enter Power 1. Press the “MENU” button to pop up the “on-screen menu” and press “Up” or “Down” button to select among the six functions in the main menu. 2. -
Page 17: On-Screen Display Menus
On-Screen Display Menus Main OSD Menu: ITEM CONTENT Contrast The monitor luminance level control. Brightness The monitor backlight level control. Auto Adjust Fine-tune the image to full screen automatically. Left/Right Moving screen image horizontal position to left or right. Up/Down Moving screen image vertical position to up or down. -
Page 18: Appendix
Appendix Troubleshooting If you are experiencing trouble with the display, refer to the following. If the problem persists, please contact your local dealer or our service center. Problem: No image appears on screen. ► Check that all the I/O and power connectors are correctly and well connected described in the "Installation"... -
Page 19: Warning Signal
Below are the three kinds of Warning Signal. Please check the cable connections or contact your local dealer or Planar for more information. No Signal This message means that the display has been powered on but it cannot receive any signal from the computer graphics card. -
Page 20: Product Dimensions
Product Dimensions PT1545R 350.8 mm ► Front View ► Side View 67.0 mm 222.5 mm ► Top View... -
Page 21: Pt1545P
PT1545P 350.8 mm ► Front View ► Side View 62.5 mm 222.5 mm ► Top View... -
Page 22: Compatibility Modes
Compatibility Modes Mode Resolution H-Frequency (KHz) V-Frequency (Hz) IBM VGA 720 x 400 31.47 IBM VGA 640 x 480 31.47 VESA VGA 640 x 480 37.86 VESA VGA 640 x 480 37.50 VESA SVGA 800 x 600 35.16 VESA SVGA 800 x 600 37.88 VESA SVGA... -
Page 23: Touch Screen Driver Installation
Touch Screen Driver Installation The PT1545R is available with both RS232 and USB connections. The touch driver is located at www.planar.com/support for these operating systems: Windows® 7/8, VISTA, XP, 2000, ME, 98, NT 4.0, CE, XP Embedded, Linux kernel 2.6.x (32 bit & 64 bit), Apple®... -
Page 24: Pt1545P Optional Calibration Tool Install
PT1545P Optional Calibration Tool Install: Calibrating the touch screen in Windows 7/8: 1. Tap the Start button, Control Panel and then Hardware and Sound. 2. Under Tablet PC Settings, tap Calibrate the screen for pen or touch input. 3. On the Display tab, under Display options, tap Calibrate and then Yes to allow the program to make changes. -
Page 26: Pt1545R Install Instructions
3. Be sure that your EWF is disabled. If your EWF is enabled, please disable the EWF by using the EWF Manager command. 4. Once the EWF is disabled click on the XP driver at www.planar.com/support. and follow the step-by-step instructions as shown on the pop-up windows. - Page 27 When changing the Touch Interface (RS-232 or USB), please follow instructions below. 1. Uninstall the touch driver. 2. Re-start the computer. 3. Remove the original Touch Interface (RS-232 or USB). 4. Connect the computer to the Touch Interface (RS-232 or USB) that you would like to use. 5.
-
Page 28: Pt1545P Install Instructions
3. Be sure that your EWF is disabled. If your EWF is enabled, please disable the EWF by using the EWF Manager command. 4. Once the EWF is disabled click on the XP driver at www.planar.com/support. and follow the step-by-step instructions as shown on the pop-up windows. -
Page 29: Technical Support
Technical Support Cables and Accessories To find cables and accessories for your Planar monitor, touch screen or other Planar products visit our online store at www.PlanarOnline.com. Technical Support Visit Planar at http://www.planar.com/support for operations manuals, touch screen drivers, warranty information and access to Planar’s Technical Library for online troubleshooting. - Page 30 Tel: 1-866-PLANAR1 (866-752-6271) or +1 503-748-5799 outside the United States. Hours: 24 hours a day, 7 days a week © 2013 Planar Systems, Inc. 10/13 Planar is a registered trademark of Planar Systems, Inc. Other brands and names are the property of their respective owners.
