GA-Q77M-D2H
User's Manual
Rev. 1001
12ME-Q77MD2H-1001R

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GA-Q77M-D2H and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Gigabyte GA-Q77M-D2H

Summary of Contents for Gigabyte GA-Q77M-D2H

  • Page 1 GA-Q77M-D2H User's Manual Rev. 1001 12ME-Q77MD2H-1001R...

  • Page 3: Identifying Motherboard Revision

    Copyright © 2012 GIGA-BYTE TECHNOLOGY CO., LTD. All rights reserved. The trademarks mentioned in this manual are legally registered to their respective owners. Disclaimer Information in this manual is protected by copyright laws and is the property of GIGABYTE. Changes to the specifications and features in this manual may be made by GIGABYTE without prior notice.

  • Page 4: Table Of Contents

    Table of Contents GA-Q77M-D2H Motherboard Layout ................5 GA-Q77M-D2H Motherboard Block Diagram ..............6 Chapter 1 Hardware Installation ..................7 Installation Precautions ..................7 1-2 Product Specifications ..................8 Installing the CPU ..................11 Installing the Memory ..................12 Installing an Expansion Card ................. 12 Back Panel Connectors ..................

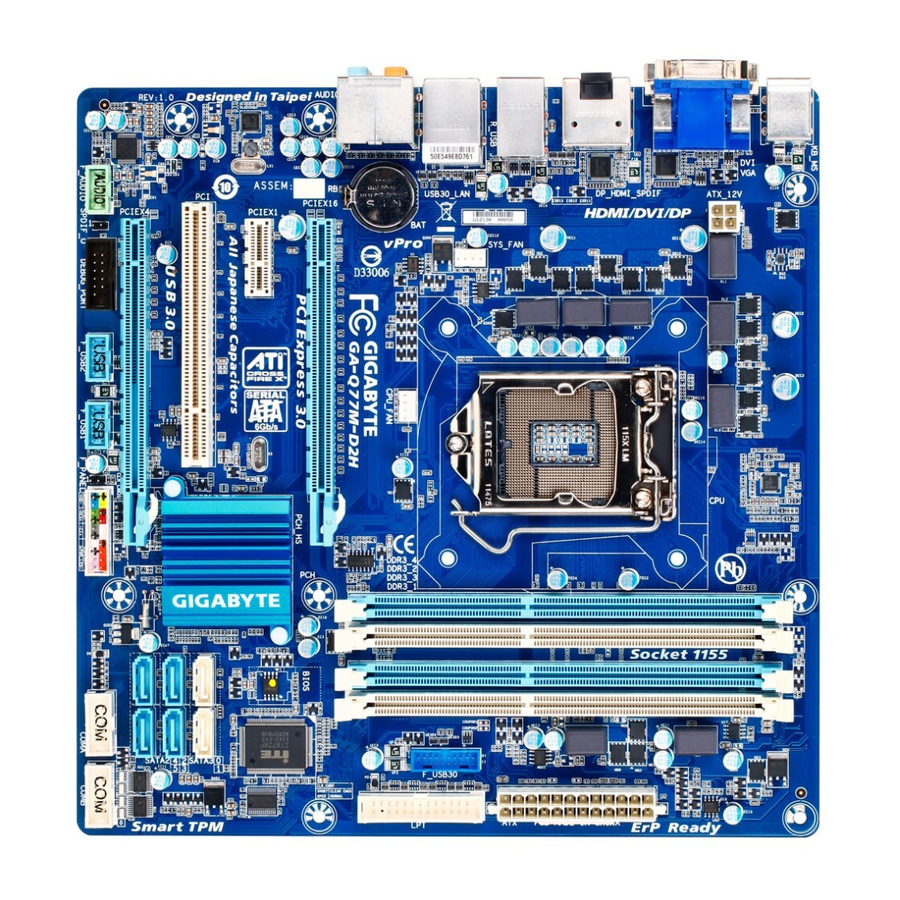

  • Page 5: Ga-Q77M-D2H Motherboard Layout

    GA-Q77M-D2H Motherboard Layout KB_MS ATX_12V LGA1155 DP_HDMI_SPDIF R_USB USB30_LAN CPU_FAN AUDIO GA-Q77M-D2H PCIEX16 Intel GbE PCIEX1 BIOS SATA3 Intel ® PCIEX4 SATA2 CODEC DEBUG_PORT F_PANEL COMA COMB F_AUDIO F_USB1 CLR_CMOS F_USB2 SPDIF_O Box Contents GA-Q77M-D2H motherboard Motherboard driver disk Two SATA cables...

  • Page 6: Ga-Q77M-D2H Motherboard Block Diagram

    GA-Q77M-D2H Motherboard Block Diagram CPU CLK+/- (100 MHz) 1 PCI Express x16 LGA1155 PCIe CLK DDR3 1600/1333/1066 MHz (100 MHz) Dual Channel Memory PCI Express Bus D-Sub BIOS DVI-D 2 SATA 6Gb/s HDMI 4 SATA 3Gb/s DisplayPort Intel ® 4 USB 3.0/2.0 1 PCI 8 USB 2.0/1.1...

  • Page 7: Chapter 1 Hardware Installation

    Chapter 1 Hardware Installation Installation Precautions The motherboard contains numerous delicate electronic circuits and components which can become damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the user's manual and follow these procedures: • Prior to installation, make sure the chassis is suitable for the motherboard. •...

  • Page 8: 1-2 Product Specifications

    1-2 Product Specifications Support for Intel Core i7 processors/Intel Core i5 processors/ ® ™ ® ™ Š Intel Core™ i3 processors/Intel Pentium processors/In- ® ® ® Celeron processors in the LGA1155 package ® ® (Go to GIGABYTE's website for the latest CPU support list.) L3 cache varies with CPU Š...
  • Page 9 Storage Interface Š Chipset: 2 x SATA 6Gb/s connectors (SATA3 0/1) supporting up to 2 SATA 6Gb/s devices 4 x SATA 3Gb/s connectors (SATA2 2/3/4/5) supporting up to 4 SATA 3Gb/s devices Support for RAID 0, RAID 1, RAID 5, and RAID 10 * When a RAID set is built across the SATA 6Gb/s and SATA 3Gb/s channels, the system performance of the RAID set may vary depending on the devices being connected.
  • Page 10 Hardware System voltage detection Š Monitor CPU/System temperature detection Š CPU/System fan speed detection Š CPU overheating warning Š CPU/System fan fail warning Š CPU/System fan speed control Š * Whether the CPU/system fan speed control function is supported will depend on the CPU/system cooler you install.

  • Page 11: Installing The Cpu

    Installing the CPU Read the following guidelines before you begin to install the CPU: • Make sure that the motherboard supports the CPU. (Go to GIGABYTE's website for the latest CPU support list.) • Always turn off the computer and unplug the power cord from the power outlet before installing the CPU to prevent hardware damage.

  • Page 12: Installing The Memory

    Installing the Memory Read the following guidelines before you begin to install the memory: • Make sure that the motherboard supports the memory. It is recommended that memory of the same capacity, brand, speed, and chips be used. (Go to GIGABYTE's website for the latest supported memory speeds and memory modules.) •...

  • Page 13: Back Panel Connectors

    Back Panel Connectors PS/2 Keyboard and PS/2 Mouse Port Use the upper port (green) to connect a PS/2 mouse and the lower port (purple) to connect a PS/2 keyboard. D-Sub Port The D-Sub port supports a 15-pin D-Sub connector. Connect a monitor that supports D-Sub connection to this port.
  • Page 14 DisplayPort DisplayPort is one of the new generation interface technologies that delivers high quality digital imaging and audio, supporting bi-directional audio transmition. DisplayPort can support both DPCP and HDCP content protection mechanisms. Connect the audio/video device that supports DisplayPort to this port. The DisplayPort Technology can support a maximum resolution of 2560x1600 but the actual resolutions supported depend on the monitor being used.

  • Page 15: Internal Connectors

    Internal Connectors ATX_12V F_AUDIO SPDIF_O CPU_FAN F_USB30 SYS_FAN F_USB1/2 COMA/COMB SATA3 0/1 SATA2 2/3/4/5 DEBUG_PORT F_PANEL CLR_CMOS Read the following guidelines before connecting external devices: • First make sure your devices are compliant with the connectors you wish to connect. •...
  • Page 16 1/2) ATX_12V/ATX (2x2 12V Power Connector and 2x12 Main Power Connector) With the use of the power connector, the power supply can supply enough stable power to all the components on the motherboard. Before connecting the power connector, first make sure the power supply is turned off and all devices are properly installed. The power connector possesses a foolproof design. Connect the power supply cable to the power connector in the correct orientation.
  • Page 17 3/4) CPU_FAN/SYS_FAN (Fan Headers) All fan headers on this motherboard are 4-pin. Most fan headers possess a foolproof insertion design. When connecting a fan cable, be sure to connect it in the correct orientation (the black connector wire is the ground wire). The speed control function requires the use of a fan with fan speed control design. For optimum heat dissipation, it is recommended that a system fan be installed inside the chassis.
  • Page 18 DEBUG DEBUG PORT PORT 6) SATA3 0/1 (SATA 6Gb/s Connectors, Controlled by Intel Q77 Chipset) The SATA connectors conform to SATA 6Gb/s standard and are compatible with SATA 3Gb/s and SATA 1.5Gb/s standard. Each SATA connector supports a single SATA device. The "SATA3 0" and "SATA3 1" connectors support RAID 0 and RAID 1.

  • Page 19: Front Panel Header

    8) F_PANEL (Front Panel Header) Connect the power switch, reset switch, speaker, chassis intrusion switch/sensor and system status indicator on the chassis to this header according to the pin assignments below. Note the positive and negative pins before connecting the cables. Message/Power/ Sleep LED Power Switch...
  • Page 20 9) F_AUDIO (Front Panel Audio Header) The front panel audio header supports Intel High Definition audio (HD) and AC'97 audio. You may connect your chassis front panel audio module to this header. Make sure the wire assignments of the module connector match the pin assignments of the motherboard header. Incorrect connection between the module connector and the motherboard header will make the device unable to work or even damage it. For AC'97 Front Panel Audio: For HD Front Panel Audio: Pin No.
  • Page 21 11) F_USB30 (USB 3.0/2.0 Header) The header conforms to USB 3.0/2.0 specification and can provide two USB ports. For purchasing the 1 2 3 optional 3.5" front panel that provides two USB 3.0/2.0 ports, please contact the local dealer. Pin No. Definition Pin No. Definition VBUS SSRX1- SSRX1+ SSTX2+ SSTX1- SSTX2- SSTX1+ SSRX2+ SSRX2- VBUS No Pin F_USB30 12) F_USB1/2 (USB 2.0/1.1 Headers)
  • Page 22 13) COMA/COMB (Serial Port Headers) The COM header can provide one serial port via an optional COM port cable. For purchasing the optional COM port cable, please contact the local dealer. Pin No. Definition NDCD- NSIN NSOUT NDTR- NDSR- NRTS- NCTS- NRI- No Pin...

  • Page 23: Clear Cmos Jumper

    15) DEBUG PORT (Debug Card Header) (Note) This header can connect a debug card. Pin No. Definition No Pin VCC3 LAD0 LAD1 LAD2 LAD3 -LFRAME -PFMRST DB CLK DB_P_SENSOR 16) CLR_CMOS (Clear CMOS Jumper) Use this jumper to clear the CMOS values (e.g. date information and BIOS configurations) and reset the CMOS values to factory defaults. To clear the CMOS values, use a metal object like a screwdriver to touch the two pins for a few seconds.

  • Page 24: Chapter 2 Bios Setup

    Chapter 2 BIOS Setup BIOS (Basic Input and Output System) records hardware parameters of the system in the CMOS on the motherboard. Its major functions include conducting the Power-On Self-Test (POST) during system startup, saving system parameters and loading operating system, etc. BIOS includes a BIOS Setup program that allows the user to modify basic system configuration settings or to activate certain system features.

  • Page 25: The Main Menu

    The Main Menu On the main menu of the BIOS Setup program, press arrow keys to move among the items and press <Enter> to accept or enter a sub-menu. Or you can use your mouse to select the item you want. (Sample BIOS Version: E18c) Setup Menus Help...

  • Page 26: M.i.t

    M.I.T. Whether the system will work stably with the overclock/overvoltage settings you made is dependent on your overall system configurations. Incorrectly doing overclock/overvoltage may result in damage to CPU, chipset, or memory and reduce the useful life of these components. This page is for advanced users only and we recommend you not to alter the default settings to prevent system instability or other unexpected results.
  • Page 27 ` M.I.T. Current Status This screen provides information on CPU/memory frequencies/parameters. ` Advanced Frequency Settings & Processor Graphics Clock Allows you to set the onboard graphics clock. The adjustable range is from 400 MHz to 3200 MHz. (Default: Auto) & CPU Clock Ratio Allows you to alter the clock ratio for the installed CPU.
  • Page 28 & CPU Clock Ratio, CPU Frequency The settings under the two items above are synchronous to those under the same items on the Advanced Frequency Settings menu. & Intel(R) Turbo Boost Technology (Note) Allows you to determine whether to enable the Intel CPU Turbo Boost technology. Auto lets the BIOS automatically configure this setting. (Default: Auto) &...
  • Page 29 & Extreme Memory Profile (X.M.P.) (Note) Allows the BIOS to read the SPD data on XMP memory module(s) to enhance memory performance when enabled. Disables this function. (Default) Disabled Uses Profile 1 settings. Profile1 Uses Profile 2 settings. (Note 2) Profile2 & System Memory Multiplier (SPD) Allows you to set the system memory multiplier. Auto sets memory multiplier according to memory SPD data.

  • Page 30: Dram Timing Selectable

    & DRAM Timing Selectable Quick and Expert allows the Channel Interleaving, Rank Interleaving, and memory timing settings below to be configurable. Options are: Auto (default), Quick, Expert. & Profile DDR Voltage When using a non-XMP memory module or Extreme Memory Profile (X.M.P.) is set to Disabled, this item will display as 1.50V. When Extreme Memory Profile (X.M.P.) is set to Profile1 or Profile2, this item will display the value based on the SPD data on the XMP memory.
  • Page 31 ` PC Health Status & Reset Case Open Status Keeps or clears the record of previous chassis intrusion status. (Default) Disabled Clears the record of previous chassis intrusion status and the Case Open field will show Enabled "No" at next boot. & Case Open Displays the detection status of the chassis intrusion detection device attached to the motherboard CI header. If the system chassis cover is removed, this field will show "Yes", otherwise it will show "No".

  • Page 32: Miscellaneous Settings

    & Slope PWM Allows you to control the CPU fan speed. This item is configurable only when CPU Fan Speed Control is set to Manual. Options are: 0.75 PWM value / C ~ 2.50 PWM value / & System Fan Speed Control Allows you to determine whether to enable the system fan speed control function and adjust the fan speed. Allows the system fan to run at different speeds according to the system temperature.

  • Page 33: System

    System This section provides information on your CPU, memory, motherboard model, and BIOS version. You can also select the default language used by the BIOS and manually set the system time. & System Language Selects the default language used by the BIOS. &...

  • Page 34: Bios Features

    BIOS Features & Boot Option Priorities Specifies the overall boot order from the available devices. For example, you can set hard drive as the first priority (Boot Option #1) and DVD ROM drive as the second priority (Boot Option #2). The list only displays the device with the highest priority for a specific type. For example, only hard drive defined as the first priority on the Hard Drive BBS Priorities submenu will be presented here. Removable storage devices that support GPT format will be prefixed with "UEFI:" string on the boot device list. To boot from an operating system that supports GPT partitioning, select the device prefixed with "UEFI:" string. Or if you want to install an operating system that supports GPT partitioning such as Windows 7 64-bit, select the optical drive that contains the Windows 7 64-bit installation disk and is prefixed with "UEFI:" string.

  • Page 35: Network Stack

    & Limit CPUID Maximum (Note) Allows you to determine whether to limit CPUID maximum value. Set this item to Disabled for Windows XP operating system; set this item to Enabled for legacy operating system such as Windows NT4.0. (Default: Disabled) &...

  • Page 36: Peripherals

    Peripherals & LAN PXE Boot Option ROM Allows you to decide whether to activate the boot ROM integrated with the onboard LAN chip. (Default: Disabled) & SATA Controller(s) Enables or disables the integrated SATA controllers. (Default: Enabled) - 36 -...

  • Page 37: Xhci Mode

    & SATA Mode Selection Enables or disables RAID for the SATA controllers integrated in the Intel Chipset or configures the SATA controllers to AHCI mode. IDE Configures the SATA controller to IDE mode. (Default) AHCI C onfigures the SATA controller to AHCI mode. Advanced Host Controller Interface (AHCI) is an interface specification that allows the storage driver to enable advanced Serial ATA features such as Native Command Queuing and hot plug. Enables RAID for the SATA controller. RAID &...

  • Page 38: Audio Controller

    & Audio Controller Enables or disables the onboard audio function. (Default: Enabled) If you wish to install a 3rd party add-in audio card instead of using the onboard audio, set this item to Disabled. & PCH LAN Controller Enables or disables the onboard LAN function. (Default: Enabled) If you wish to install a 3rd party add-in network card instead of using the onboard LAN, set this item to Disabled.
  • Page 39 ` Intel TXT(LT) Configuration Enables or disables Intel Trusted Execution Technology (Intel TXT). Intel Trusted Execution Technology provides a hardware-based security foundation. By isolating assigned memory through this hardware- based protection, it allows the system to protect data in each virtual partition from unauthorized access from software in another partition.
  • Page 40 ` Intel Anti-Theft Technology Configuration This section allows you to enable/disable Intel Anti-Theft Technology (Intel AT), a hardware-based anti-theft protection solution, and provides you with related configuration options. ` AMT Configuration This section allows you to enable/disable Intel Active Management Technology (Intel AMT) for remote computer management on hardware level and provides you with further configuration options. ` Super IO Configuration This section provides information on the super I/O chip and allows you to configure the serial port and parallel port. & Serial Port A/Serial Port B Enables or disables the onboard serial port.

  • Page 41: Parallel Port

    & Parallel Port Enables or disables the onboard parallel port. (Default: Enabled) ` Intel(R) Smart Connect Technology & ISCT Configuration Enables or disables Intel Smart Connect Technology. (Default: Disabled) ` Serial Port Console Redirection This section allows you to enable/disable serial port console redirection for remote server management through a serial port.

  • Page 42: Power Management

    Power Management & AC BACK Determines the state of the system after the return of power from an AC power loss. Always Off The system stays off upon the return of the AC power. (Default) Always On The system is turned on upon the return of the AC power. The system returns to its last known awake state upon the return of the AC power.
  • Page 43 & High Precision Event Timer (Note) Enables or disables High Precision Event Timer (HPET) for Windows 7 operating system. (Default: Enabled) & Soft-Off by PWR-BTTN Configures the way to turn off the computer in MS-DOS mode using the power button. Press the power button and then the system will be turned off instantly. (Default) Instant-Off Delay 4 Sec Press and hold the power button for 4 seconds to turn off the system.

  • Page 44: Save & Exit

    Save & Exit & Save & Exit Setup Press <Enter> on this item and select Yes. This saves the changes to the CMOS and exits the BIOS Setup program. Select No or press <Esc> to return to the BIOS Setup Main Menu. &...

  • Page 45: Chapter 3 Drivers Installation

    Chapter 3 Drivers Installation • Before installing the drivers, first install the operating system. • After installing the operating system, insert the motherboard driver disk into your optical drive. The driver Autorun screen is automatically displayed which looks like that shown in the screen shot below. (If the driver Autorun screen does not appear automatically, go to My Computer, double-click the optical drive and execute the Run.exe program.) Installing Chipset Drivers After inserting the driver disk, "Xpress Install"...

  • Page 46: Regulatory Statements

    Regulatory Statements Regulatory Notices This document must not be copied without our written permission, and the contents there of must not be imparted to a third party nor be used for any unauthorized purpose. Contravention will be prosecuted. We believe that the information contained herein was accurate in all respects at the time of printing.
  • Page 47 - 47 -...
  • Page 48 - 48 -...
  • Page 49 - 49 -...
  • Page 50 - 50 -...
  • Page 51 - 51 -...
  • Page 52 Contact Us GIGA-BYTE TECHNOLOGY CO., LTD. Address: No.6, Bau Chiang Road, Hsin-Tien, Taipei 231, Taiwan TEL: +886-2-8912-4000, FAX: +886-2-8912-4003 Tech. and Non-Tech. Support (Sales/Marketing) : http://ggts.gigabyte.com.tw WEB address (English): http://www.gigabyte.com WEB address (Chinese): http://www.gigabyte.tw You may go to the GIGABYTE website, select your language in the language list on the top right corner of the website. • GIGABYTE Global Service System To submit a technical or non-technical (Sales/Marketing) question, please link to:...
