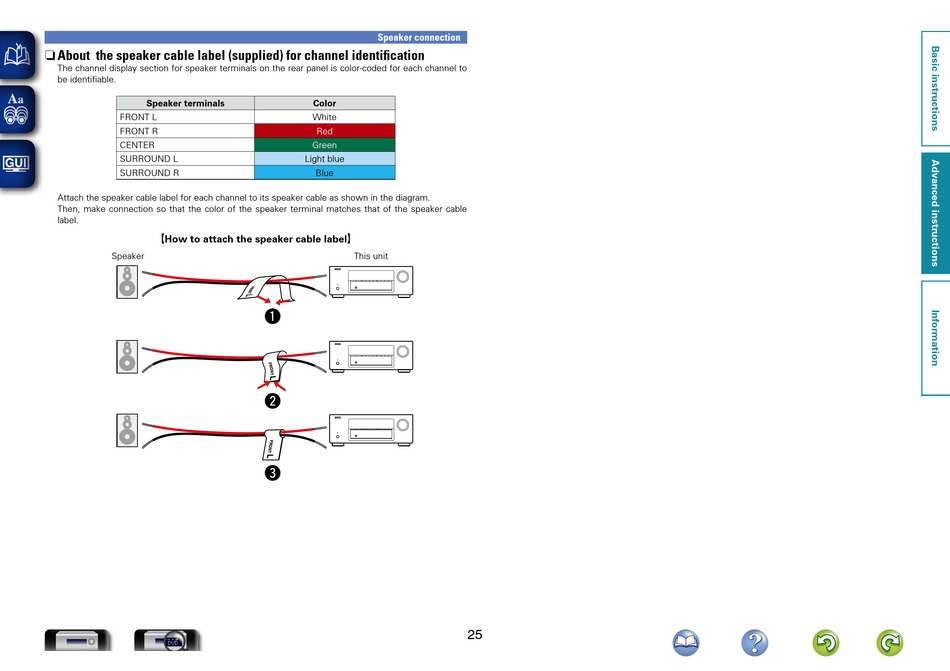

n About the speaker cable label (supplied) for channel identification
The channel display section for speaker terminals on the rear panel is color-coded for each channel to
be identifiable.
Speaker terminals
FRONT L
FRONT R
CENTER
SURROUND L
SURROUND R
Attach the speaker cable label for each channel to its speaker cable as shown in the diagram.
Then, make connection so that the color of the speaker terminal matches that of the speaker cable
label.
GHow to attach the speaker cable labelH
Speaker
DVD
Speaker connection
Color
White
Red
Green
Light blue
Blue
This unit
25
