Installation/connection/setup of speakers (Advanced)

Procedure for speaker settings

Speaker installation

Speaker connection (vpage 24)
DVD

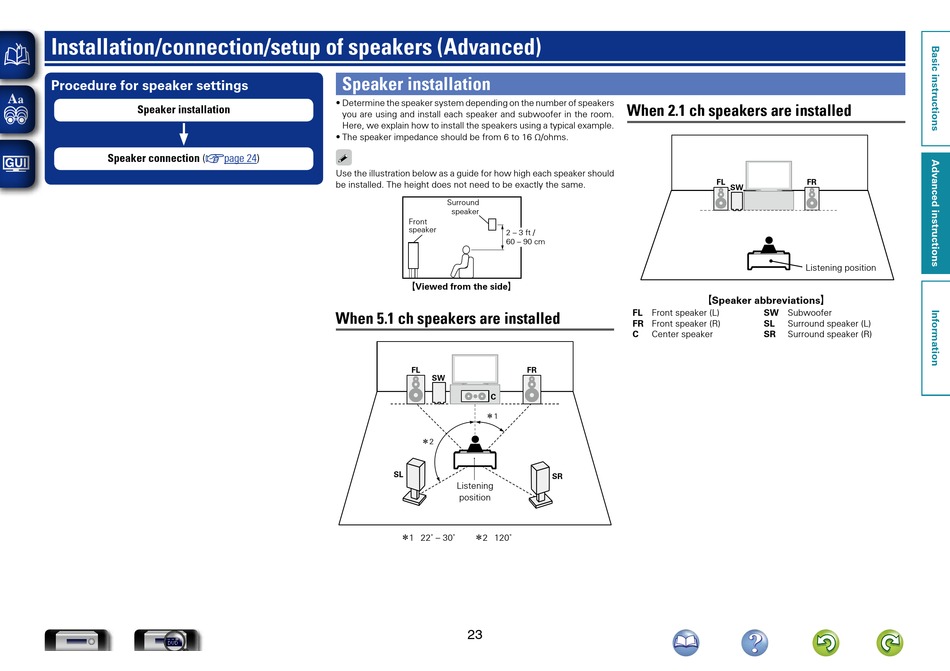

Speaker installation
• Determine the speaker system depending on the number of speakers
you are using and install each speaker and subwoofer in the room.
Here, we explain how to install the speakers using a typical example.
• The speaker impedance should be from 6 to 16 Ω/ohms.
Use the illustration below as a guide for how high each speaker should
be installed. The height does not need to be exactly the same.
Surround
speaker
Front
speaker
2 – 3 ft /
60 – 90 cm
GViewed from the sideH
When 5.1 ch speakers are installed
FL
SW
C
z1
z2
SL
Listening
position
z1 22˚ – 30˚ z2 120˚
23
When 2.1 ch speakers are installed
FL Front speaker (L)
FR Front speaker (R)
C Center speaker
FR
SR
FL FR
SW
Listening position
GSpeaker abbreviationsH
SW Subwoofer
SL Surround speaker (L)
SR Surround speaker (R)
