Summary of Contents for Advantech SOM-6765

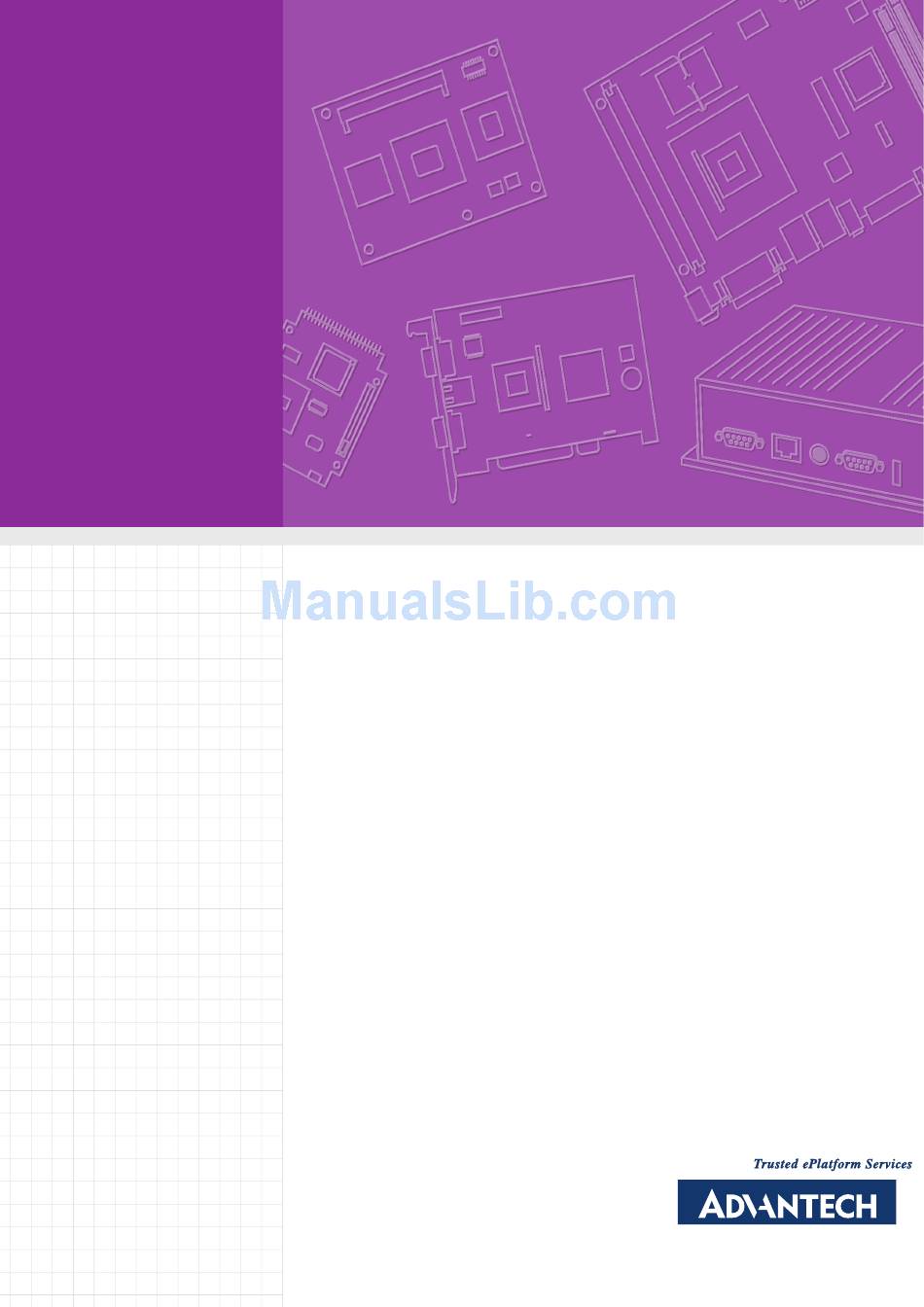

- Page 1 User Manual SOM-6765...
- Page 2 The documentation and the software included with this product are copyrighted 2010 by Advantech Co., Ltd. All rights are reserved. Advantech Co., Ltd. reserves the right to make improvements in the products described in this manual at any time without notice.
- Page 3 Because of Advantech’s high quality-control standards and rigorous testing, most of our customers never need to use our repair service. If an Advantech product is defec- tive, it will be repaired or replaced at no charge during the warranty period. For out- of-warranty repairs, you will be billed according to the cost of replacement materials, service time and freight.
-
Page 4: Safety Instructions
Don't touch any components on the CPU card or other cards while the PC is on. Disconnect power before making any configuration changes. The sudden rush of power as you connect a jumper or install a card may damage sensitive elec- tronic components. SOM-6765 User Manual... -
Page 5: Table Of Contents
Advanced BIOS Features Setup ............. 12 Figure 3.3 Advanced BIOS features setup screen ....12 3.3.1 Advantech Bios Update V1.3 ............13 Figure 3.4 Advantech Bios Update V1.3........13 3.3.2 ACPI Settings................13 Figure 3.5 ACPI Setting ............. 13 3.3.3 TPM Configuration .............. - Page 6 Appendix C System Assignments......37 System I/O Port..................38 Table C.1: System I/O Ports ............38 DMA Channel Assignments ..............40 Table C.2: DMA Channel Assignments ........40 Interrupt Assignments ................40 Table C.3: Interrupt Assignment ..........40 SOM-6765 User Manual...
- Page 7 1st MB Memory Map ................41 Table C.4: 1st MB Memory Map ..........41 SOM-6765 User Manual...
- Page 8 SOM-6765 User Manual viii...
-
Page 9: Chapter 1 General Information
Chapter General Information This chapter gives background information on the SOM-6765 CPU System on Module. Sections include: Introduction Specifications... -
Page 10: Introduction
Introduction SOM-6765 is an embedded COM-Express Compact COM.0 R2.0 Type 2 CPU mod- ule that fully complies with the PCI Industrial Computer Manufactures PICMG COM Express standard. The new CPU module supports Intel N2600 and D2700 proces- sors with NM10 chipset which supports Intel Embedded GFX Core, MPEG2 Decode in HW, PCI Express and SATA interfaces. -
Page 11: Vga/Flat Panel Interface
+12 V @ 0.5 A SOM-6765D (4GB DDRIII 1066) +12 V @ 0.63 A Operating temperature: 0 ~ 60°C (32 ~ 140°F) Operating humidity: 0% ~ 90% relative humidity, non-condensing Weight: 0.103 Kg (weight of total package) SOM-6765 User Manual... - Page 12 SOM-6765 User Manual...
-
Page 13: Chapter 2 Mechanical Information
Chapter Mechanical Information This chapter gives mechanical and connector information on the SOM-6765 CPU System on Mod- ule. Sections include: Connector Information Mechanical Drawing... -
Page 14: Connectors
Connectors 2.1.1 Board Connector There are two connectors at the rear side of SOM-6765 for connecting to carrier board. X2: 220pins • • • AC97/HD Audio • Ethernet • X1: 220pins • SMBus&12C • • SDVO GPIO/GPCS • • •... -
Page 15: Mechanical Drawing
Mechanical Drawing 2.2.1 Connector Location Figure 2.1 Board Layout (component side) Figure 2.2 Board Layout (Solder side) SOM-6765 User Manual... -
Page 16: Board Dimension
2.2.2 Board Dimension Figure 2.3 Board Dimension (Component side) Figure 2.4 Board Dimension (Solder side) SOM-6765 User Manual... -
Page 17: Chapter 3 Bios Setup Information
Chapter BIOS Setup Information This chapter gives basic BIOS upgrade and Setup information on the SOM-7562 CPU System on Module. Sections include: Safety Precautions BIOS Update Basic BIOS Setup... -
Page 18: Figure 3.1 Setup Program Initial Screen
AMIBIOS has been integrated into many motherboards for over a decade. With the AMIBIOS Setup program, users can modify BIOS settings and control the various system features. This chapter describes the basic navigation of the SOM-6765 BIOS setup screens. Figure 3.1 Setup program initial screen AMI's BIOS ROM has a built-in Setup program that allows users to modify the basic system configuration. -
Page 19: Main Setup
Date using the <Arrow> keys. Enter new values through the keyboard. Press the <Tab> key or the <Arrow> keys to move between fields. The date must be entered in MM/DD/YY format. The time must be entered in HH:MM:SS format. SOM-6765 User Manual... -
Page 20: Advanced Bios Features Setup
Advanced BIOS Features Setup Select the Advanced tab from the SOM-6765 setup screen to enter the Advanced BIOS Setup screen. Users can select any item in the left frame of the screen, such as CPU Configuration, to go to the sub menu for that item. Users can display an Advanced BIOS Setup option by highlighting it using the <Arrow>... -
Page 21: Advantech Bios Update V1.3
3.3.1 Advantech Bios Update V1.3 Figure 3.4 Advantech Bios Update V1.3 Advantech Bios Update V1.3 Press[Enter] to do BIOS update. Please put new bios UPDATE.BIN in disk(FS0). 3.3.2 ACPI Settings Figure 3.5 ACPI Setting Enable ACPI Auto Configuration This item allows users to enable or disable BIOS ACPI auto configuration. -
Page 22: Tpm Configuration
Enable or Disable S3 Video Repost. 3.3.3 TPM Configuration Figure 3.6 TPM Configuration TPM Support Disable/Enable TPM if available. 3.3.4 CPU Configuration Figure 3.7 Super I/O Configuration Hyper Threading Technology This item allows users to enable or disable Intel Hyper Threading technology. SOM-6765 User Manual... -
Page 23: Sata Configuration
This item allows users to enable or disable the No-Execution page Portection tech- nology. 3.3.5 SATA Configuration Figure 3.8 SATA Configuration SATA Controller(s) This item allows users to enable or disable the SATA controller(s). SATA Mode Selection This item allows users to select mode of SATA controller(s). SOM-6765 User Manual... -
Page 24: Intel Fast Flash Standy
Enable the support for legacy USB. Auto option disables legacy support if no USB devices are connected. EHCI Hand-Off This is a workaround for the OS without EHCI hand-off support. The EHCI ownership change should claim by EHCI driver. USB transfer time-out SOM-6765 User Manual... -
Page 25: Embedded Controller Configuration
This item allows users to set the value of CPU shutdown temperature. EC iManager Smart FAN This item allows users to enable or disable smart FAN feature. Backlight Function This item allows users to set backlight enable polarity. SOM-6765 User Manual... -
Page 26: Aoac Configuration
Serial Port 0 Configuration This item allows users to configure serial port 0. Serial Port 1 Configuration This item allows users to configure serial port 1. Parallel Port Configuration This item allows users to configure parallel port. SOM-6765 User Manual... -
Page 27: Serial Port Console Redirection
(which the user is using) will exchange data. Both computers should have the same or compatible settings. Console Redirection(EMS) Console Redirection Enable or Disable. Console Redirection Settings This item allows users to enable or disable console redirection for Microsoft Windows Emergency Management Serivces (EMS). SOM-6765 User Manual... -
Page 28: Figure 3.15Console Redirection Settings
VT-UTF8 Combo Key Support Enable VT-UTF8 Combination Key Support for ANSI/VT100 terminals Recorder Mode With this mode enabled only text will be sent. This is to capture Terminal data. Resolution 100x31 Enables or disables extended terminal resolution SOM-6765 User Manual... -
Page 29: Figure 3.16Console Redirection Settings
'stop' signal can be sent to stop the data flow. Once the buffers are empty, a 'start' signal can be sent to re-start the flow. Hardware flow con- trol uses two wires to send start/stop signals. SOM-6765 User Manual... -
Page 30: Ppm Configuration
This item allows users to enable or disable CPU C-state support. Chipset Select the Chipset tab from the SOM-6765 setup screen to enter the Chipset BIOS Setup screen. You can display a Chipset BIOS Setup option by highlighting it using the <Arrow>... -
Page 31: Intel Igd Configuration
IGFX - Boot Type Select the Video Device which will be activated during POST. This has no effect if external graphics present. LCD Panel Type Select LCD panel used by Internal Graphics Device by selecting the appropriate setup item. SOM-6765 User Manual... -
Page 32: Figure 3.21South Bridge
Level n: Enabled with Selected Aggressiveness Level. 3.4.1.2 South Bridge Figure 3.21 South Bridge TPT Devices Enable/Disable Intel(R) IO Controller Hub (TPT) devices. PCI Express Root Port 0 PCI Express Root Port 0 Settings. PCI Express Root Port 1 SOM-6765 User Manual... -
Page 33: Figure 3.22Tpt Devices
LAN Controller Enable or Disable OnChip NIC Controller. Wake on LAN Enable or disable PCIE LAN to wake the system. SMBus Controller Enable or Disable OnChip SMBus Controller. SIRQ Logic Enable or Disable SIRQ logic. SIRQ Mode SOM-6765 User Manual... -
Page 34: Figure 3.23Pci Express Root Port 0
PCI Express Hot Plug Enable/Disable. Extra Bus Reserved Extra Bus Reserved (0-7) for bridges behind this Root Bridge. Reseved Memory Reserved Memory and Prefetchable Memory (1-20MB) Range for this Root Bridge. Reserved I/O Reserved I/O (4K/8K/12K/16K/20K) Range for this Root Bridge. SOM-6765 User Manual... -
Page 35: Figure 3.24Pci Express Root Port 0
PCI Express Hot Plug Enable/Disable. Extra Bus Reserved Extra Bus Reserved (0-7) for bridges behind this Root Bridge. Reseved Memory Reserved Memory and Prefetchable Memory (1-20MB) Range for this Root Bridge. Reserved I/O Reserved I/O (4K/8K/12K/16K/20K) Range for this Root Bridge. SOM-6765 User Manual... -
Page 36: Boot Settings
Enabled, an OEM Logo is shown instead of POST messages. Option ROM Message Set display mode for option ROM. Interrupt 19 Capture This item allows option ROMs to trap interrupt 19. Boot This item allows users to set boot device priority. SOM-6765 User Manual... -
Page 37: Security Setup
Security Setup Figure 3.26 Security Setup Select Security Setup from the SOM-6765 Setup main BIOS setup menu. All Security Setup options, such as password selection is described in this section. To access the sub menu for the following items, select the item and press <Enter>: Change Administrator / User Password: Select this option and press <ENTER>... -
Page 38: Save Changes And Exit
3.7.7 Restore Defaults The SOM-6765 automatically configures all setup items to optimal settings when users select this option. Optimal Defaults are designed for maximum system perfor- mance, but may not work best for all computer applications. In particular, do not use the Optimal Defaults if the users computer is experiencing system configuration prob- lems. -
Page 39: Chapter 4 S/W Introduction & Installation
Chapter S/W Introduction & Installation... -
Page 40: S/W Introduction
S/W Introduction The mission of Advantech Embedded Software Services is to "Enhance quality of life with Advantech platforms and Microsoft Windows embedded technology." We enable Windows Embedded software products on Advantech platforms to more effectively support the embedded computing community. Customers are freed from the hassle of dealing with multiple vendors (Hardware suppliers, System integrators, Embedded OS distributor) for projects. -
Page 41: Appendix A Watchdog Timer
Appendix Watchdog Timer This appendix gives you the infor- mation about the watchdog timer programming on the SOM-6765 CPU System on Module. Sections include: Watchdog Timer Programming... -
Page 42: Programming The Watchdog Timer
H/W Restart Support External WDT For details, please refer to iManager & Software API User Manual Chapter 6. Pro- gramming Overview 6.2 Watchdog (WDog) Function Class. Please contact our local office for iManager & Software API User Manual. SOM-6765 User Manual... -
Page 43: Appendix B Programming Gpio
Appendix Programming GPIO This Appendix gives the illustra- tion of the General Purpose Input and Output pin setting. Sections include: GPIO Mapping... -
Page 44: Gpio Mapping
GPIO Mapping GPIO Byte H/W Pin Name BIT0 GPO0 BIT1 GPO1 BIT2 GPO2 BIT3 GPO3 BIT4 GPO0 BIT5 GPO1 BIT6 GPO2 BIT7 GPO3 For details, please refer to iManager & Software API User Manual. SOM-7562User Manual... -
Page 45: Appendix C System Assignments
Appendix System Assignments This appendix gives you the infor- mation about the system resource allocation on the SOM-6765 CPU System on Module. Sections include: System I/O ports DMA Channel Assignments Interrupt Assignments 1st MB Memory Map... -
Page 46: System I/O Port
Motherboard resources 0092 - 0092 Motherboard resources 0093 - 009F Direct memory access controller 00A0 - 00A1 Programmable interrupt controller 00A2 - 00BF Motherboard resources 00A4 - 00A5 Programmable interrupt controller 00A8 - 00A9 Programmable interrupt controller SOM-6765 User Manual... - Page 47 Intel(R) N10/ICH7 Family Serial ATA Storage Controller - 27C0 F0B0 - F0B3 Intel(R) N10/ICH7 Family Serial ATA Storage Controller - 27C0 F0C0 - F0C7 Intel(R) N10/ICH7 Family Serial ATA Storage Controller - 27C0 F0D0 - F0D3 Intel(R) N10/ICH7 Family Serial ATA Storage Controller - 27C0 SOM-6765 User Manual...
-
Page 48: Dma Channel Assignments
Intel(R) N10/ICH7 Family PCI Express Root Port -27D6 IRQ16 Intel(R) N10/ICH7 Family USB Universal Host Controller ®C 27CB IRQ18 Intel(R) N10/ICH7 Family PCI Express Root Port -27D6 IRQ18 Intel(R) N10/ICH7 Family USB Universal Host Controller - 27CB IRQ18 Standard Dual Channel PCI IDE Controller SOM-6765 User Manual... - Page 49 FED1C000 - FED1FFFF Motherboard resources FED20000 - FED8FFFF Motherboard resources FED45000 - FED8FFFF Motherboard resources FEE00000 - FEE00FFF Motherboard resources FF000000 - FFFFFFFF Intel 82802 Firmware Hub Device FF000000 - FFFFFFFF Intel 82802 Firmware Hub Device FFE00000 - FFFFFFFF Motherboard resources SOM-6765 User Manual...
- Page 50 No part of this publication may be reproduced in any form or by any means, electronic, photocopying, recording or otherwise, without prior written permis- sion of the publisher. All brand and product names are trademarks or registered trademarks of their respective companies. © Advantech Co., Ltd. 2012...
