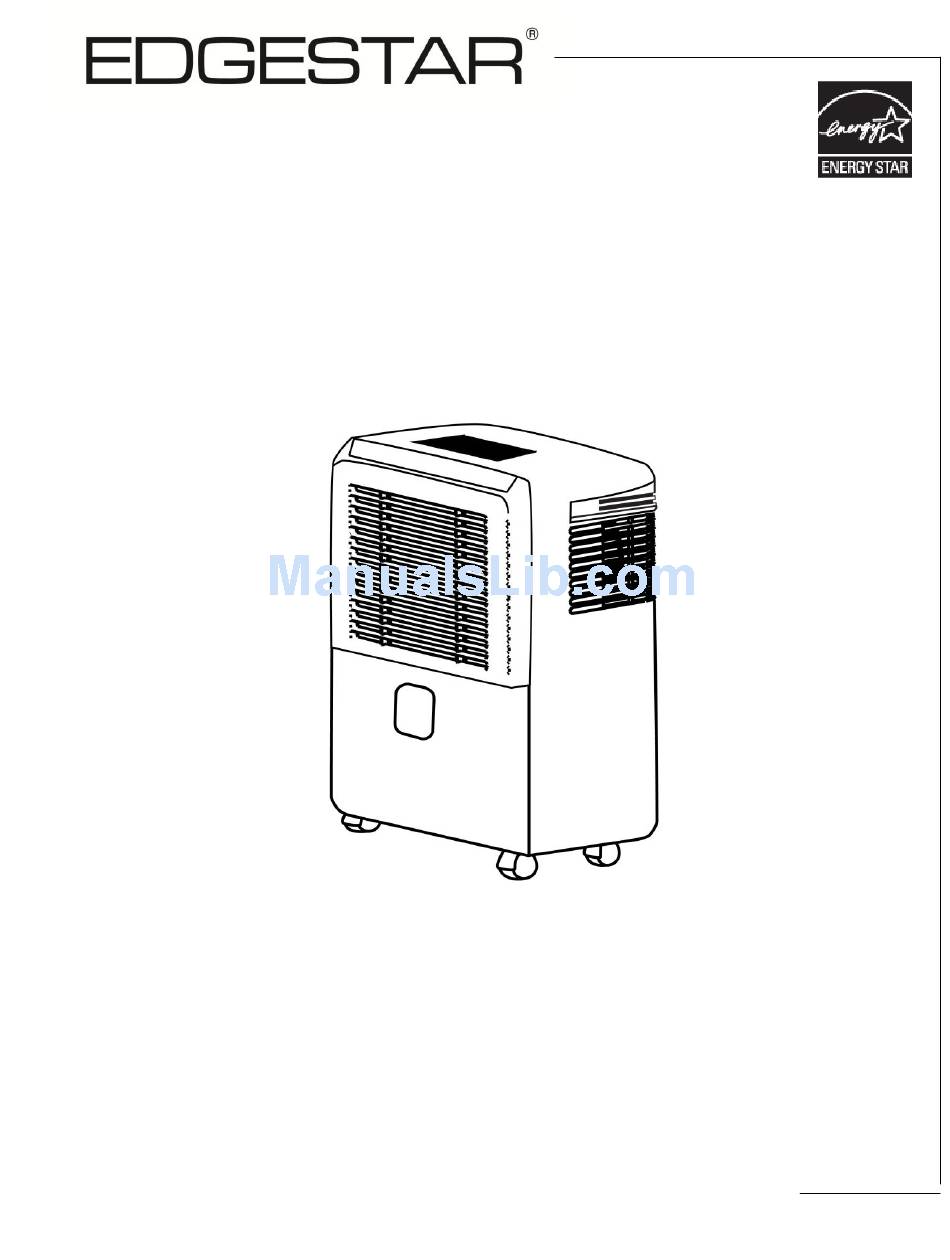

- Page 1 Dehumidifier Model: DEP701EW Owner’s Manual For more information on other great EdgeStar products on the web, go to http://www.edgestar.com...
-
Page 2: Important Safety Information
Important Safety Information Improper handling can cause serious damage to the EdgeStar dehumidifier and/or to the user. This dehumidifier is designed for domestic indoor use only. Do not use the unit for industrial or commercial use. Any other use may invalidate the warranty. Please review the ratings label located on the rear panel of the unit for electrical and other technical data related to this unit. -
Page 3: Table Of Contents
..................... 7 MAINTENANCE ....................8 LEANING THE UNIT ....................8 LEANING THE PRE FILTER ..................8 LEANING THE WATER BUCKET ................8 REPARATION FOR TORAGE .................. 9 ENERGY SAVING GUIDE ..................9 TROUBLESHOOTING ..................9 SPECIFICATIONS ....................12 EdgeStar Portable Dehumidifier... -
Page 4: Introduction
Introduction Thank you for purchasing this EdgeStar portable dehumidifier. We are glad you chose us. We believe that your purchase of this product opens a relationship between you and EdgeStar. We will provide the customer support needed to nurture that relationship. -
Page 5: Parts Identification
Parts Identification Front View Control Panel Handle Air Intake Water Bucket Water Level Indicator Back View Exhaust Drain Plug Power Plug Casters EdgeStar Portable Dehumidifier... -
Page 6: Installation Instructions
Installation Instructions Your dehumidifier will remove moisture from the air and collect the excess water in a bucket. You can use the EdgeStar dehumidifier to create a comfortable environment and prevent damage caused by moisture to books or valuables in areas such as basements or home libraries. Follow the instructions below to unpack and set up your unit. -
Page 7: Control Panel Overview
Lights up to indicate the fan is on the high setting. Normal Lights up to indicate the fan is on the low setting. Auto-Defrost Lights up to indicate the auto defrost operation is on LCD Display Displays the level of humidity as well as error codes. EdgeStar Portable Dehumidifier... -
Page 8: Operating The Control Panel
Operating the Control Panel Use the “Power” button to turn the portable dehumidifier on and off. By Power default when you first use the power button, the unit will begin to operate in normal fan speed mode. Note: If the unit was powered off, wait at least 3 minutes before powering it back on. -
Page 9: Lcd Display
If the room’s relative humidity is lower than the set humidity, the unit will not start the fan and compressor unless you set the unit to run in Continuous mode. EdgeStar Portable Dehumidifier... -
Page 10: Draining The Unit
Draining the Unit Manual Drain The dehumidifier can be drained manually using the water bucket. When the bucket is full, the unit will automatically stop running, and the water full light will turn on. Follow the steps to remove the bucket and dump the water. 1) Slowly and carefully pull the 2) Pull the bucket up by its bucket out by the handles until... -
Page 11: Maintenance
1) Remove the water bucket from the unit. NOTE: Do not put the water 2) Wash the bucket with clean water and a mild detergent. Rinse the bucket in a dishwasher. bucket thoroughly. 3) Install the water bucket. EdgeStar Portable Dehumidifier... -
Page 12: Preparation For Storage
Maintenance continued If you are not going to be using the unit for an extended period of time, Preparation for Storage follow the instructions below before storing your unit: 1) Turn off the unit and wait 24 hours before emptying the water tank. 2) Drain all the water from the water tank. -
Page 13: Troubleshooting
My dehumidifier is Unit may have been the unit sit on a level making a continuous shipped on its side surface for at least 24 hours and restart. metallic knocking or pinging sound Contact customer Damaged compressor service. EdgeStar Portable Dehumidifier... - Page 14 Troubleshooting continued… Secure the drain hose. A drain hose has been Route your drain hose My dehumidifier is attached and is loose to a drain hole or leaking condensate pump. Contact custom.er Cracked water bucket service. My dehumidifier runs The dehumidifier may Contact an electrician for a little while and be plugged into an...
-
Page 15: Specifications
Operating Current 6.9A Water Bucket Capacity 7.5 Liters / 1.98 Gallons Dehumidifying Capacity @ 80F 70 Pints/Day RH60% Refrigerant R410A Dimensions 15 3/8” x 10 9/16” x 23 1/8” W x D x H Weight 40 lbs. EdgeStar Portable Dehumidifier... -
Page 16: Edgestar Limited Warranty
EdgeStar authorized repair facility. PARTS: For a period of ONE (1) YEAR from the date of original purchase, EdgeStar will supply new, rebuilt, or refurbished parts free of charge. EdgeStar may request a defective part be returned in exchange for the replacement part. - Page 17 Register your product, download owner’s manuals, access additional troubleshooting resources, and obtain more information on other great EdgeStar & Koldfront products on the web at: http://www.edgestar.com Product contents and specifications may change without notice. Copyright © 2012 Living Direct, Inc. All rights reserved.
Need help?
Do you have a question about the DEP701EW and is the answer not in the manual?
Questions and answers
Hello - I have the dehumidifier (MODEL: DEP701EW) which has worked great for a number of years. I keep getting the EC error message and it stops working. Any suggestions on a fix? Nothing has really changed - it's in my basement so the temperature is pretty stable. Thank you.
For the EC error message on the EdgeStar DEP701EW dehumidifier, follow these steps:
1. Make sure the ambient temperature is between 41°F and 95°F. If it is not, operate the unit within this temperature range.
2. If the ambient temperature is suitable and the error persists, contact customer service.
This answer is automatically generated
