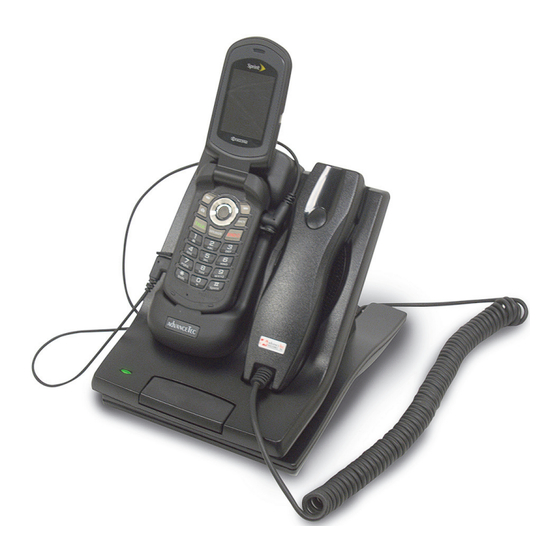

- Page 1 User Manual AdvanceCommunicator™ KYOCERA® DuraXT E4277 Part # AT3083A The AdvanceTec AdvanceCommunicator™ is an accessory designed to adapt the Kyocera DuraXT E4277 handsets into a Communications Base Station console device. Rev A 0628 ...
- Page 2 INDEX Page Details 2 Features 2 Important Phone Settings 3 Setting up AdvanceCommunicator™ 3 Installing phone into AdvanceCommunicator™ 3 ‐ 4 Making and receiving calls in Hands‐ ...
- Page 3 Setting up the AT3083A AdvanceCommunicator™ 1. Place the AdvanceCommunicator™ in a convenient position within easy reach of an AC power outlet. 2. Attach the plug at the end of the coil cord of the handset into the corresponding RJ45 handset receptacle on the back of the AdvanceCommunicator™. 3. Plug the power supply into the wall AC power outlet and the round barrel plug at the end of the cord of the power supply into the corresponding power receptacle on the back of the AdvanceCommunicator™ 4. At this point the LED will flash RED Installing the portable into the AdvanceCommunicator™ 1. Remove the rubber protective cover from the connector receptacle covering the micro USB connector on the left side of the handset (handset facing you) and align the micro USB connector at the end on the one cable from...
- Page 4 Making and Receiving calls in Hands Free Mode. 1. To make a call in Hands‐free mode, dial the desired number on the phone keypad and press SEND/GREEN BUTTON. Speak towards the Microphone which is situated on the bottom right corner of the AdvanceCommunicator™ 2. The voice of the person you are calling will be heard via the built‐in speaker in the AdvanceCommunicator™ 3. To receive a call in Hands‐free mode, press SEND/GREEN BUTTON on the phone or press shortly on the PTT/Space bar and speak towards the Microphone. The caller’s voice will be heard via the...
- Page 5 2. To answer a dispatch call using the handset, pick up the handset, press and hold down the round PTT button on the back of the Handset and speak into the handset as you would with a regular desktop phone. 3. To hear the other party in a dispatch call, release the PTT/Space bar (in Hands‐free mode) or the round PTT handset button if using the Handset Volume Control The volume of the AdvanceCommunicator™ can be increased or lowered with the volume buttons on the side of the phone.
-
Page 6: Optional Extras
Optional Extras The following optional extras are available to compliment the AdvanceCommunicator™: 1. Palm Mic ‐ Part # AT8428A 1. To use a Palm Mic. with the AdvanceCommunicator™ unplug the privacy handset supplied with the unit (and remove it from its cradle) and plug the RJ45 connector of the Palm Mic into the corresponding RJ45 receptacle back the AdvanceCommunicator™ 2. Once connected, the pressing of the switch on the Palm Mic. will activate the Palm Mic. 2. Headset ‐ Part # AT8401A 1. To use the Headset with the AdvanceCommunicator™ unplug the privacy handset supplied with the unit (and remove it from its... - Page 7 and plug the RJ45 connector of the Headset into the cradle) corresponding RJ45 receptacle back the AdvanceCommunicator™ 2. Once connected, audio will be transferred to the Headset. 3. PTT calls can be made with the PTT/Space Bar or the PTT button on the cable on the Headset. 3. Foot Pedal ‐ Part # AT 8400A (with Part # AT8405A) 1. To use the Foot Pedal with the AdvanceCommunicator™ unplug the privacy handset supplied with the unit (and remove it from its cradle) 2. Plug the RJ45 connector of the Y Adapter Cable (Part # AT8405A supplied) into the corresponding RJ45 receptacle on back of the AdvanceCommunicator™...
- Page 8 4. Y Connector Adapter ‐ Part # AT8405A 1. To use both the Headset and Foot Pedal with the AdvanceCommunicator™ simultaneously, use the Y connector adapter Part # 8504A supplied with the Foot Pedal.. 2. Unplug the privacy handset supplied with the unit (and remove it from its cradle) and plug the RJ45 connector of the Y Adapter Cable into the corresponding RJ45 receptacle on back of the AdvanceCommunicator™ 3. Plug the Headset and Foot Pedal into the corresponding RJ45 receptacles of the Y Adapter Connector. ! NOTE: If neither the headset nor Foot Pedal work, swap around the plugs into the Y Adapter Connector. 4. Once connected, the Headset and Foot Pedal will function as set out above. 1150 NW 163rd Drive, Miami, FL 33169 T: 305‐623‐3939 F: 305‐623‐3996 Toll free USA 1‐800‐881‐8211 www.advancetec.com www.advancemobileGPS.com ...
