Summary of Contents for Kyocera AdvanceCommunicator DuraMax E4255

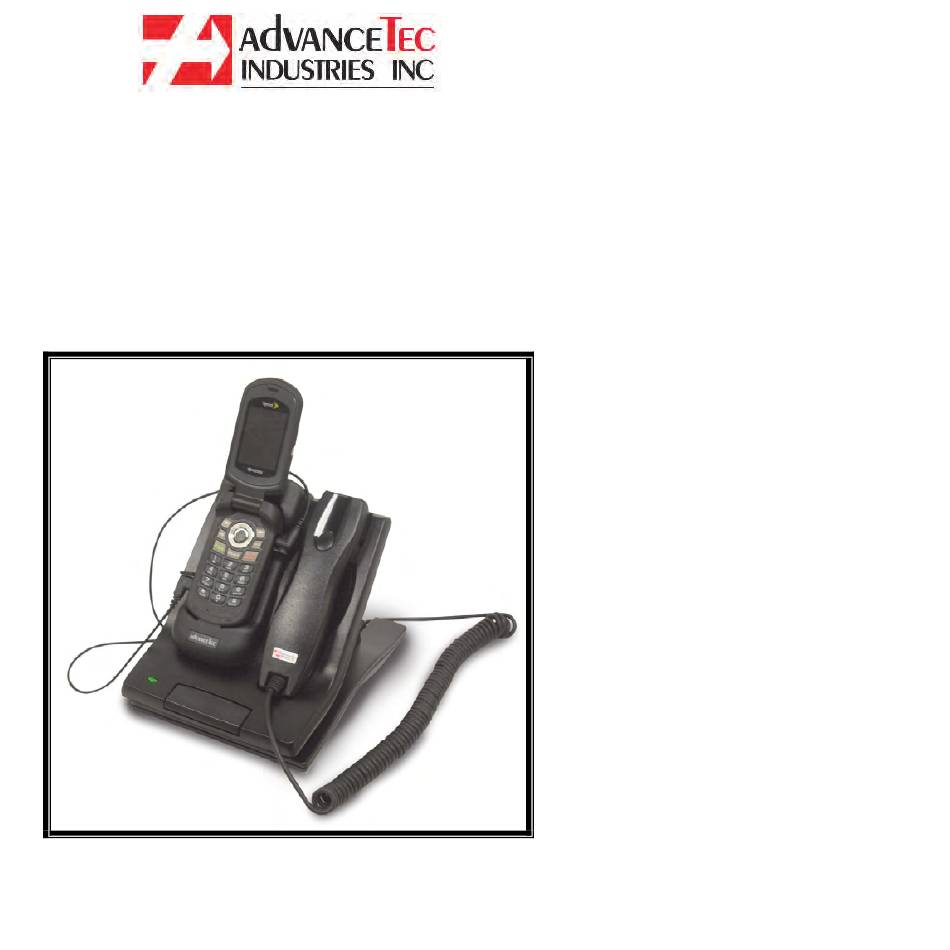

- Page 1 User Manual AdvanceCommunicator™ KYOCERA® DuraMax E4255 Part # AT3080A The AdvanceTec AdvanceCommunicator™ is an accessory designed to adapt the Kyocera DuraMax E4255 handsets into a Communications Base Station console device. ...
- Page 2 INDEX Page Details 2 Features 2 Important Phone Settings 3 Setting up AdvanceCommunicator™ 3 Installing phone into AdvanceCommunicator™ 3 ‐ 4 Making and receiving calls in Hands‐ ...
- Page 3 Setting up the AT3080A AdvanceCommunicato r™ 1. Place the AdvanceCommunicator™ in a convenien position within easy reach of an AC power outlet. 2. Attach the plug at the end of the coil cord of the handset into the corresponding RJ45 handset receptacle on the back of the AdvanceCommunicator™. 3. Plug the power supply into the wall AC power outlet and the round barrel plug at the end of the cord of the power supply into the correspondin g power receptacle on the back of the AdvanceCommun icator™...
- Page 4 Mak ng and Receiving calls in Hands Free Mode 1. To make a call in Hands‐free mode, dial the desired number on the phone keypad and press SEND/GREEN BUTTON. Speak towards the Microphone which is situated on the bottom right corner of the AdvanceCommunicator™ 2.
- Page 5 2. To answer a dispatch call using the handset, pick up the handset, press and hold down the round PTT button on the back of the Handset and speak into the handse as you would with a regular desktop phone. 3. To hear the other party in a dispatch call, release the PTT/Space bar (in Hands‐free mode) or the round PTT handset button if using the Handset Volum e Co trol The volume of the AdvanceCommunicator™ can be ncreased or lowered with the volume buttons on the ide of the phone. Rec d or ing Feature 1. The AdvanceCommunicator™ will allow the recording of audio traffic with an external recording device via a 3.5mm plug on the back of the AdvanceCommunicator™.
- Page 6 Charging the battery With the portable turned off, the AdvanceCommunicator™ will charge the battery to 60% in approximately 1 hour. The charge ime will be longer if the portable is operational during charge ime. NOTE: Batteries of the portable will charge within the temperature window of ‐10 C to +40 C (50 F to 104 F). If the battery is outside this temperature window, no charge current will be supplied to the battery. 1150 NW 163rd Drive, Miami, FL 33169 T: 305‐623‐3939 F: 305‐623‐3996 Toll free USA 1‐800‐881‐8211 ...
