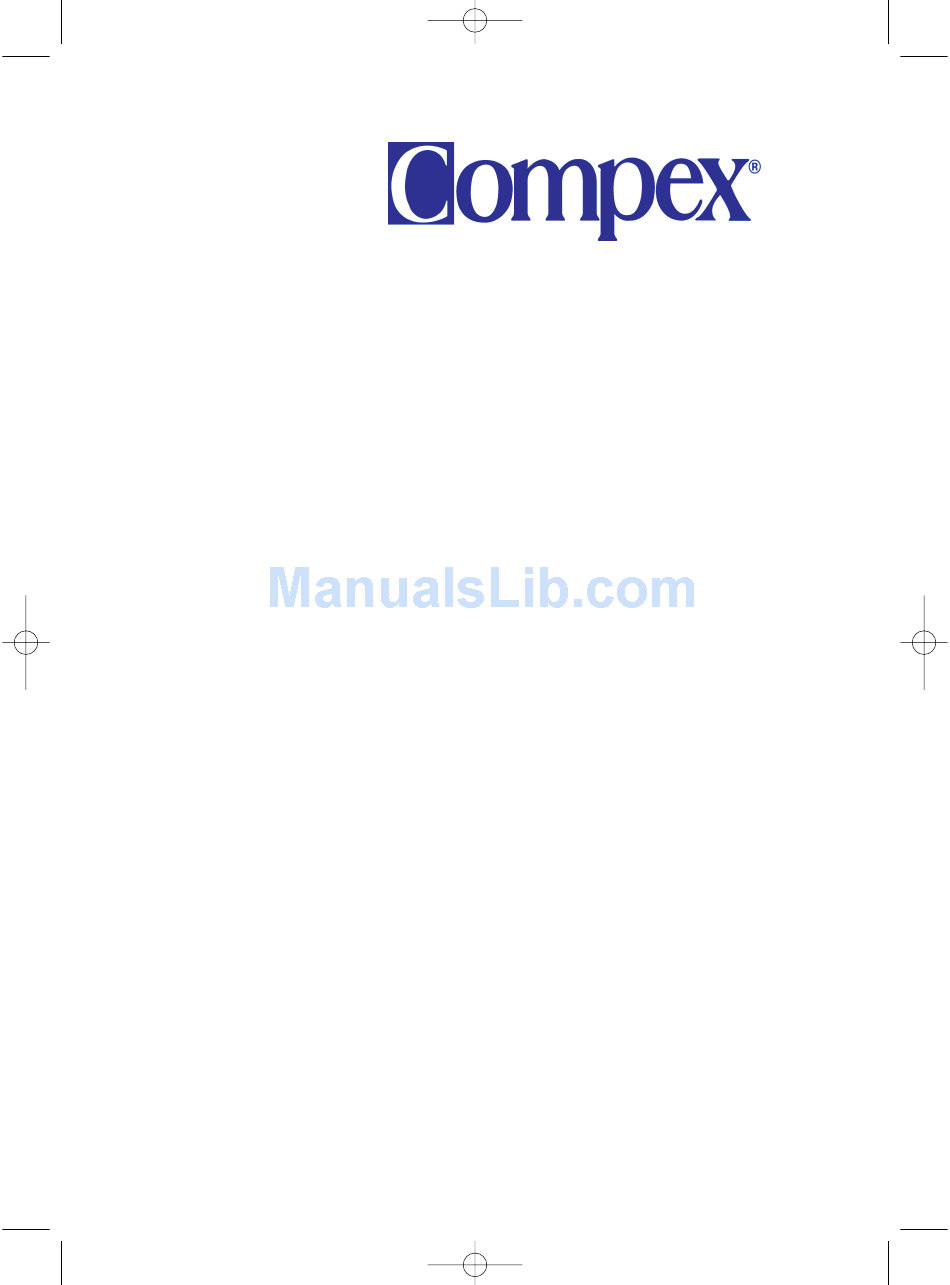

SpUS Manuel EN:SpUS Manuel EN 31/01/08 15:59 Page 1 S P O R T User Manual Manual de utilización... - Page 2 SpUS Manuel EN:SpUS Manuel EN 31/01/08 15:59 Page 2...
- Page 3 SpUS Manuel EN:SpUS Manuel EN 31/01/08 15:59 Page 3 USER MANUAL 5-41 Table of Contents Index MANUAL DE UTILIZACIÓN 43-81 Sumario Índice...
- Page 4 SpUS Manuel EN:SpUS Manuel EN 31/01/08 15:59 Page 4...
-
Page 5: User Manual
15:59 Page 5 I. FOREWORD Read this User Manual carefully before you start using your “ Compex®Sport ”. The manufacturer strongly recommends careful reading of the “ Warnings and Cautions ” and “ Safety Guide ” Chapters of this User Manual. -
Page 6: Table Of Contents
Adverse Reactions SAFETY GUIDE 13-18 Who Should not Use the “ Compex ® Sport ”! What Should Never Be Done with the “ Compex ® Sport ”! Where Never to Apply the Electrodes! Cautions with Electrodes! INDICATIONS FOR USE 19-24 Intended Use How to Use the “... -
Page 7: Spus Manuel En:spus Manuel
Connections Language, Contrast of the Display and Sound Volume Selection Switching on Selecting a Program Personalizing the Program During Operation ® Recharging the “ Compex Sport ” VIII. TROUBLESHOOTING Electrode Fault Need for Recharging PRACTICAL INFORMATION 35-36 Warranty Cleaning Your Unit... - Page 8 SpUS Manuel EN:SpUS Manuel EN 31/01/08 15:59 Page 8...
-
Page 9: Warnings And Cautions
15:59 Page 9 III. WARNINGS AND CAUTIONS General Warnings The “Compex® Sport” is intended for use on healthy muscles. It is to be used by adults only. KEEP OUT OF THE REACH OF CHILDREN. Never use the “Compex® Sport” on: painful muscles •... -
Page 10: Contraindications
Page 10 III. Warnings and Cautions Contraindications Do not use the “Compex® Sport” if you have one or more of the following medical conditions: 1. This device must not be used on persons with cardiac pacemakers, defibrillators, or other implanted metallic or electronic devices. -
Page 11: Precautions
SpUS Manuel EN:SpUS Manuel EN 31/01/08 15:59 Page 11 III. Warnings and Cautions 7. Caution should be used for patients with suspected or diagnosed heart problems. 8. Caution should be used when operating the device over the abdominal region during menstruation periods. 9. - Page 12 SpUS Manuel EN:SpUS Manuel EN 31/01/08 15:59 Page 12...
-
Page 13: Safety Guide
If you answer “Yes”, or “Maybe” , or “I don’t know” to one or more questions, do not use the device and contact Compex for more information. Compex Toll free: 1-866-8 COMPEX www.compex.us If you have 15 “ No ” answers, you can use the “Compex® Sport” . -
Page 14: What Should Never Be Done With The "Compex Sport
• Never use it in a humid atmosphere like a sauna, a bathroom or a swimming pool. • Never use it in ways other than recommended in the “Operating Instructions” Chapter of this User Manual (see pages 27 to 33) and in the “Compex® Sport” CD-ROM. -
Page 15: Where Never To Apply The Electrodes
SpUS Manuel EN:SpUS Manuel EN 31/01/08 15:59 Page 15 IV. Safety Guide Where Never to Apply the Electrodes! • On the head or any area of the face. • On the neck or any area of the throat. - Page 16 SpUS Manuel EN:SpUS Manuel EN 31/01/08 15:59 Page 16 IV. Safety Guide • On both sides of the thorax simultaneously (front and back sides, or lateral sides). • On, or in the vicinity of skin lesions or eruptions of any kind. •...
-
Page 17: Cautions With Electrodes
Page 17 IV. Safety Guide Cautions with Electrodes! • Only use the electrodes supplied by Compex or Rehabilicare. Other electrodes may present a risk of unsuitable electrical characteristics with your stimulator. • Do not use the same electrodes on different people. Each user must have his or her own electrode set. -
Page 18: Iv. Safety Guide
SpUS Manuel EN:SpUS Manuel EN 31/01/08 15:59 Page 18 IV. Safety Guide • Wash skin thoroughly, and then dry it before applying the electrodes. • Apply the whole surface of the electrodes firmly to the skin. Do not use electrodes that do not stick properly, i.e. that do not stick to the skin or that only partially stick to the skin. -
Page 19: Indications For Use
The “Compex® Sport” is not intended to be used in conjunction with therapy or treatment of medical diseases or medical conditions of any kind. None of the “Compex® Sport” training programs is designed for injured or ailing muscles and its use on such muscles is contraindicated. -
Page 20: How To Use The "Compex ® Sport
(see pictograms below) to prevent the movement of the limb (resulting from muscle contraction). In order to use the “Compex® Sport” safely and effectively, the following essential matters must be considered: 1) the choice of the appropriate muscle work program... -
Page 21: Planning Of Stimulation Sessions
Placement of the Electrodes Depending on the sport you practice, the Training Planner (www.plannerusa.bycompex.com) will determine the muscles that should be stimulated. It also shows pictures with the correct placements of the electrodes for the muscles involved. -
Page 22: Training Programs
Resistance Program The “Compex® Sport” Resistance program imposes an average high power working level on muscle fibers. This working level is maintained over a short period (12 minutes per session). The... -
Page 23: Strength Program
It is specifically designed for sports characterized by a need for maximum but very brief strength contractions. Weight lifting is a typical sport of this kind. This program is also appropriate for any type of sports requiring a gain in strength on a specific muscle (cycling, short distance running, soccer, etc.). -
Page 24: Special Programs
15:59 Page 24 V. Indications for Use Special Programs The “Compex® Sport” also offers two special muscle training programs. Their objective is to prepare muscles for explosive motions or to facilitate recovery after active muscle training and competition: • Potentiation •... -
Page 25: Description
SpUS Manuel EN:SpUS Manuel EN 31/01/08 15:59 Page 25 VI. DESCRIPTION Parts Figure 1 (Topside) A LCD display B “On/Off” switch ( ) C “+”/”–” keys of the 4 stimulation channels D Four sockets for the 4 electrode cables E Electrode cables channel 1 = blue channel 2 = green channel 3 = yellow... -
Page 26: Accessories
SpUS Manuel EN:SpUS Manuel EN 31/01/08 15:59 Page 26 VI. Description Accessories Figure 3 H “Compex® Sport” stimulator Battery charger J Set of electrode cables (blue/green/yellow/red) K Bags with electrodes (small and large) L User manual M Booklet showing the... -
Page 27: Operating Instructions
(see booklet and CD-ROM showing the correct positions of the electrodes and the proper body positions). The “Compex® Sport” has four electrode cables. Each electrode cable must be connected to the stimulator, using the sockets on the base of the device. -
Page 28: Language, Contrast Of The Display And Sound Volume Selection
Language, Contrast of the Display and Sound Volume Selection Before using your “Compex® Sport” , you can select the language of your unit, adjust the display contrast and the sound volume. To do so, press the “On/Off” switch, which is located on the left of your unit ( ), and hold it down for a few seconds to display the options screen. -
Page 29: Switching On
Page 29 VII. Operating Instructions Switching on To switch on your “Compex® Sport” , briefly press the “On/Off” switch. A sound signal precedes a warning screen that we recommend you read. Bear in mind that this device is neither a toy nor a gadget. -
Page 30: Personalizing The Program
SpUS Manuel EN:SpUS Manuel EN 31/01/08 15:59 Page 30 VII. Operating Instructions Personalizing the Program Before starting the session, you will have to personalize the program as follows: Figure 9 To stimulate the muscles of the lower limbs or of the upper limbs and the trunk, press the “+”/”–”... -
Page 31: During Operation
SpUS Manuel EN:SpUS Manuel EN 31/01/08 15:59 Page 31 VII. Operating Instructions During Operation Figure 10 The “Compex® Sport” makes a “bleeping” sound and the “+” symbols of the 4 channels flash: when this occurs, you should increase the current intensity. -
Page 32: Recharging The "Compex Sport
Recharging the “Compex ® Sport” The “Compex® Sport” runs on a rechargeable battery. The discharge time depends on the programs used and the operating levels of the electric current. The battery should last at least 6 hours before requiring a recharge. - Page 33 The “Compex® Sport” has been charging for 32 minutes and 46 seconds. A full charge may take more than 1 hours. Figure 15 When charging is completed, total charge duration (here, 1 h 52) flashes. The “Compex® Sport” switches off as soon as you disconnect the charger.
-
Page 34: Troubleshooting
SpUS Manuel EN:SpUS Manuel EN 31/01/08 15:59 Page 34 VIII. TROUBLESHOOTING Electrode Fault Figure 16 This diagram shows that the device has detected an electrode fault on channel 3. This may mean that: 1) there is no electrode connected to this channel; 2) the electrodes are defective or old and the contact is poor: in this case, try using new electrodes;... -
Page 35: Practical Information
“Compex® Sport” . Storage Conditions The “Compex® Sport” contains rechargeable batteries and so the storage conditions must not exceed the following figures: Storage temperature: from -20°C to 45°C, -4°F to 113°F Max. -
Page 36: Standards
The “Compex® Sport” is manufactured in conformity with quality standards ISO 9001, ISO 13845. According to IEC 60601-1, the “Compex® Sport” is a class II device unit with its own internal electric power, with type BF applied parts. It is in conformity with IEC 60601-1-2 requirements about electromagnetic compatibility and IEC 60601-1 about medical electrical devices. -
Page 37: Technological Information
SpUS Manuel EN:SpUS Manuel EN 31/01/08 15:59 Page 37 X. TECHNOLOGICAL INFORMATION Output Waveform Biphasic rectangular impulse with electrical mean equal zero (net zero DC). Basic Unit Characteristics Body: plastic Weight: 350 g, 12.25 ounces Length: 142 mm, 5.6 inches Width: 99 mm, 3.9 inches Height:... -
Page 38: Description Of Accessories
SpUS Manuel EN:SpUS Manuel EN 31/01/08 15:59 Page 38 X. Technological Information Description of Accessories Battery charger for recharging the battery: Type CP01011120U Input 90-264 VAC / 47 to 63Hz / 0.25A max. Four cables to link the four channels of the stimulator with the electrodes: One blue cable, one green cable, one yellow cable, one red cable... -
Page 39: Index
SpUS Manuel EN:SpUS Manuel EN 31/01/08 15:59 Page 39 XI. INDEX Connections Illustration, 25, 26 Charger, 25, 33 No Application!, 10-11, Accessories, 26, 38 Electrodes, 25, 27, 34 15-16 Placement, 10-11, 15-16, Active Recovery, 24, 29 Contents (Table of), 6-7 21, 27 Adverse Reactions, 11 Contractions, 19-24... - Page 40 SpUS Manuel EN:SpUS Manuel EN 31/01/08 15:59 Page 40 XI. Index Charge Level Indicator, Parts, 25 32-33, 34 Personalization, 30 Keys (“+”/–”), 25, 28-31 Charger, 25, 26, 33 Compartment for the Phone Number, 5, 13 Battery, 25 Pictograms Electrode Cables, 25, 26 Isometric Stimulation, 20 Electrodes Fault Screen, 34 Warnings &...
- Page 41 SpUS Manuel EN:SpUS Manuel EN 31/01/08 15:59 Page 41 XI. Index Isometric, 20 Training Programs, 19, Muscle Contractions, 19, 22-23, 29 Safety (of Use), 19, 20 22-24 Troubleshooting, 34 Planning, 5, 20, 21 Safety Guide, 13-18 Principles, 19, 20-21 Screen(s) Programs, 22-24 Electrode Fault, 34 Safety &...
