Summary of Contents for Franklin Wireless U210
-

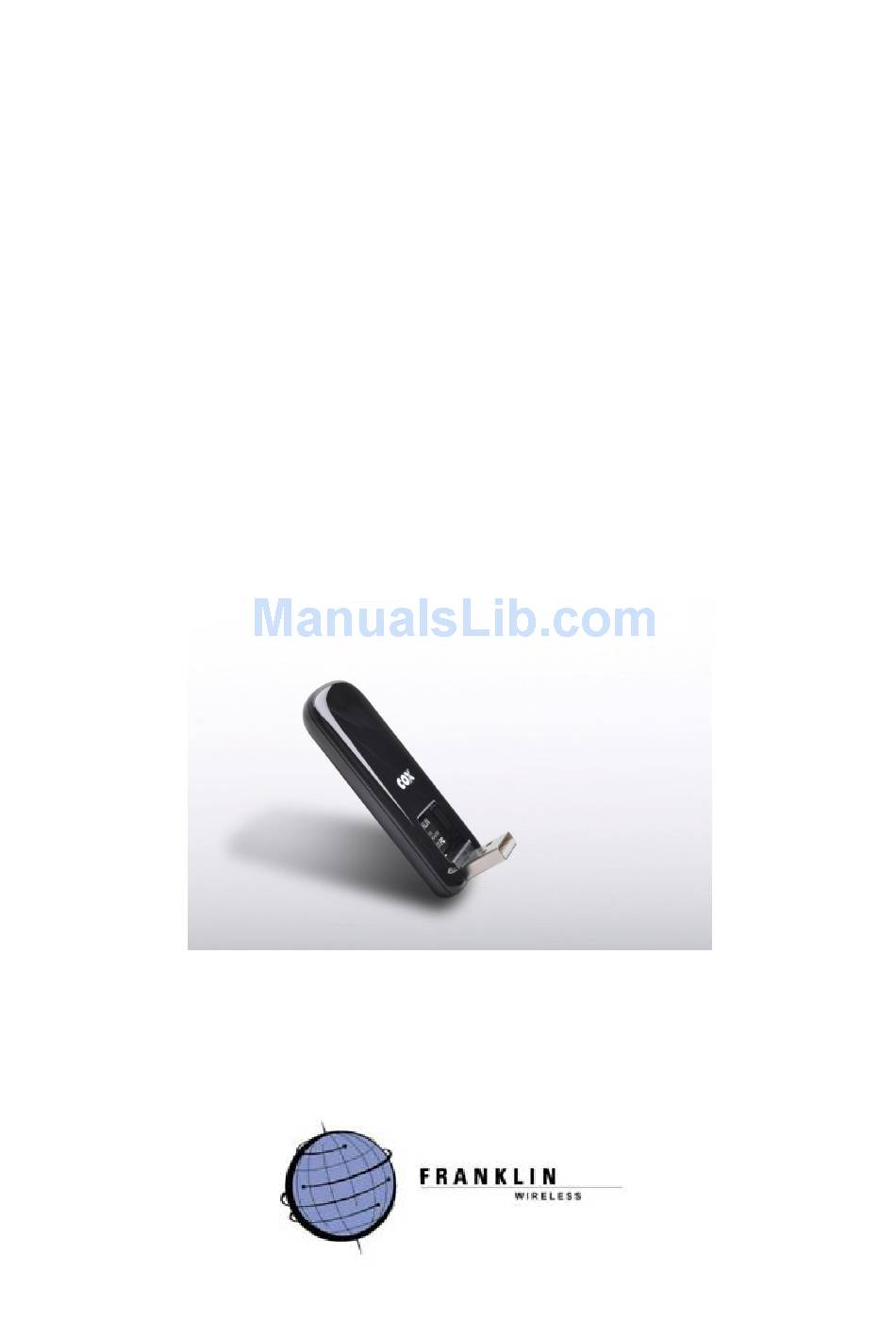

Page 1: User Manual

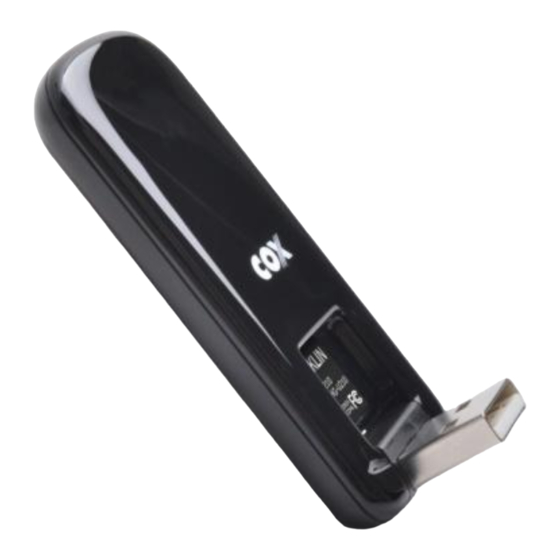

Mobile Broadband modem U210 User Manual Franklin Access Manager™ for Cox Version 1.0 for Windows... -
Page 2: Table Of Contents
Introduction to U210 USB Modem ..............5 Product Specifications ..................5 Product handling ..................... 5 Configuration ....................6 2. INSTALLATION AND SETUP FOR FRANKLIN ACCESS MANAGER™ ......7 Installing Software ................... 8 Setup Program ....................9 3. STARTING FRANKLIN ACCESS MANAGER™ ............13 Features ....................... -
Page 3: Before Using U210
U210 Mobile Broadband Modem Section 1, 1. BEFORE USING U210 About This User’s Manual Product Overview Product Package Contents Introduction to U210 USB Modem Product Specifications Product handling Configuration ... -
Page 4: About This User"S Manual
U210 EVDO USB modem. Instructions Install the Franklin Access Manager™ software by inserting the U210 USB Device into your PC. The installation software is included in the U210 modem memory. When you insert the U210 into your computer, the installation process will automatically begin. -
Page 5: Introduction To U210 Usb Modem
U210 Mobile Broadband Modem Introduction to U210 USB Modem The U210 is designed for the USB port on your computer, which is available in most PC models. The U210 allows you to Access the Internet, Send and receive e-mail ... -
Page 6: Configuration
U210 Mobile Broadband Modem Configuration To use the U210 on your computer, you need to install the Franklin Access Manager™ connection manager software included in the modem memory and configure the U210 USB device. See the next section for more information on software installation and USB device configuration. -
Page 7: Installation And Setup For Franklin Access Manager
U210 Mobile Broadband Modem Section 2, 2. INSTALLATION AND SETUP FOR FRANKLIN ACCESS MANAGER™ Installing Software Setup Program ... -
Page 8: Installing Software
Once hardware detection is complete, you will be prompted to start activation. It is normal to hear a short beep sound each time you insert or remove the U210. ... -
Page 9: Setup Program
U210 Mobile Broadband Modem Setup Program STEP 1: The “Welcome to the Franklin Access Manager Setup Wizard” screen appears. Click the [Next] button to continue with the installation process. - Page 10 U210 Mobile Broadband Modem STEP 2: You are now ready to select the location on your computer where Franklin Access Manager™ will be installed. It is recommended that you do not modify the default destination folder. Click the [Next] button to continue.
- Page 11 U210 Mobile Broadband Modem STEP 3: During this step the components of Franklin Access Manager product are being installed onto your computer. Installation will occur to the destination folder specified in Step 2.
- Page 12 U210 Mobile Broadband Modem STEP 4: Installation of Franklin Access Manager is now complete. Click the [Close] button to leave the Franklin Access Manager setup program and begin using your new software. ※ The setup program will automatically create a Franklin Access Manager shortcut on your desktop.
-
Page 13: Starting Franklin Access Manager
U210 Mobile Broadband Modem Section 3, STARTING FRANKLIN ACCESS MANAGER™ Features Getting Started Connecting to the Internet ... -
Page 14: Features
Franklin Access Manager™ connection manager. Getting Started Double click on the Franklin Access Manager icon on your desktop or click on the Windows Start menu and select Franklin Access Manager from the list of programs. About the Wireless Networks View Franklin Access Manager will open the Broadband Networks window as shown below. -
Page 15: Connecting To The Internet
The Status Bar Information regarding your current network connection can be seen in the status bar along the bottom of Franklin Access Manager interface. For more information on this status bar, see the section “The Status Bar” in the “Additional Features” section. - Page 16 Based on your preferences, your browser can be launched automatically upon connection. Using the “Data” connection: By default Franklin Access Manager enables the software for data connections. If your connection fails when you try to connect, please try to reconnect.
-
Page 17: Using Franklin Access Manager
U210 Mobile Broadband Modem Section 4, USING FRANKLIN ACCESS MANAGER™ The Session Menu The Tools Menu The Options Menu The Help Menu Additional Features ... -
Page 18: The Session Menu
Statistics: At any time during your connection you can check your current connection speed and throughput stats in the Statistics window. To see this window, select “Statistics” from the “Session” menu. Exit: Close the Franklin Access Manager™ Software... -
Page 19: The Tools Menu
U210 Mobile Broadband Modem The Tools Menu Log: This feature provides a concise session log of your network activity. Click on a column heading to sort the log. This window also displays the total number of sessions as well as the total connected time. The information displayed in the Usage log can be customized using the controls that appear just below the list. - Page 20 U210 Mobile Broadband Modem Test Device: Retrieve and display detailed information about your WWAN device (1xEV- DO/1xRTT/CDMA USB Modem) such as CM port, model, MEID, MDN, etc. This information can be valuable when troubleshooting a problem. Monthly Usage: ...
- Page 21 U210 Mobile Broadband Modem Monthly Usages: Upper area on this window shows you monthly usage history of data connection. (max: 6-month) Daily Usages: If you choose an item in the upper list, this area shows you daily usage list in detail.
-
Page 22: The Options Menu
Show Splash Window: Display splash window when Franklin Access Manager starts. Minimize Application into Tray: When you minimize the application it will now appear in the Windows task bar. To restore the application click on Franklin Access Manager tray icon, and select[Open]. - Page 23 (2) WWAN Specific Settings When Connected: This is used to set various WWAN connection settings. Open Web Browser: If it is checked, y, Franklin Access Manager will launch the default web-browser automatically when the data connection is established successfully.
- Page 24 U210 Mobile Broadband Modem (3) LBS settings This feature allows Franklin Access Manager software to setup LBS options. LBS Options: Enable/Disable LBS function and confirmation screen for Privacy Consent Agreement. Mapping & Search Services: You can choose the map service for result of ...
- Page 25 U210 Mobile Broadband Modem (4) VPN Settings VPN Options None: Do not use VPN Microsoft VPN: Use VPN client of Microsoft Windows. External VPN Application: Use other VPN client application provided another vendor. Specify other VPN client application. To choose the application from your local disk, click“...
- Page 26 U210 Mobile Broadband Modem (5) Update settings This feature allows Franklin Access Manager software to check for software updates and it can be updated manually or automatically. Update Option Manually: If you choose this option, the software will only check for update ...
-
Page 27: The Help Menu
U210 Mobile Broadband Modem The Help Menu Contents: It provides contents for additional information. Check for Updates: Select this option to check for the available latest software. About: Displays copyright and U210 device information... -
Page 28: Additional Features
U210 Mobile Broadband Modem Additional Features In addition to the basic features mentioned in previous sections, Franklin Access Manager has the additional features listed below. Status Bar The details of your current connection can be seen in the status bar at the bottom of Franklin Access Manager interface. - Page 29 U210 Mobile Broadband Modem Throughput The amount of data that you have sent and received since the current network connection was initiated can be seen by holding the mouse over. Elapsed Time The amount of time that has elapsed since the current network connection was...
-
Page 30: Installing U210
U210 Mobile Broadband Modem Section 5, 5. INSTALLING U210 Recommended System Requirements Remove the Modem from your computer Using the USB Extension Cable Care and Maintenance Warranty SAR Information Care and Maintenance Safety Information ... -
Page 31: Recommended System Requirements
U210 Mobile Broadband Modem Recommended System Requirements To successfully install and use the U210 USB device in your PC, the following system specifications are required. Item Required Specification Windows® 2000/XP/Vista Operating system Mac OS X 10.3.9 or higher USB Port... -
Page 32: Care And Maintenance
WARRANTY Manufacture’s Limited One-Year Warranty: Franklin Wireless (the company) warrants to the original retail purchaser of this device, that should product or any part thereof, during normal consumer usage conditions, be defective in material or workmanship that results in product failure within the first twelve (12) month period from the date of purchase, such defects will be repaired or replaced (with new or refurbished) product at the Company‟s discretion, without charge for parts... - Page 33 This includes all contact lists, downloads (i.e. third-party software applications, games and graphics) and any other data added to your device. Franklin Wireless is not responsible for and does not guarantee restoration of any third-party software, personal information or memory data contained in, stored on, or integrated with any wireless device, whether under warranty or not, returned to Franklin Wireless‟...
-
Page 34: Sar Information
FCC ID: XHG-U210. Additional information on Specific Absorption Rates (SAR) can be found on the Cellular Telecommunications Industry Association (CTIA) web-site at http://www.wow-com.com. * In the United States and Canada, the SAR limit for mobile phones used by the public is 1.6 watts/kg (W/kg) averaged over one gram of tissue. -
Page 35: U.s.a
U210 Mobile Broadband Modem U.S.A. U.S.FEDERAL COMMUNICATIONS COMMISSION RADIO FREQUENCY INTERFERENCE STATEMENT INFORMATION TO THE USER NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules...
