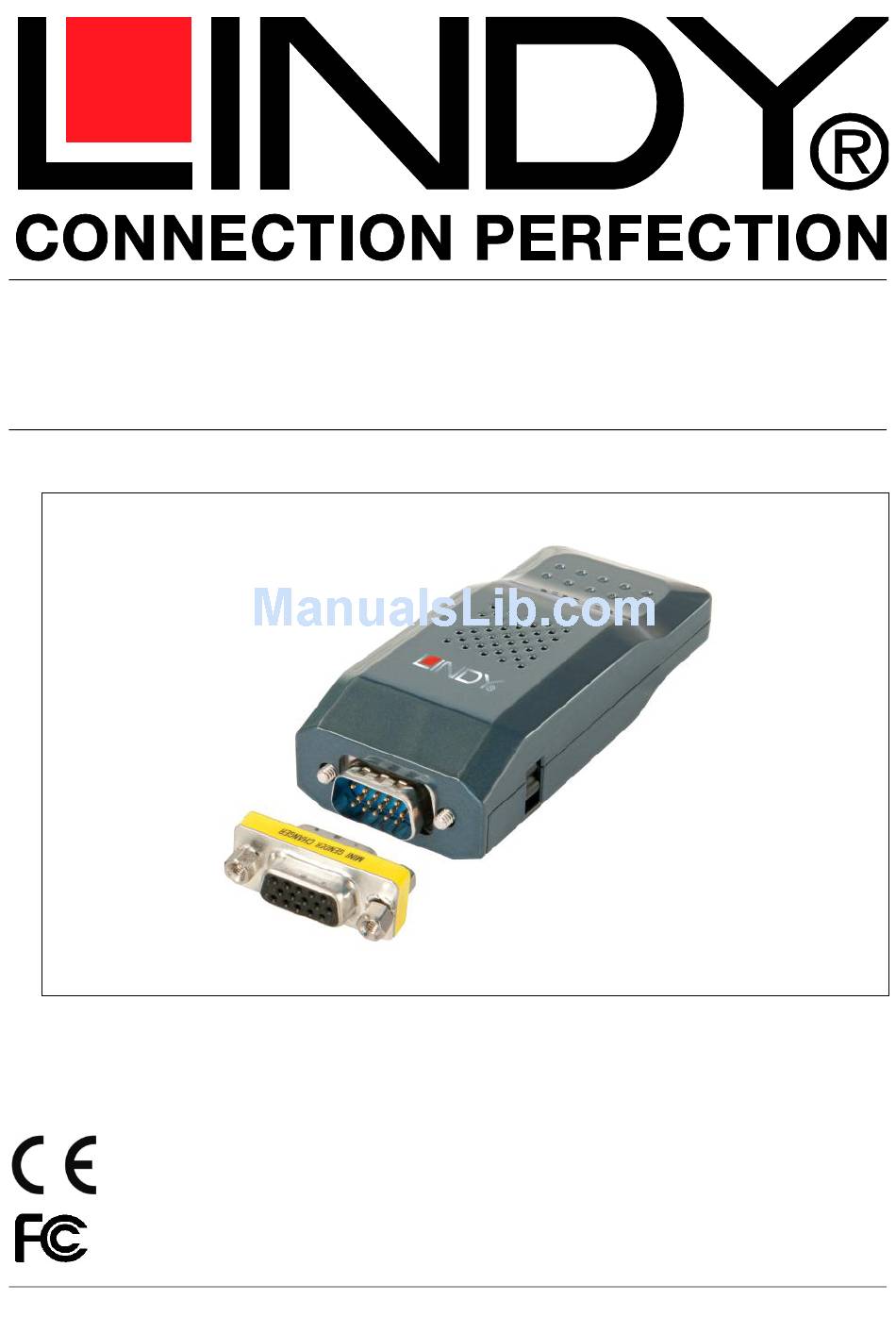

- Page 1 WLAN Projector Server Compact User Manual English LINDY No. 32697 www.LINDY.com For Home and Office Use Tested to Comply with FCC Standards © LINDY ELECTRONICS LIMITED & LINDY-ELEKTRONIK GMBH SECOND EDITION (Apr 2013)
-
Page 2: Table Of Contents
English Manual English 2 Table of Contents Overview ................... 3 Quick Start..................5 Windows Client Utility ..............8 Starting Program ................8 Login ..................... 9 Main User Interface ..............9 Screen Projection ............... 10 Menu Description ............... 10 3.5.1 Show Login Code ..............11 3.5.2 Open Admin Web Page ............ -
Page 3: Overview
English Manual English 3 1. Overview WPS Dongle is a must-have device for your meeting room! It turns your existing "wired" projector into a "high-end wireless" projector. With the revolutionary Plug-and-Show wireless projection features, WPS makes every of your presentation and meeting efficient and successful. -
Page 4: English Manual English
English Manual English 4 AP Client Mode You can enable the AP-Client Mode function to let WPS join the existing Access Point through Wi-Fi. This feature provides the flexibility of wireless network deployment in enterprise environment. Support PoVGA Connect WPS Dongle to a projector supporting PoVGA, the power can be supplied directly from the VGA port without external power adapter. -
Page 5: Quick Start
English Manual English 5 Features ■ Support Windows Win7, Vista, XP, and Mac ■ Support Macintosh(Mac) version 10.5 and above. ■ Plug and Show! No installation required … just plug in the accompanied token to a USB port, and hassle free presentation can be started in seconds. ■... - Page 6 English Manual English 6 3) Make sure your PC WLAN is enabled already, and connect your PC with WPS Dongle. 4) Open your browser and enter the IP address to access the WPS web home page. The default IP address of WPS is 192.168.100.10 or refers to the IP address shown on the left corner of projector screen.
-
Page 7: English Manual English
English Manual English 7 6) Make sure your personal firewall allows WPS software to pass through. 7) Select device that your want to projection 8) Enter the LOGIN CODE and You can see the login code on the projector screen... -
Page 8: Windows Client Utility
English Manual English 8 9) Click the “Play” button to start projection! Windows Client Utility Starting Program After you download WPS Windows program via web page successfully, then follow below steps to start. 1) Click WPS icon to execute the program. 2) Program start to search for WPS box automatically, 3) If WPS box found then “Login Code”... -
Page 9: Login
English Manual English 9 WPS box is found and enter login code to start. Login 1) After “Login Code” dialog box shown, enter login code to start presentation. 2) You can see the login code shown on the projector screen. Main User Interface Menu Area Status Indicator... -
Page 10: Screen Projection
English Manual English 10 Screen Projection Click the “Play” button for full or split screen, you can project the main screen on to the display immediately, click the “Pause” button, you can freeze your projection screen, click the “Stop” button to stop projecting your screen, by clicking speedy mode button, the projection will enter speedy mode for faster projection. -
Page 11: Show Login Code
English Manual English 11 3.5.1 Show Login Code Click “Show Login Code”, it will display the login code on the right-upper of desktop and close it automatically after 10 seconds. You can also click on the area to close this window manually. 3.5.2 Open Admin Web Page to open function menu and select “Web Admin”... -
Page 12: Wifi Ap-Client Configuration
English Manual English 12 3.5.3 WiFi AP-Client Configuration Click “WiFi AP-Client Configuration” to set AP client mode to join others Access Point via wireless, besides, the others user client also can login WPS for presentation and join to others Access Point network, 3.5.4 Searching Server Click “Search Server”... -
Page 13: Projection Source
English Manual English 13 3.5.5 Projection Source Click the “Projection Source”, you can select to project the main screen of desktop or the virtual extended screen. P.S: Virtual Extended Screen option You need to install “VDD.exe” driver first which is stored in the USB token. Note: Unsupported Win7 starter. -
Page 14: Auto Power Manager
English Manual English 14 3.5.7 Auto Power Manager To make the highest projection performance, application will turn the PC’s windows power scheme from current settings to “highest performance”, however, you can click the “Auto Power Manage” to enable or disable this function and restore you power scheme immediately. 3.5.8 Hide UI Click the “Hide UI”, you can choose to hide or display the application control panel from... -
Page 15: Advanced Screen Capture
English Manual English 15 3.5.9 Advanced Screen Capture Click the “Advanced Screen Capture”, you will be able to see tip windows and other layered windows (include the main UI) on the connected display. However, the mouse cursor may blink from time to time when you are projecting your PC screen! ... -
Page 16: Make Wps Token
English Manual English 16 3.5.10 Make WPS Token Click “Make WPS Token” to make a USB WPS Token, you can insert a USB thumb drive and follows the wizard to make the Token. -
Page 17: Copy Application To Desktop
English Manual English 17 3.5.11 Copy Application to desktop Click the “Copy Application to desktop”, it will copy the application to your desktop immediately even you don’t have the system privilege... -
Page 18: Hot Key
English Manual English 18 3.5.12 Hot Key Click “Hot Key” to show Hot Key guide. You can use hot key to control the projection by keyboard. 3.5.13 About Click “About” to show system information. It includes product model name, Client version, IP address and other information. -
Page 19: Exit
English Manual English 19 3.5.14 Exit Click “Exit” to exit this application. It will stop current playing status and close the application immediate. 4. Mac Client Utility a. Launch Application Enable your WiFi and connect to WPS device. Execute WPS client software for Mac. - Page 20 English Manual English 20 Launch WPS software and enter the login code. Start Projection.
-
Page 21: Main User Interface
English Manual English 21 b. Main User Interface Menu Area Status Indicator Control Area for Screen Projection Feature c. Screen Projection Click the “Play” button for full or split screen, you can project the main screen on to the display immediately, click the “Pause”... -
Page 22: Web Management
English Manual English 22 5. Web Management a. Home Page 1. Make sure your PC connect to WPS box successfully. 2. Open your browser, it will enter WPS home page automatically. 3. If not, enter your IP address on the browser, you can see the IP on the projector screen. 4. -
Page 23: Login Web Admin
English Manual English 23 c. Login Web Admin 1. Click [Admin] and then enter password to login web page. 2. The password default value is “admin”. -
Page 24: System Status
English Manual English 24 i. System Status Click [System Status], shows current system status. Model Name: Product model name Versions: 1. Firmware version no.: Product firmware version number. Network Status: 1. IP address： IP address of WPS device. 2. Subnet Mask： subnet mask 3. -
Page 25: Network Setup
English Manual English 25 ii. Network Setup There are many kinds of operating configurations as below. < Auto-Configuration Network Setup> The default setting of the WPS box is DHCP client. When the WPS box is connected to a LAN that already has a DHCP server present, the WPS box takes an IP address assigned to it by the server. -
Page 26: Osd Setup
English Manual English 26 Default Gateway: The default value is 192.168.100.10 DNS Server: The default value is 192.168.100.10 < Wireless Setup> Wireless LAN: The default value is “Enable”. Embedded AP SSID: SSID string,max. Length is 32 bytes. Connect to Existing AP: This is “AP client” mode feature. By this feature you can join others Access Point via wireless. -
Page 27: Projection Setup
English Manual English 27 Click [OSD Setup] button, to change OSD standby image. <Restore Initial>: Restore to default OSD standby image. <Image File Upload>: Upload the customized OSD standby image. (You need to convert the image to system defined format using provided IB Maker utility which is stored in the USB token.) iv. -
Page 28: Change Passwords
English Manual English 28 v. Change Passwords Click [Change Password] button, to change password value. The length of password is up to 8 characters. <Enter New Password>: enter new password you want to change for each category. <Confirm New Password>: double confirm new password. <Apply>: Confirmation and Save modifications. -
Page 29: Firmware Upgrade
English Manual English 29 vii. Firmware Upgrade Click [Firmware Upgrade] button to upgrade firmware. 1. Firstly, you have to get latest firmware image file from your vendor. 2. Click <Browse> to specify file name you want to upgrade. 3. Click <Upgrade> to start. 4. -
Page 30: Reboot System
English Manual English 30 Warning: Don’t power off WPS while firmware upgrade in progress, otherwise will cause your Box doesn’t work and have to return device to your vendor for fixing. viii. Reboot System Click [Reboot System] button, to restart system <Reboot>: reboot system automatically. -
Page 31: Appendix
English Manual English 31 6. Appendix Screen Image Background Maker Quick Installation Guide Version: 1.00... - Page 32 English Manual English 32 1) Run the “Screen Image Background Maker” and follows the wizard to convert the image file. 2) Press “Open” to select a file to convert this image for background use. 3) Press “Saver” to save this file.(*.ib)
- Page 33 English Manual English 33 4) Please connect to WPS webpage, and then connect to OSD setup page. 5) Press “Browser” to choose the *.ib file.
- Page 34 English Manual English 34 6) Press “image file upload” to upload your background image. Then it will show the message as below. Note: You may find “Screen Image Background Maker” in the USB Token.
-
