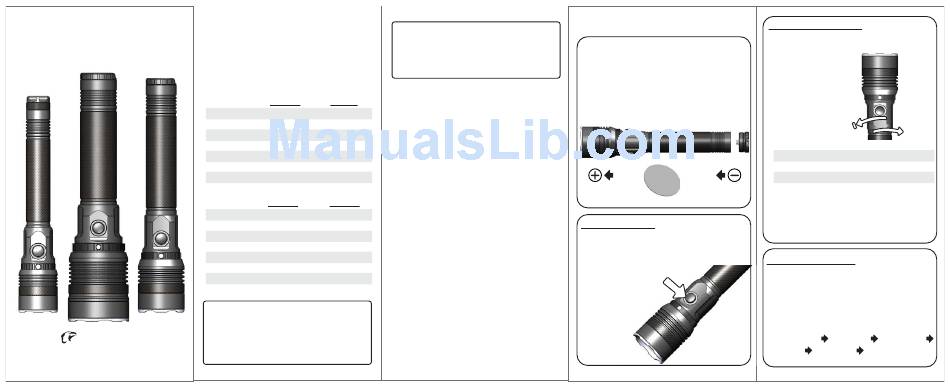

EAGTAC GX User Manual

User Manual
GX / MX / SX
Models
EAGTAC
High Performance Tactical Flashlight
http://www.eagletac.com
EAGTAC GX25L2, SX25L2 and MX25L2
models offer maximum output perfor-
mance, versatile user interface, tough
build quality and rich accessories like no
other flashlight offers. This series is
designed for police, professionals, and
hobbyists.
GX25L2 SX25L2
LED XM-L U2 XM-L U2
LED Lumen 1060 1130
ANSI Lumen 870 925
Runtime 2 - 150 hrs 2.7 - 200 hrs
(R22) (R33)
Output 4 / 7 4 / 7
/AUX level
Circuit C3500 SEL C4000 SEL
Batteries 2 x18650 2 x26650
Voltage 2.7V-12V 2.7V-8.4V
MX25L2 MX25L2
LED SST-90 N3 3 x XM-L U2
LED Lumen 2700 2850
2120 2350
ANSI Lumen
Runtime 1.3 - 200 hrs 1.3 - 200 hrs
(R44) (R44)
Output 4 / 7 4 / 7
/AUX level
Circuit C9500 SEL C9500 SEL
Batteries 2 x32650 2 x32650
2.7V-8.4V 2.7V-8.4V
Voltage
IMPORTANT - Only use the integrated built-in
charging socket to charge the original EAGTAC
7.4V battery pack. Charging unbalanced third
party 7.4V 18650 battery pack, two individual
3.7V 18650 cells, or non-rechargeable batteries
(e.g. 3V CR123A) may result in flashlight damage.
WARNING - Lithium and Li-ion batteries
can explode or cause burns if disas-
sembled, shorted, or exposed to high
temperature. Do not mix with used or
other battery types or install backwards.
Battery Safety Precaution
All EAGTAC flashlights are designed to
use "button-top" battery (battery with
protruding positive terminal). For
rechargeable li-ion battery, use only
EagleTac li-ion battery, or other
protected li-ion battery with compat-
ible length and diameter. Before using
the battery, check and ensure the
battery outer wrapping (the isolating
plastic film that wraps around the
metal housing of the battery) is com-
plete. Broken battery wrapping may
lead to short circuit and damage to the
flashlight.
Lithium and Li-ion battery can explode
or cause burns if disassembled,
shorted, or exposed to high tempera-
ture. Do not mix new and used batter-
ies. Do not mix batteries with different
brand, capacity, voltage, or install
batteries backwards. When the output
starts to dim (this implies battery is
almost drained), replace the batteries.
Do not drain the batteries completely
especially when you're using two (or
more) batteries in series.

Quick Start Guide

1) Unscrew the tailcap and remove the
battery isolation disk at the end of the
battery to use. If your flashlight does not
come with battery, insert new batteries
(w/ protrude top) to use. Ensure positive
terminals is facing the LED. Replace
tailcap and tighten snugly.
Battery Isolation Disk
LED (Front) Tail-cap (Back)
Basic ON and OFF
Turn on the light by press and release
the on/off button switch (<0.4s). To turn
off the light, press and release the
switch again.
For momentary on,
press and hold
the button
switch for
immediate
output.
Adjusting output level
Twist the head to select between four
output levels. You can pre-select the
desired output level
before turning on
the flashlight.
2nd, 3rd,
4th level
1st level
Level Tactical Mode Regular Mode
1st 100% 100%
2nd 10% 35%
3rd Strobe I 6%
4th Strobe II 0.1%
To switch between tactical and regular
mode, turn on the flashlight at 1st level,
dial to 2nd level and then back to 1st
level for five times within five seconds.
Hidden AUX. settings
With the head at tight position (1st
level), loosen to 3rd (or 4th level) and
tighten the head within one second to
enter AUX. setting. Repeat to cycle
through all settings. Turn off the light or
loosen the head to quit.
Strobe (I/II) Hi-Flash S.O.S. (I/II)
Beacon Lo-Flash
