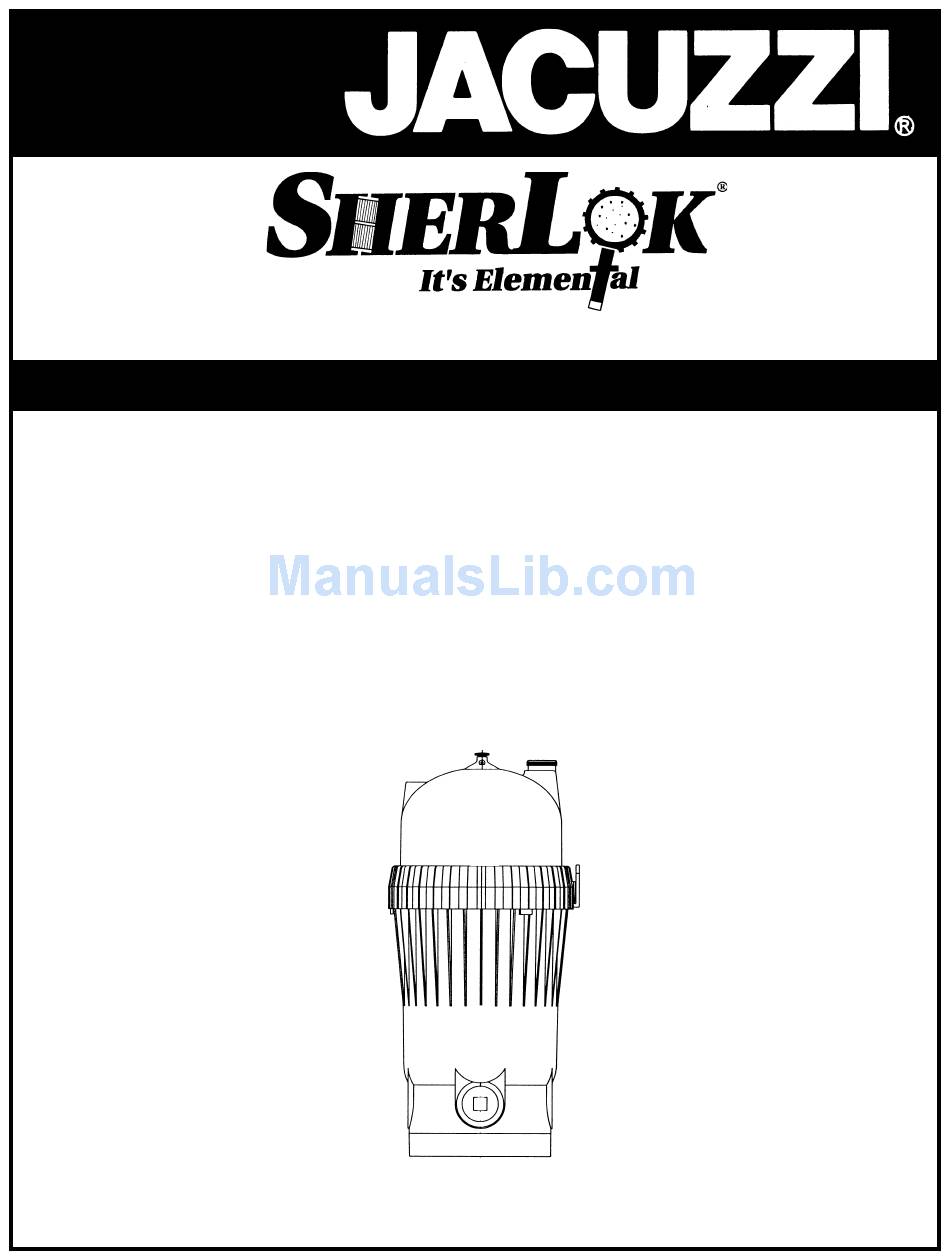

E1530
Congratulations! You have purchased one of the most user-friendly pool
filters available. Jacuzzi is a leader in providing superior products, combining easy
installation and simple service.

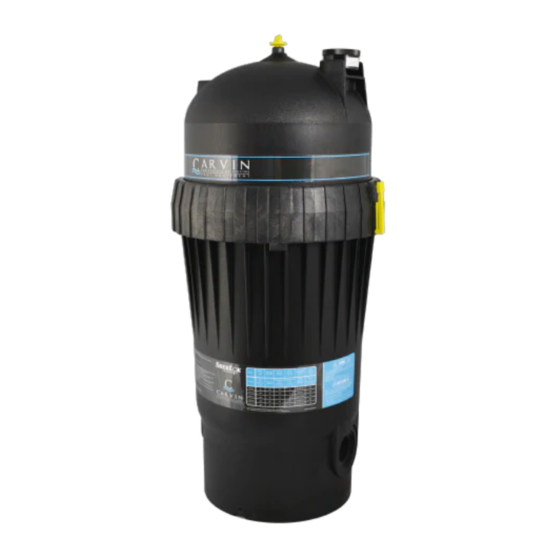

This Sherlok Element filter manufactured by Jacuzzi Bros. will provide you
with many years of pool enjoyment. Ideal for most pools, your Sherlok Element
filter with Ring-Lok access allows you to easily clean the filter cartridge without
any tools.
This step-by-step installation and maintenance guide will provide the neces-
sary information for you to install your new filter and easily maintain the equip-
ment.
12401 Interstate 30
Element Filter
Owner's Manual and Installation Guide
P.O. Box 8903
Little Rock, AR 72219-8903
Telephone: (501) 455-1234
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Jacuzzi SHER80
Summary of Contents for Jacuzzi SHER80
- Page 1 Owner's Manual and Installation Guide E1530 Congratulations! You have purchased one of the most user-friendly pool filters available. Jacuzzi is a leader in providing superior products, combining easy installation and simple service. This Sherlok Element filter manufactured by Jacuzzi Bros. will provide you with many years of pool enjoyment.
- Page 2 Before Installation be sure to read all instructions and We do not recommend the use of silicone or petroleum based warnings carefully. compounds. DO NOT OVERTIGHTEN-HAND TIGHTEN Refer to product dataplate(s) for additional operating instruc- PLUS 1/2 TURN IS SUFFICIENT. tion and specifications.
- Page 3 SERVICE & REPAIR PARTS Note: The element support assembly on the Sherlok auto- matically purges any accumulated air to maintain the internal Refer all service to your local dealer as his knowledge of water level up to the top of the cartridge. We, however, recom- your equipment makes him the best qualified source of in- mend periodic manual opening of the vent plug to purge any formation.
- Page 4 Questions? Trouble Shooting FILTER TANK LEAKS WATER PRESSURE DOESN'T DROP IN FILTER AFTER Split in tank due to freeze or other damage, CLEANING replace. Dirty filter. Clean element in filter cleaner or Lid o-ring damaged, twisted, or not lubricated replace. Inspect.
- Page 5 PARTS FOR MODELS SHER80 AND SHER120 FIGURE PART NO. DESCRIPTION 42-3671-02-R Nut CFR-Plus Filter 42-3677-06-R Cover Latch CFR Plus 39-2547-01-R Air bleed valve knob w/ 47-0106-08 O-Ring 47-0106-08-R O-Ring 3/16 x 3/8 x 3/32 91-9341-82-R Pressure Gauge 0-60# 1/4 CBM 42-2852-05-R Cover LS/CFR - 80 Ft.
-
Page 6: Limited Warranty
LIMITED WARRANTY Jacuzzi Bros. Division (JBD) warrants its new products to be free of defects in material and workmanship for a period of 1 year from date of installation or 3 years from date of manufacture, whichever comes first. Jacuzzi Bros. also provides additional warranty coverage on specific products as specified herein.
