Springfield Precisetemp 91905 User Manual

Wireless multi-zone digital weather center
Hide thumbs
Table of Contents

Advertisement

Quick Links

FEATURES AND SPECIFICATIONS
BASE STATION
Indoor / wireless outdoor temperature, °C / °F selectable
Indoor / wireless outdoor humidity
Memory function to recall min / max temperature and humidity readings
Temperature trend indicators
Can accept up to 3 remote temperature and humidity sensors
Remote channel auto-scroll
Barometric pressure bar graph with history recall
Weather forecaster with icons
Programmable high / low temperature alert
Heat Index / Dew Point readings
Clock with alarm, calendar
Moon phase display
Low battery indicators for base station and remote
Indoor temperature range: 14°F to 158°F (-10°C to 70°C)
Indoor humidity range: 20% to 95%
Barometric pressure range: 27.47 inHg to 31.01 inHg (930 hPa to 1050 hPa)
Tabletop easel stand or wall mount
Uses (2) AA batteries (not included)
WIRELESS MULTI-ZONE
DIGITAL WEATHER CENTER
Model No. 91905
User's Manual
BASE STATION
REMOTE SENSOR
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Precisetemp 91905 and is the answer not in the manual?

Questions and answers

Related Manuals for Springfield Precisetemp 91905

Summary of Contents for Springfield Precisetemp 91905

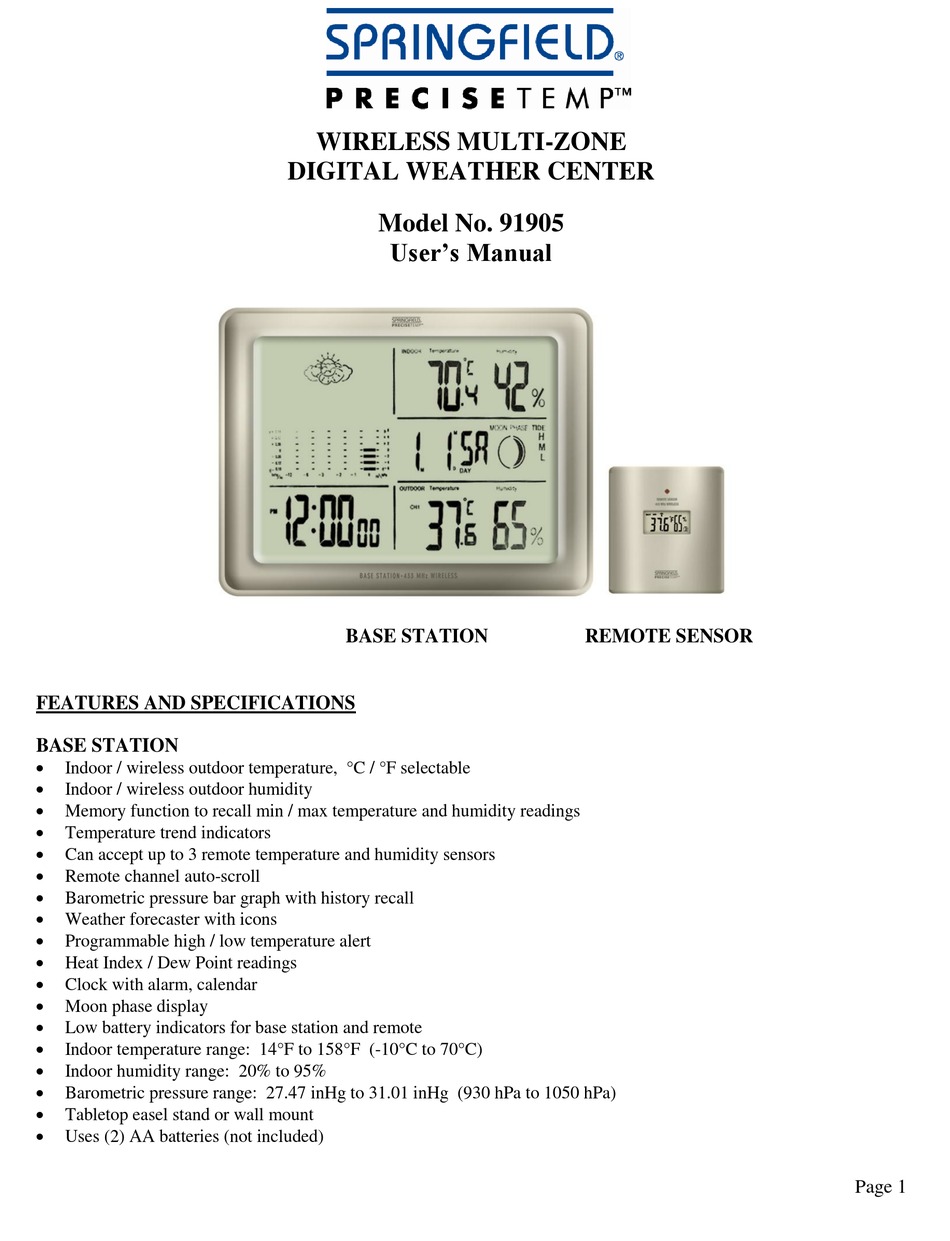

  • Page 1 WIRELESS MULTI-ZONE DIGITAL WEATHER CENTER Model No. 91905 User’s Manual BASE STATION REMOTE SENSOR FEATURES AND SPECIFICATIONS BASE STATION  Indoor / wireless outdoor temperature, °C / °F selectable  Indoor / wireless outdoor humidity  Memory function to recall min / max temperature and humidity readings ...

  • Page 2: Remote Sensor Features

    REMOTE SENSOR  433 MHz wireless transmission frequency  Wireless data transmission to base station up to 100 ft. (range may vary based on the amount of interference present)  LCD readout showing temperature and humidity  Outdoor temperature range without wire probe: -4°F to 158°F (-20°C to 70°C) ...

  • Page 3: Battery Installation And Setup

    BATTERY INSTALLATION AND SETUP Notes: Notes:  Always replace all batteries at the same time; do not mix old and new batteries. Do not mix alkaline, standard (carbon-zinc) or rechargeable (ni-cad, ni-mh, etc.) batteries.  For maximum performance in normal conditions we recommend using good quality alkaline batteries. When temperatures are near or below freezing (32°F / 0°C), alkaline batteries can lose power resulting in a loss of remote transmission.

  • Page 4: Operating Instructions

    walls, metal doors, metal framed windows, thick concrete, stone or brick may reduce the transmission range. To optimize the transmission distance, the base and remotes should be positioned in locations that minimize these obstructions. Interference from other sources such as home security systems, wireless doorbells and wireless home entertainment equipment may interrupt the transmission signal temporarily.

  • Page 5: Silencing The Alarm

    Silencing the Alarm  When the alarm sounds press any button on the base station to silence the alert or press SNOOZE to activate the snooze function  When snooze is activated the Zz symbol will appear and the alarm will sound again in 5 minutes ...

  • Page 6: Setting The Outdoor Temperature Alert

     To display the numerical pressure reading for prior periods, use the HISTORY button. Press once to view the pressure reading one hour prior (-1), twice to view two hours prior (-2), etc. up to 12 hours prior. WEATHER FORECAST ICONS Based on temperature, humidity and barometric pressure data collected over the previous 12 hours, the base unit predicts weather conditions for the next 12 –...

  • Page 7: Heat Index And Dew Point Temperatures

    PURCHASING ADDITIONAL REMOTE SENSORS Additional temperature sensors may be ordered directly from Taylor Customer Service at 1-866-843-3905. The remote sensor for this unit is SPRINGFIELD P/N 91661. Note: It will only display and transmit the temperature, not the humidity. Page 7...
  • Page 8 For additional product information, or warranty information outside the USA, please contact us through www.taylorusa.com or www.springfieldprecision.com. © 2013 Taylor Precision Products, Inc. and its affiliated companies, all rights reserved. Springfield® is a registered trademark of Taylor Precision Products, Inc and its affiliated companies, all rights reserved.
