Eyelet
USE a rubber band to
Battery pack
secure the transceiver
(BP-227)
while charging, if
desired.
AC adapter*
(BC-145)
* Use the designated
AC adapter only.
CHARGE INDICATOR
• Lights orange : While charging
• Lights green : Charging is completed.
• Blinks red
: The inserted battery pack and/or
the charger have some problems.
: The protector is activated (not a
malfunction) such as when;
- The battery pack temperature ex-
ceeds +45°C (+113 ).
˚F
• Remove and cool down the BP-
227.

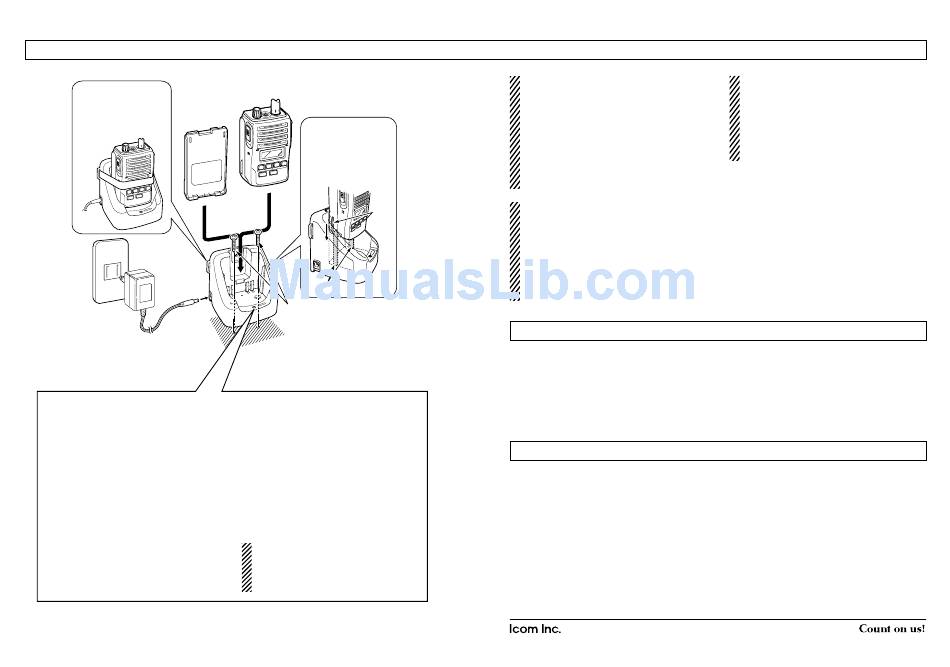

CHARGING OPERATION
Transceiver
Ensure the guide lobes
on the battery pack are
correctly aligned with
the guide rails inside of
the charger.
Lobes
Guide rails
Supplied screws
BC-190
- The end of the battery pack's working
life.
• When the indicator blinks within 1
hour from the start of the charging,
charge the BP-227 without a trans-
ceiver or with a powered-off trans-
ceiver. In case the charge indicator
still blinks red, replace to a brand
new BP-227.
When the charge indicator does
not light even after a battery pack is
inserted properly, the battery pack
may have some problems.
While Charging:
• AVOID transmission. Remove the trans-
ceiver from the charger when you need
to transmit.
• REMOVE the transceiver immediately
from the charger when you receive a
call.
• REMOVE optional equipment from [SP
MIC] jack of the transceiver.
NOTE:
The BC-190 will not fully charge a battery
pack (about 90% of fully charged condi-
tion) for battery protection. And the oper-
ating time of a transceiver with the battery
pack will be shorter. If you would like to
fully charge the battery pack, use the BC-
119N instead of the BC-190.

SUPPLIED ACCESSORIES

Item
• AC adapter (BC-145)* ······································································································ 1
• Screws (3.5×30 mm) ······································································································· 2
* Different type or no AC adapter is supplied depending on the version.

SPECIFICATIONS

Dimensions : 86(W)×78.5(D)×81(H) mm
3 ⁄ (W)×3
(proj. not incl.) 3
8
Weight : Approx. 144 g; 5 oz
Charging temperature range : +10˚C to +40˚C; +50˚F to +104˚F
Power supply requirement : 12 to 20 V DC or the specified Icom AC adapter
Charging current : 840 mA±10%
All stated specifications are subject to change without notice or obligation.
Icom, Icom Inc. and the Icom logo are registered trademarks of Icom Incorporated (Japan) in the United States,
United Kingdom, Germany, France, Spain, Russia and/or other countries.
1-1-32 Kamiminami, Hirano-ku, Osaka 547-0003, Japan.
NOTE:
After charging is completed, the BC-190
will recharge a battery pack automati-
cally when the battery voltage decreases
to 8 V. When the battery pack is often
left in the BC-190 for long periods, the
battery life cycle will be shorter.
Charging period
2.5 hours* (BP-227)
* When charging BP-227 with a powered-
on transceiver, the charging period can be
up to 4.25 hours.
⁄ (D)×3 ⁄ (H) in.
3 3
32 16
(BC-145)
(rapid charge)
A-6660D-1EX-q Printed in Japan
© 2008–2009 Icom Inc.
Qty.
