Polk Audio CSW200 Owner's Manual

THIS DOCUMENT APPLIES TO CSW100, CSW200, AND SWA500 PRODUCTS
CSW100
Custom Install Subwoofer

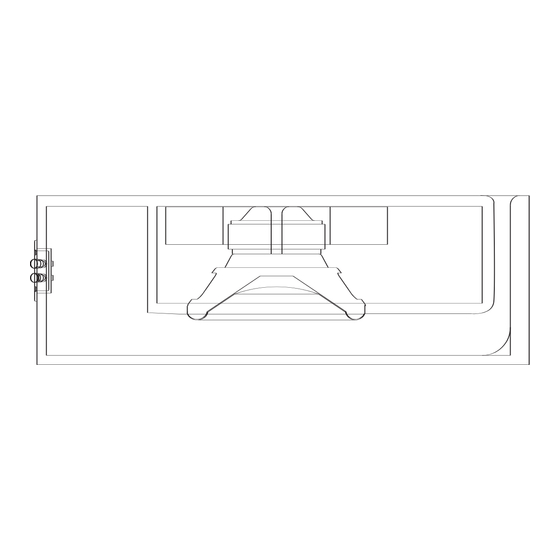

The CSW100 subwoofer is a bandpass design with slot-load venting and has a 10 inch long-throw driver. The
CSW100 fits standard joist spacing and is designed specifically for floor and ceiling installation, or custom enclos-
ures that are at least nine inches (9") deep. All sound comes from an opening approximately 13 inches long by 3
inches wide. There is an access panel on the back of the subwoofer should the driver have to be removed for service.
Hardware (included)
• 1 Subwoofer
• 4 Mounting Brackets
• 16 - 3/4" Particle Board Panhead Screws
• 16 Washers
• 3 Isolation Pads
• 1 Registration Card
• 1 Owner's Manual (also available online)
• Plastic molded grille
• 6 Rubber Buttons (to cover grille screw holes)
Protective Cover
A 1/2" thick protective cover of MDF covers the
CSW100 grille opening. This protective cover
(3 - 1/4" x 13") is also the template you will use to
cut the grille opening. Affixed to the MDF cover
is the following label:
If you choose to use another grille, use one
that doesn't resonate and caulk it.
Wood Joist
Isolation
Pads
/
w w w . P o l k A u d i o . c o m 8 0 0 . 3 7 7 . 7 6 5 5 ( U S A & C a n a d a )
Mounting
Brackets
and Screws
Available Finishes: Black
/
4 1 0 . 3 5 8 . 3 6 0 0 ( W o r l d w i d e )
All the bass
comes out
of here!
Wood Joist
Top View
of CSW100
Subwoofer
in floor
1
