Electric Belt Cutter
Safety and Operating Manual
For cutting rubber and elastomeric materials only.
WARNING
IMPROPER OR UNSAFE use of this power tool can result in death or serious bodily injury!
This manual contains important information about product function and safety. Please read and
understand this manual BEFORE operating the power tool. Please keep this manual available for
other users and owners before they use the power tool. This manual should be stored in a safe place.
www.flexco.com
www.flexco.com • Tel: 1-800-541-8028
Advertisement
Table of Contents
Related Manuals for Flexco EBC1
Summary of Contents for Flexco EBC1

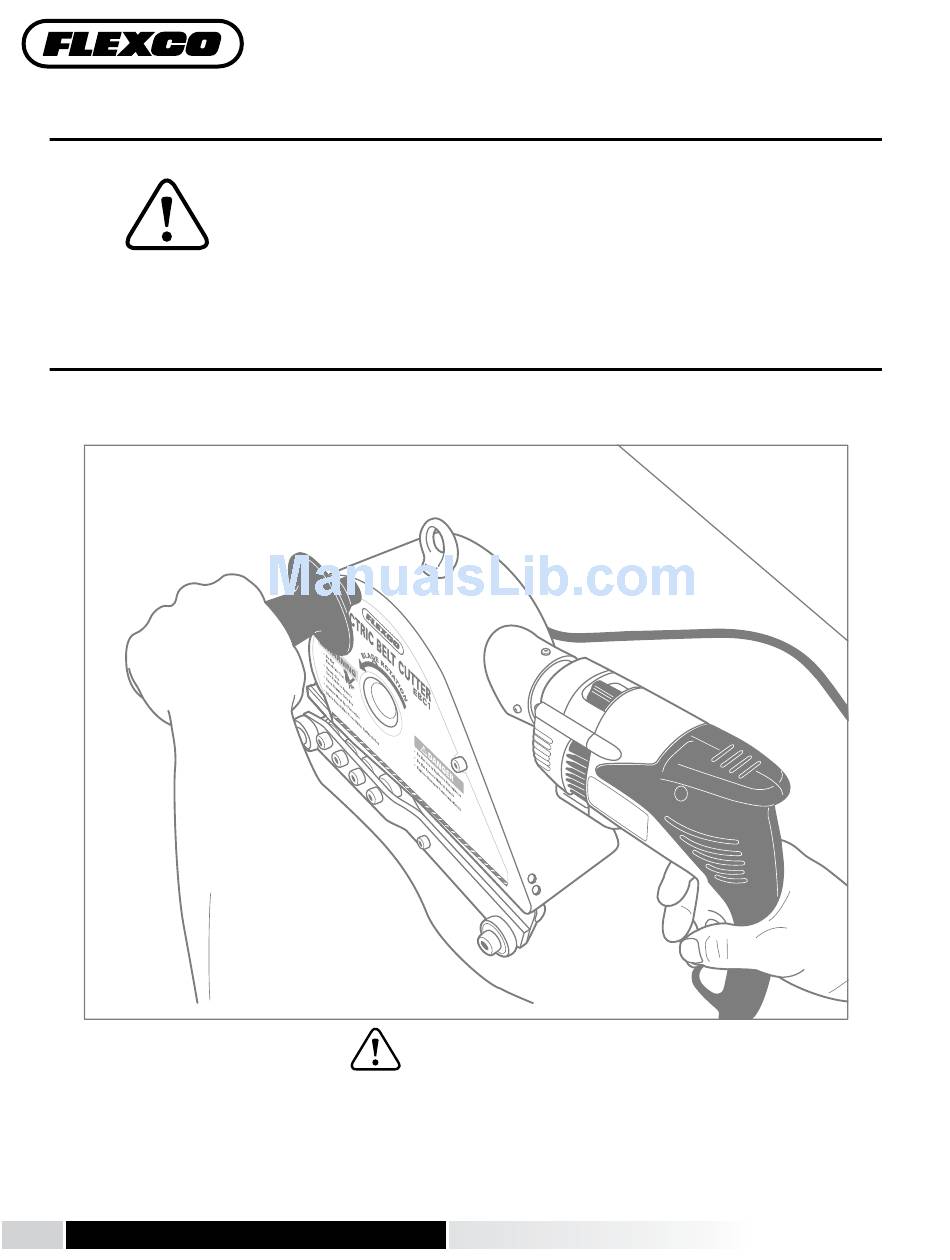

- Page 1 This manual contains important information about product function and safety. Please read and understand this manual BEFORE operating the power tool. Please keep this manual available for other users and owners before they use the power tool. This manual should be stored in a safe place. www.flexco.com www.flexco.com • Tel: 1-800-541-8028...
-
Page 2: Table Of Contents
General Safety Rules ................pgs. 4-7 Tool Preparation ..................pg. 8 Operation of Electric Hammer Drill ............pg. 8 Electric Cutter Operation ...............pg. 9 Tool Maintenance–Bearings ..............pg. 9 Tool Maintenance–Blade Replacement ..........pg. 10 Logbook ....................pg. 11 Spare Parts ....................pg. 12 www.flexco.com • Tel: 1-800-541-8028 —2— —2—... -
Page 3: Main Components
9. Rear Carriage Bolt 10. Carriage Support Bolt DO NOT carry tool by electric hammer drill handle. It is recommended that you place tool in carrying case for traveling extended distances. Tool Specifications EBC2 EBC1 EBC1 EBC2 Specifications Imperial Metric... -
Page 4: General Safety Rules
WARNING Safety Information Never leave tool until it comes to a complete stop. To Avoid Severe Personal Injury or Property Damage, read carefully and understand the following Safety Precautions. www.flexco.com • Tel: 1-800-541-8028 —4— —4—... - Page 5 Electric Belt Cutter General Safety Rules 3. perSONAl SAfeTy 2. elecTrIcAl SAfeTy dANGeR WARNING Stay alert, watch what you are doing and Double Insulated tools are equipped with a use common sense when operating a power polarized plug (one blade is wider than the tool.
- Page 6 If damaged, have the tool serviced before using. Many accidents are caused by poorly maintained tools. www.flexco.com • Tel: 1-800-541-8028 —6— —6—...
-
Page 7: General Safety Rules
Electric Belt Cutter General Safety Rules 6. cIrculAr cuTTer SAfeTy 7. replAcINg The cIrculAr blADe WARNING CAUTION Make sure that the power cable is not located Do not attempt to resharpen blades. This will between circular blade and lower carriage. affect cutting completely through belt. -
Page 8: Tool Preparation
Fig. 2. operation of the cutter. The EBC1 weights 19 lbs. and the EBC2 weights 29 lbs. Operation of Electric Hammer Drill... -
Page 9: Electric Cutter Operation
Belt Cutting Make sure belt is clean. Spray area to be cut Position Electric Belt Cutter on edge of with silicone lubricant (Flexco # 30392, not belt at square line. Align Cutting Guide included). Lift Blade Guard and insert belt on the Blade Guard with square line on between Carriage and Blade Guard. -
Page 10: Tool Maintenance-Blade Replacement
Blade. Remove the Blade and Blade Spacer carefully. 7. Carefully pivot Carriage back into place. Be 8. Replace Carriage Support Bolt. Tighten rear careful to not damage Blade as it slides between the Carriage Bolt. Belt Support Bearings. www.flexco.com • Tel: 1-800-541-8028 —10— —10—... -
Page 11: Logbook
Electric Belt Cutter Logbook DATE NOTES DATE NOTES —11—... -
Page 12: Spare Parts
30008 Thank you for choosing the Flexco Electric Belt Cutter. Your feedback is appreciated and may be directed to Flexco Customer Service at 1-800-541-8028 2525 Wisconsin Avenue • Downers Grove, IL 60515-4200 U.S.A. Telephone: (630)-971-0150 • Fax: (630)-971-1180 • E-mail: info@flexco.com • Web: www.flexco.com Australia: 61-2-9680-3322 •...
