- Page 1 User's Manual MICRO Series Monitor www.altoproaudio.com Version 1.0 Feb. 2007 English...
-
Page 2: Safety Instructions
SAFETY INSTRUCTIONS CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN "Electric discharge" This symbol, alerts you to the presence of uninsulated dangerous voltage inside the product enclosure, which constitutes a risk of electric shock. "Exclamatory point" This symbol, alerts the user to the presence of important operating and maintenance instructions the owner's manual included to the product. - Page 3 TABLE OF CONTENTS 1. INTRODUCTION................................1 PANEL CONTROLS ..............................1 APPLICATION ................................3 4. TECHNICAL SPECIFICATION..........................4...
-
Page 4: Introduction

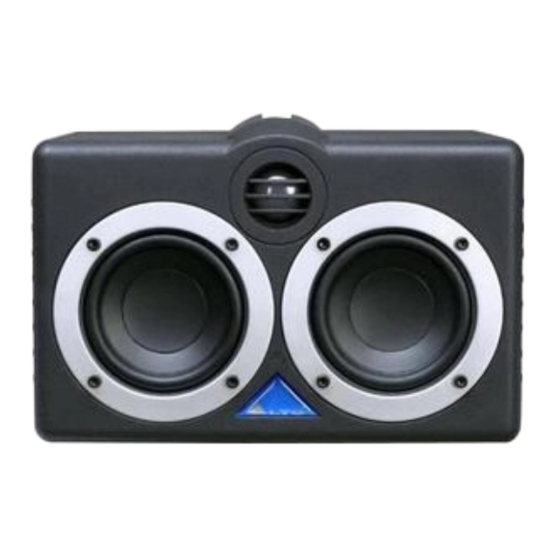

1. INTRODUCTION MICRO series is a set of portable passive / active speakers. This series included in MICRO3 / 3A & MICRO4/4A. Despite its compact dimensions, great performances and sound quality are insured thanks to the specification of the components used and the building quality. It is very suitable for studio, multimedia ect. - Page 5 -. For MICRO series Active Monitor Speakers 30WATTS Signal Input MICRO 3A CONTINUOUS 30 WATTS MODEL SERIAL POWER Use only with a 250V fuse 115V 230V 210-240: 1.0A 250VAC 90-120: 2.0A 250VAC (1) Power Indicator This LED lights up blue when the MICRO series active speaker is powered on. (2) Power Switch This switch is used to turn the MICRO series active speaker on or off.
-
Page 6: Application
3. APPLICATION -. For MICRO series Passive Monitor Speakers matching with Active Monitor Speakers Caution: Before turn on the power of your acti ve monitor speakers MICRO 3A / MICRO 4A, please make all initial connections for your MICRO 3 / MICRO 4 passive monitor speakers first. -
Page 7: Technical Specification
4. TECHNICAL SPECIFICATIONS MICRO 3 MICRO 4 Model No. System type 2 Way 2 Way Power Handing AES 30W AES 60W SPL 1W, 1m 87dB 92dB Frequency Response 50Hz-13kHz (-10dB) 40Hz-15kHz (-10dB) Impedance 8Ohm 4Ohm Crossover Frequency 2.3-3kHz (1m/W) 2.3-3kHz (1m/W) Dimension HxWxD 216.5x143.5x152.5mm 287.5x169x201mm... - Page 8 Tel:852-22621603 http://www.altoproaudio.com.cn email: info@altoproaudio.com.cn Fax:852-27550223 All rights reserved to ALTO. All features and content might be changed without prior notice. Any photocopy, translation, or reproduction of part of this manual without written permission is forbidden. Copyright 2007 ALTO CHINA LIMITED...
