Q
R
UICK
OD
by Splawn
OUT/+4 db
IN/-10 db
A
B
LOOP
VOLUME
LEVEL
FOOTSWITCH
1. Footswitch A -TRS 1/4" Jack Tip switches Solo Volume-- Ring switches OD1/OD2
2. Footswitch B
-TRS 1/4" Jack Tip switches Clean/Overdrive-- Ring switches Mode Switch
3.Effects Loop Volume Master volume control for the effects loop (when using the efx loop do not run
4.Series Effects Loop Level Switch
5. Series Effects Loop Bypass Switch
6. Series Effects Loop Return Jack
7. Series Effects Loop Send Jack
8. Half Power Switch
9. Speaker Outputs
-Connection to the speaker cabinet (never run a tube amp without a speaker)
10. Impedence Selector
11. Main Voltage Selector
12. Main Fuse
-Use 4 amp 250 volt fuse for 100 or 120 volt setting Use 2 amp 250 volt fuse for 220/240 volt setting
13. High Tension Fuse
1. Pre-amp tube - 12AX7b 2nd gain stage of the clean channel
2. Pre-amp tube
-12AX7b Side A 1st gain stage for clean & OD channels -- Side B 2nd gain stage of OD channel
3. Pre-amp tube
-12AX7b Side A 3rd gain stage of OD channel -- Side B 4th gain stage of OD channel
4. Pre-amp tube
-12AX7b Phase Inverter
5. Power Tube
- EL34B (Quickrod) -- KT88
6. Power Tube
- EL34B (Quickrod) -- KT88
7. Power Tube
- EL34B (Quickrod) -- KT88
8. Power Tube
- EL34B (Quickrod) -- KT88
EFFECTS LOOP
OUT/BYPASS
IN/ACTIVE
BYPASS
RETURN
SEND
Quickrod & Pro Mod Rear Panel Controls
-+4db -10db switch for matching line levels to effects units
-True bypass switch for effects Loop and loop volume
-Connection from the output of the effects device
-Connection to the input of the effects device
Disconnects the outside power tubes
always set the amps impedence to half of the speaker cabs impedence when using half power
-4/8/16 ohm selector to match the load of the speaker cabinet
-120/220/240 voltage selector to match the input voltage
-Use 1 amp 250 volt Slow Blow Fuse
1
2
3
HALF POWER
SPEAKERS
FULL POWER
100 WATT RMS
channel volumes over noon)
5
6
4

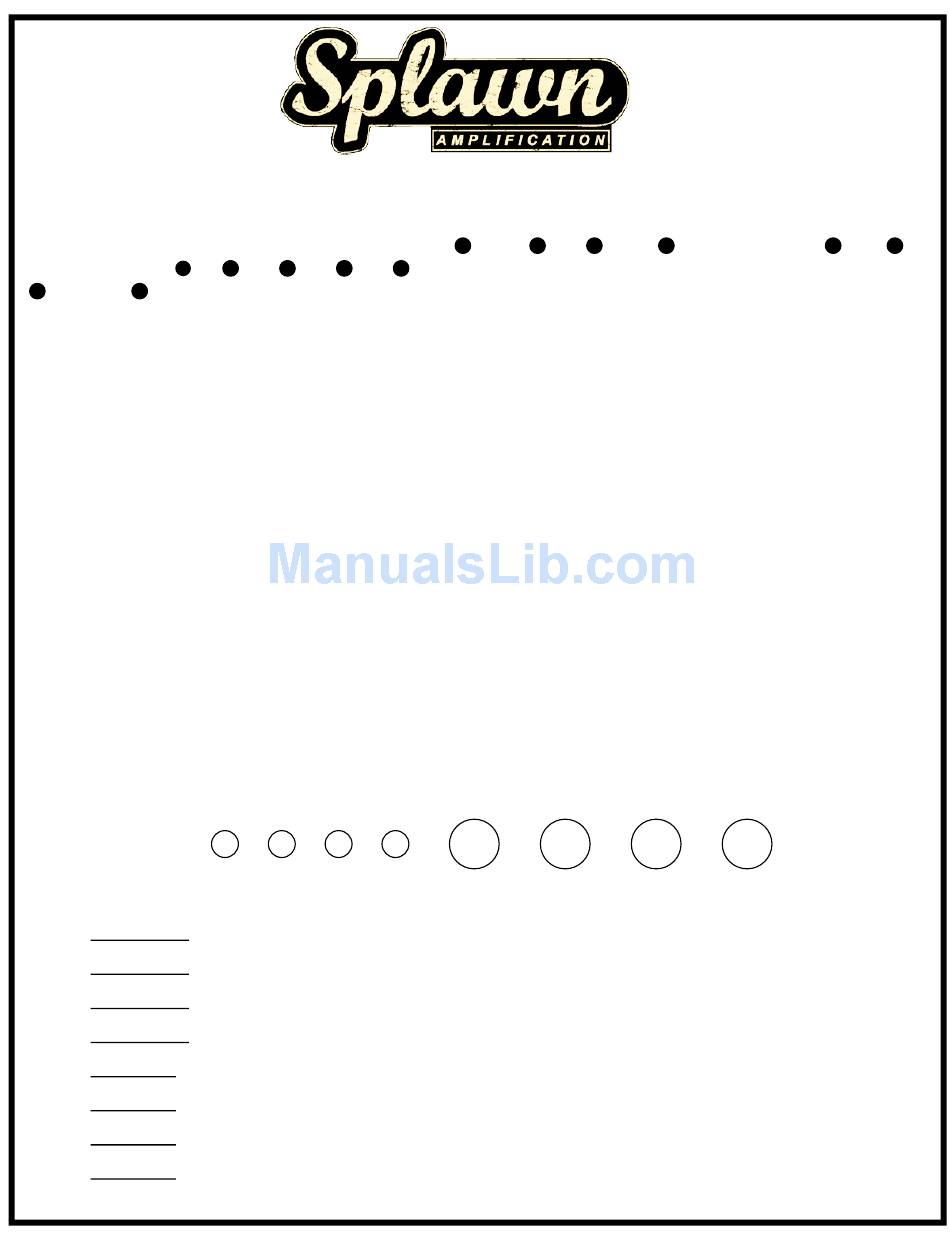

Tube Layout
SELECTOR
MAINS INPUT
MAINS FUSE
8
4
16
100v-120v
220v-240v
OUTPUT
VOLTAGE
7
8
HT FUSE
4A 120V
1A Slow-Blow
2A 220/240V
