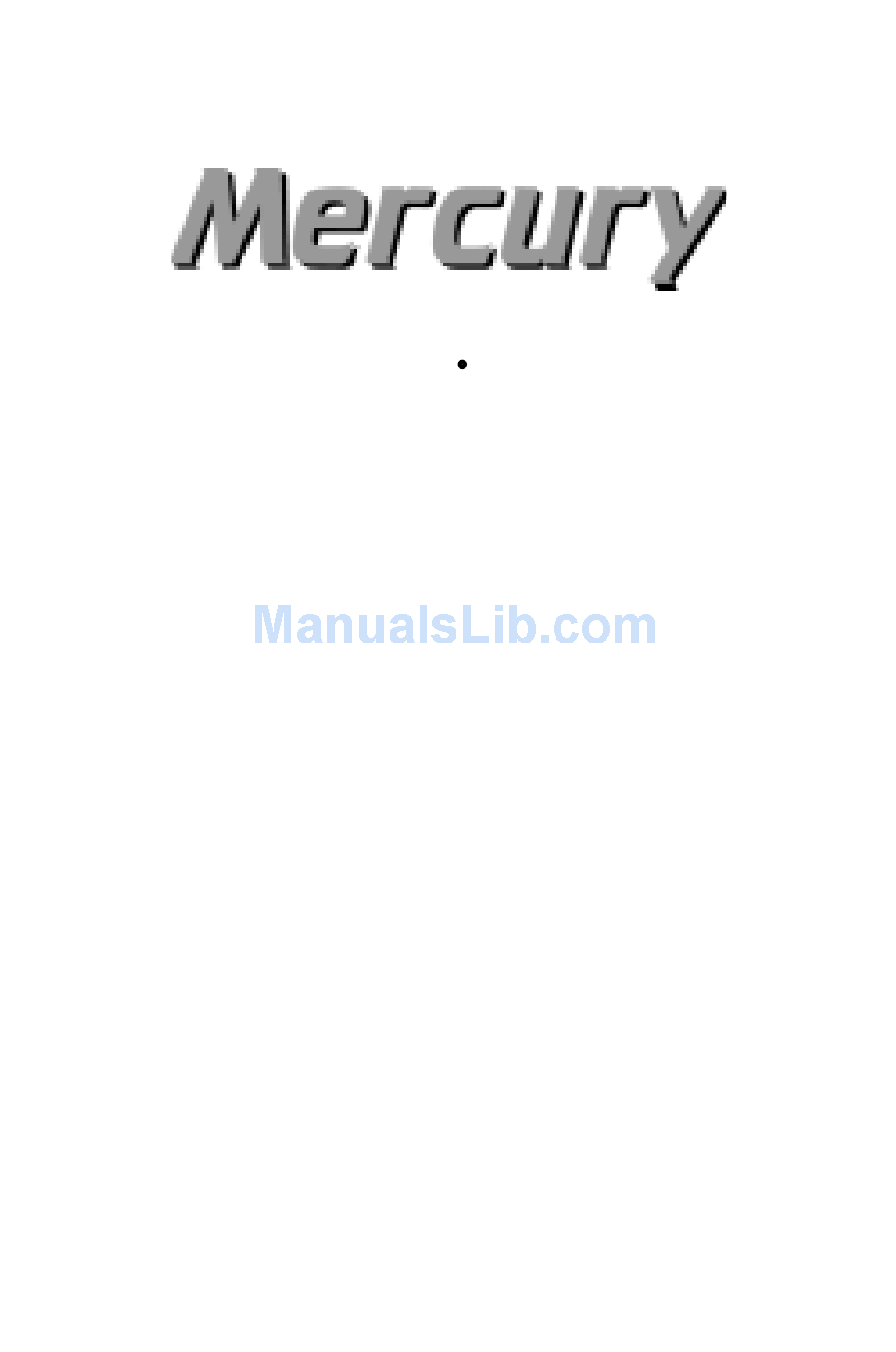

Mercury KOB MP210 User Manual

Digital mp3 player

Advertisement

Quick Links

Digital Entertainment
KOB MP210
Digital MP3 Player
User Manual
User Manual
User Manual
User Manual
User Manual
Anytime, Anywhere

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KOB MP210 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Mercury KOB MP210

  • Page 1 Digital Entertainment Anytime, Anywhere KOB MP210 Digital MP3 Player User Manual User Manual User Manual User Manual User Manual...
  • Page 2: Table Of Contents

    Table of Content Introduction ................Precautions ....................3 In the Package ..................4 Player Overview ..................5 Basic Operation ................Use as MP3 Player .................. 6 Use as Portable USB Storage ..............6 Inserting Battery ..................7 Installing the Device ................. 8 Operating Instruction ................
  • Page 3: Introduction

    Introduction Precautions...
  • Page 4: In The Package

    Introduction In the Package Main Unit Stereo Earphone Mini-USB Cable CD for Driver Installation User Manual...
  • Page 5: Player Overview

    Introduction Player Overview Front View Side View 1 Earphone Play/Stop EQ mode LED Indicator Volume + Volume - Top / Bottom View Side View 2 USB Connecion Port Lock Battery Compartment...
  • Page 6: Basic Operation

    PLAY/STOP to power on. You can control it easily refer to the instruction of operating Use as Portable USB Storage Mercury MP3 player can be used as a portable USB storage solely (USB1.1). If your operating system is Window Me, Windows 2000, Window XP, the MP3 player is plug and play.
  • Page 7: Inserting Battery

    Basic Operation Inserting Battery Inserting a battery Open the battery cover. Insert the battery. Be sure to match the + and - ends of the battery with diagram inside the battery compartment. Close the battery cover. NOTE: - To avoid corrosion, remove the battery if the player is not to be used for a long time. - Remove dead battery immediately to avoid damage from corrosion.
  • Page 8: Installing The Device

    Basic Operation Install the Device Connect the USB cable (provided) to the USB port of your computer. Type “A” USB port on the panel of the PC Type ”B” USB port of MP3 Player Connect the USB cable to match the direction. Turn on the player, and connect the LED indicator is flashing when power on.
  • Page 9: Operating Instruction

    Basic Operation Operating Instruction To Turn ON, Play & Pause and Turn OFF To select EQ mode To lock all the button To increase volume To decrease volume Press once to select the next track, press continually to fast forward Press once to select the previous track, press continually to fast reverse LED Indicator...
  • Page 10: Software Installation

    Software Installation Installing Software on the PC If your operating system is Win 98SE, Win 98 & Win95 etc. It is important to install Mercury Music Center software before connecting Digital MP3 Player to PC. The installation CD contains the following contents: - Device Driver (Only for Win98 &...
  • Page 11 Software Installation 6. Select the folder to Install. 5. Click “Yes” to accept the License Click “Next” Agreement 8. Click “Finish” 7. Click “Next” Complete the installation NOTE : If you are using Windows XP, the pop-up window of “Digital Signature Not Found” will appear.
  • Page 12: Listening To Music

    Listening to Music 2. Put the LOCK switch to "OFF". 1. Connect the earphones as below. 3. Switch ON the Player Press and hold the “Play / Stop” button for 5 seconds. Then, release the button could enter Idle mode automatically. (Note : The player will auto-power off if you do NOT press and hold the button for enough time) Idle mode...
  • Page 13 Listening to Music 7. Press the Play / STOP button to Pause 6. To scan track music Long press to fast reverse Long press to fast foward Long Press Long Press Press Once 8. To adjust the volume 9. To change DSE EQ mode + : To increase volume Normal >...
  • Page 14: File Management

    File Management To achieve this, you should activate the Window Explorer after connecting the USB cable between the player and the PC. Transferring files 1. Switch on the player and connect it securely to the PC with the USB cable. 2.
  • Page 15: Formatting Mp3 Player

    Other formatters, including Windows Formatter will inhibit music playback. Press the PLAY / STOP key momentarily to power on the player. Click START >> Program >> Mercury Music Centre Select Format, the dialog box of Format will pop up. Rename the Volume Label as you like...
  • Page 16: Firmware Recovery

    5. A new drive called Player Recovery Device Class will appear in the Device Manager but removable drives do not appear yet. 6. After recovery mode driver has loaded, run the Update program from the Start menu (Start -> Programs -> Mercury Music Centre-> Update).
  • Page 17 Firmware Recovery 7. When the Mercury Firmware Download window appears, press Start. This will update the hardware with USB Mass Storage firmware. 8. When the update is completed, EJECT and wait until it is safe to remove media. Removable drives will not be displayed. Unplug the hardware from USB.
  • Page 18: Troubleshooting

    Troubleshooting Should any problem persist after you have checked these symptoms, consult your dealer or contact support at www.kobian.com - Check whether the battery have been inserted in properly. No Power - Check whether the “LOCK” switch on the player is ON (switch to “OFF”...
  • Page 19: Specification

    Additional Information Specifications Item Category Specifications Memory 64MB /128MB/256MB (optional) Dimension 78 x 32 x 20 mm Weight 28g (without Battery) Battery 1 AAA size Alkaline battery Frequency Range Audio 20 Hz~ 20KHz Headphone Output (L) 15mW + (R) 15mW (32ohm) max. Volume S/N ratio >...
  • Page 20 ATTENTION ATTENTION ATTENTION ATTENTION ATTENTION Make sure that the USB driver is INSTALLED BE- FORE connecting the MP3 player to computer. Unplug the MP3 player during installation. During data transferring, disk formatting or firmware updating, DO NOT unplug the USB cable when the LED is still Flashing;...
