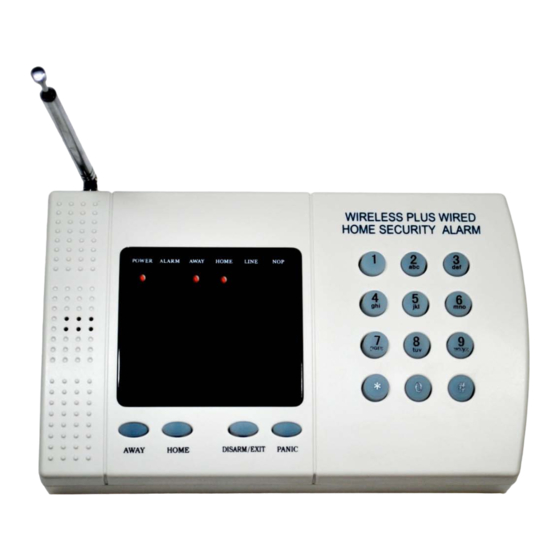

Summary of Contents for YY-Electron Wireless Home Security Alarm System
- Page 1 USER MANUAL Wireless Home Security Alarm System YY -ELECTRON.INC...
-
Page 2: Table Of Contents
Table of contents Powering Up The Keypad/Control Unit ..........................2 Attach Siren ..................................3 Attaching Telephone to Keypad Dialer ..........................3 Activating Wireless Outdoor Siren............................ 4 Activating Wireless Siren /w Strobe..........................4 Activating Wireless Luxury out/indoor Siren w/strobe..................... 4 Programming status ................................ - Page 3 yy-electron.inc...
-
Page 4: Powering Up The Keypad/Control Unit
This keypad/controller has an enhancing security design with the on/off switch on the top of the keypad/controller unit. To switch the keypad/control on and off, please press the yellow power switch all the way down with the tip of a pen or pencil. yy-electron.inc... -
Page 5: Attach Siren
” receptacle on the top of the keypad/controller. Insert the line from your telephone into the “ PHONE ” receptacle on the top of your keypad. Notice: Phone line inserted into wrong dialer phone jack may prevent accessibility of keypad/dialer from a remote location by telephone. yy-electron.inc... -
Page 6: Activating Wireless Outdoor Siren
Plug power cord of wireless luxury out/indoor siren w/strobe into power receptacle and then into your wall outlet. Repeat this action until you hear “short sound”, and then you will hear “long sound ” that indicates the siren has been activated. Turn keypad power switch off. yy-electron.inc... -
Page 7: Programming Status
(you can 1, 2, 3, 4 , 【 】 【 】 substitute your own password for factory default password- see page 6). You are now in programming status and in position to program any of the changes listed below. yy-electron.inc... -
Page 8: Change Password
Controller , and then push button【 1 your Second Entry Keypad . You will hear two beeping sounds indicating that your second entry keypad is now activated. Push EXIT to complete the process. See page 17 for Second Entry Keypad operation. yy-electron.inc... -
Page 9: Activating Your Portable Keypad
08. These are zone numbers. You may assign up to three sensors to the same zone. When a sensor is triggered the assigned zone number will light up on the LED screen of the keypad. It may be helpful for you to keep a list of the areas corresponding to the assigned zones yy-electron.inc... -
Page 10: Activating The Motion Detector / Pet Immune Motion Detector
(#), you will need to physically trigger the smoking/gas detector/glass break detector to activate them. Activation will be confirmed by a double beeping sound, Push button EXIT to complete the process. 【 study # 】 (06 to 08) yy-electron.inc... - Page 11 (see page 5), enter the number below into the keypad/controller. In the place of {06 to 08} enter the number you have chosen for the smoking detector, gas detector, glass break detectors. 【 7 2 (06 to 08) 2 # 】 yy-electron.inc...
-
Page 12: Activating The Door/Window Sensor
Activation will be confirmed by a double beeping sound. Push button EXIT to complete the process. 【 study (09 to 63) # 】 yy-electron.inc... -
Page 13: Deactivating A Sensor
Therefore, if you wish to use any of the disabled sensors down the road, there is no need to re-program or re-activate that sensor. yy-electron.inc... -
Page 14: Setting The Exit Delay Time/ Arm Delay Model
5), enter the number below into your keypad. In place of the {00 to 30}, enter the length of siren sounding time from zero (00) to thirty (30 ) minutes. 【 5 4 (00-30) # 】 yy-electron.inc... -
Page 15: Phone Line Anti-Cut Monitoring
10 seconds. 【REC # 】 Play Back. To play back recorded message, enter the sequence code below, After entering the pound sign (#), pick up the phone receiver to hear the message. 【REC 】 yy-electron.inc... -
Page 16: Programming Stored Phone Numbers
Please try to program your system in an area with the least possible interference, for example your basement or a room with concrete walls to avoid interfering signals being accidentally programmed into the system. yy-electron.inc... -
Page 17: Keypad/Controller Operation
To arm system: press number: “1” To disarm system: press number: “2” To monitor your home: press: “”, this allows 30 seconds of listening time; press “” for an additional 30 seconds. To exit: press “#” yy-electron.inc... -
Page 18: What To Do When The Alarm Auto-Dialer Call You
, and then enter into : 【 1 2 3 4 # 1 】 . You will hear portable keypad two beeping sounds indicating that your Portable Keypad is now activated. Push EXIT to complete the process yy-electron.inc... -
Page 19: Wireless Second Entry Keypad Operation
Change Second Entry Keypad password. Press the follow button below on Second Entry Keypad. 【1 2 3 4 (factory password) new password (must 4 digits) # 】 Operation. 【password # 1 】 Arm : Home Arm: 【password # 2 】 【password # 3 】 Disarm: 【password # 4 】 Help: yy-electron.inc... -
Page 20: Setting Up The Sim Card
Setting up the SIM Card The SIM card slides into the SIM card holder located on the back of the GSM Terminal. The following pictures illustrate insertion of the SIM card: yy-electron.inc... -
Page 21: Connecting The Gsm Module To The Keypad
Terminal and plug power adapter to AC outlet. Place SIM card into SIM card holder and the Terminal will search for the cellular signal. You can move the antenna to help locate the optimal location for the strongest signal. yy-electron.inc... -
Page 22: Operation Of Gsm Terminal
When the alarm system calls you: Listen to the message and then press to monitor your premises Listen to the message and then press # to disarm your system yy-electron.inc...
