LENCO DPA-800 User Manual

Digital photo album
Hide thumbs Also See for DPA-800:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

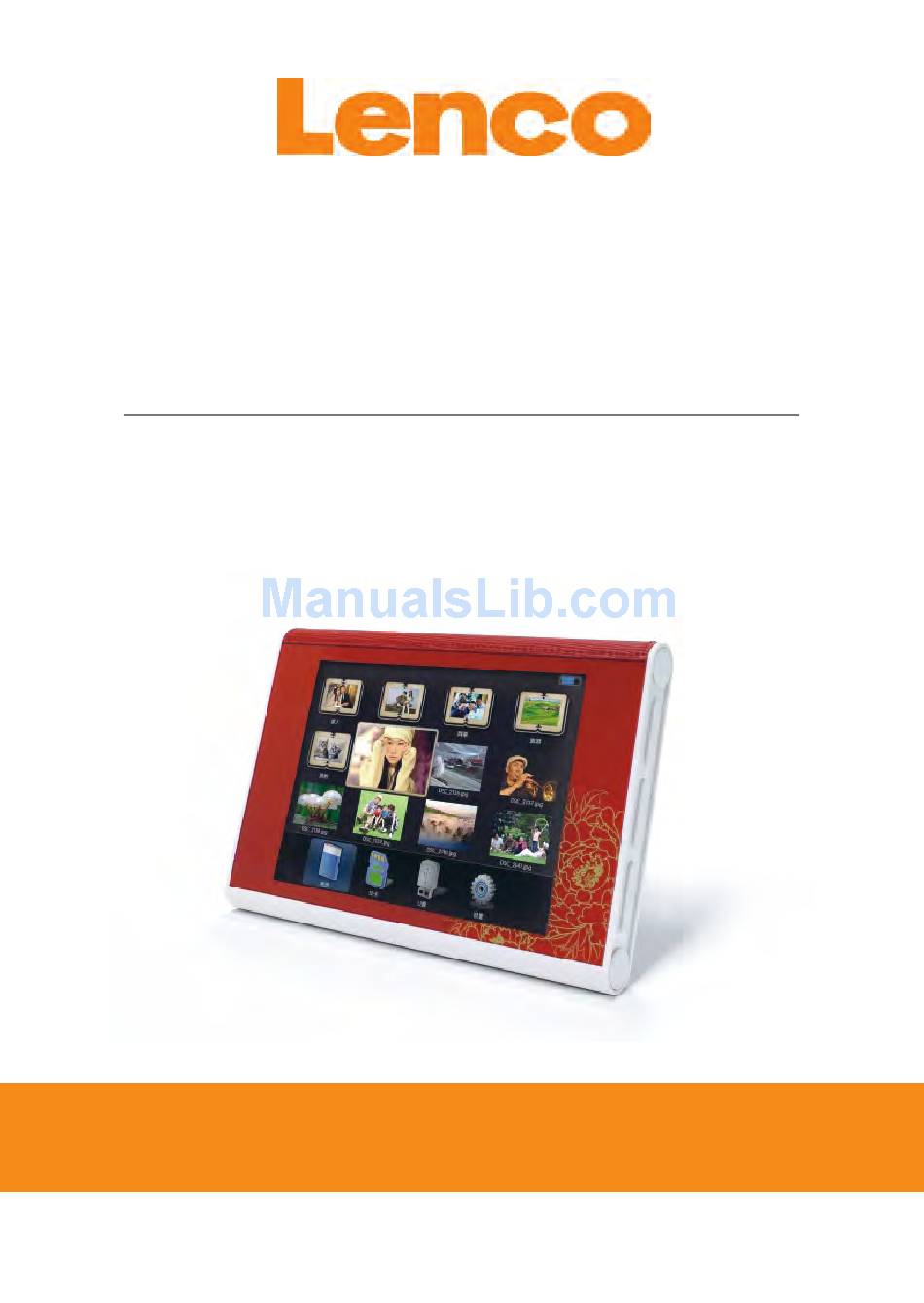

DPA-800
Digital Photo Album
User Manual
1. Gallary
2. Create Album
3. Settings
4. Copy, Delete 5. Photo Tag Line
Please read this manual before operating DPA-800, and keep it for future reference.
For information and support,
www.lenco.eu

Advertisement

Table of Contents
loading

Related Manuals for LENCO DPA-800

Summary of Contents for LENCO DPA-800

  • Page 1 DPA-800 Digital Photo Album User Manual 1. Gallary 2. Create Album 3. Settings 4. Copy, Delete 5. Photo Tag Line Please read this manual before operating DPA-800, and keep it for future reference. For information and support, www.lenco.eu...
  • Page 2 Thank you for purchasing DPA-800 DPA-800 is a new model of digital photo viewer. It is built-in with 8 Inc, 800x600 resolution LCD screen. You can browse with . JPG file format picture. Also with built-in FLASH dodges saves. Including manage folders and files with “Create, Move, Delete”.

  • Page 3: Table Of Contents

    Location Of Controls Others Accessories Plug In Memory Card Connecting USB Flash Memory Connecting With PC Viewing Photos 1. Turn On DPA-800 2. Main Menu 3. Select Source Of Photo 4. Browsing Photo 5. Zoom In 6. Browsing Sub Album 7.

  • Page 4: Package Included

    Package included : Please check DPA-800 packaging box is included the accessories below, if there is missing, please contact with distributer. Frame Supporter x 2 Digital Photo Album Leather Cover User Manual USB Cable USB Host AC-DC Adapter...

  • Page 5: Important

    Photo Album. This will reduce the risk of fire, electric shock, product damage and personal injury. STOP using when any liquid or foreign object went into DPA-800 Digital Photo Album. At the same time, please turn it off and unplug all the power, and do not con inue to use the photo frame to prevent fire or electric shock hazard.

  • Page 6: Operation Procedures

    Example video game , speaker, radio. Strong magnetic force might damaged DPA-800 Digital Photo Album spoiled or lost LCD screen. When charging battery on DPA-800, do not move it. Please switch off the power before unplug. Make sure there is no power source connected wi h the unit before moving it, else might caused fire or electric shock hazard.

  • Page 7: Getting Started

    Getting Started Location Of Controls Please read carefully for every buttons name for understanding and operating /setting the unit. Left button Power button SD/MMC/MS Slot USB Host Port PC’s USB Port Power Port Right button Con rm button Return button Back button Next button Menu button...

  • Page 8: Others Accessories

    Others Accessories Using DPA-800 Digital Photo Album might need :- Memory Card and Computer USB flash memory Plug In Memory Card Memory Card Slot 1. Open Memory Card Slot Cover 2. Plug in the memory card with label side face down.

  • Page 9: Connecting Usb Flash Memory

    Connecting USB Flash Memory USB Flash Memory Port 1. Open memory card slot and USB port cover. 2. Connect USB flash memory with USB cable, plug in the another side according the arrow showed on right. Connecting With PC 1. Open PC USB slot cover. 2.

  • Page 10: Viewing Photos

    Push up the button, and on animation will appear on the screen and it is on. 2. Main Menu After DPA-800 turned on, there is a main menu on the screen like below. Another album in sub album Battery status...

  • Page 11: Select Source Of Photo

    3. Select Source Of Photo Enter into main display, press “ ” button to select the source of photo from“Photo Alum” ,“Memory Card” or “USB Device” (pitch on with bright blue), then press “OK” button to enter. 4. Browse Photo Enter into source of photo, press “...

  • Page 12: Zoom In

    5. Zoom In Under browse mode, press “OK” button to zoom in, the photo will be zoom in one time as press “OK” button one time, it can up to 3 times. Press “ ” button or “ ” button to move the view area to up, down, left or right.

  • Page 13: Circumrotate Screen

    7. Circumrotate Screen If the photo is lengthways, make DPA-800 upright, the photo will be circumrotate with DPA-800. Playing Slideshow Slide Show From Sub-photo Album File 1. Select sub-photo album le, press “M” button to display menu, click “ ”...

  • Page 14: Photo Slideshow

    Photo Slideshow 1. Select photo, press “M” button to display menu, then press “ ” button to click “slide show” option, press “OK” button again to play slide show. Slideshow Effects 1. Select photo, press “M” button to display menu, press “ ”...

  • Page 15: Advance Functions Controlling

    Advance Functions Controlling Create Sub-photo Album File 1.Built in player * This function only works in main display. If is not at main display, press “ ” button back to main display. Under mode of main menu, press “M” button to display the menu, press “...
  • Page 16 2. Create Folder From Computer 1. Connect DPA-800 to computer * On the computer 2. Double click my computer, 4. And rename the new folder. 3. Open the folder,right select removable memory click and select create device. new folder.

  • Page 17: Copy Photo And Sub Album Folder

    Copy Photo and Sub Album Folder Copy Photo 1. Press “ ” button to choose the picture, and press “M” button. 2. Press “ ” button select “copy photo to” option, click “OK” button to continue. 3. Press “ ” button to select copied photo copy to “ ash card” or “USB Driver”.
  • Page 18 Copy Sub Album Folder 1. Press “ ” button to select the sub photo album folder which you wish to copy, and press “M” button to display the menu. 2. Press “ ” button to select “copy photo to” option, click “OK” button to display subordinate menu.
  • Page 19 Copy All Content From Driver * Only can use this function in main display. If you are not in the main display press “ ” button to return back to main display. 1. Under main menu, press “ ” button to choose the driver. 2.

  • Page 20: Delete Photo And Sub Album Folder

    Delete Photo and Sub Album Folder Delete Photo 1. Press “ ” button select the photo, and press “M” button to display the menu. 2. Press “ ” button select “Delete photo” option, and press “OK” button to display subordinate menu. 3.
  • Page 21 Delete Sub Album Folder 1. Press “ ” button to choose the sub album, and press “M” button to display the menu. 2. Press “ ” button to select “Delete album folder” option, and press “OK” button to display subordinate menu. 3.
  • Page 22 Delete All Content From Driver * This function only able to use in main display. Press “ ” button to return back to main display. 1. Under main menu, press “ ” button to select the driver . 2. Press “M” button to display the menu, and press “ ”...

  • Page 23: Setup

    Setup Under main menu, press “ ” or “ ”and select “Setting” option, and press “M” button to diplay the menu. Language Setup Press “ ” and select “Language”, and press “OK” button. Englis h Italia Deu s ch Franç ais Españ...

  • Page 24: Slideshow Speed

    Contrast Setting Press “ ” button to select “Contrast” option, and press “OK” button to display the contrast setup. Press “ ” button to adjust the contrast, and press “OK” button to con rm. Slideshow Speed Press “ ” button to select “Slideshow speed” option, and press “OK” button to display the menu.

  • Page 25: Add Picture Tag Line

    Add, Display Picture Tag Line Add Picture Tag Line 1. Open DPA-800, connect to PC. * On the computer Right click and select propeties on a picture. 2. Select “Describtion” tab, key in tag line under “Tag” Write tag line here Click “OK”...
  • Page 26 Display Photo Tag Line 1. Press “ ” button or “ ” button to select the photo, then press “M” button to display the menu. And press “ ” to select “Photo tag line” option, and press “OK” button to display subordinate menu. 2.
