Page 1: Media Player

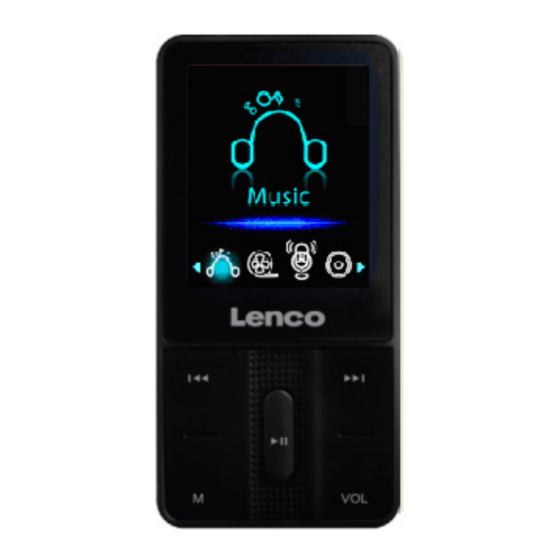

USER’S MANUAL Xemio-653 Media Player For information and support, www.lenco.com... -
Page 2: Safety Warnings
Lenco suggests retaining the packaging in case for future transport of the product. If at any time in the future you should need to dispose of this product please note that: All batteries and accumulators need to be removed from this product (Removal of Waste Batteries and Accumulators). - Page 3 Get to know the controls on Player Item Description Item Description (Previous / Fast-Rewind / VOL-) Microphone (Mono) (Next / Fast-Forward / VOL+) Earphone Output Jack M (Menu / Enter / Select) USB Mini Connector (Play / Pause / Standby ON - OFF) Micro SD Memory Card Slot VOL (Volume Control) TFT LCD Display...
- Page 4 Note: Player continues to use battery power after it’s been turned off, if unit isn’t used for a while, the battery might need to be charged. Charging the Battery: You can charge the player battery in two ways: Connect player to your computer. Or, Use the USB power charger.
-
Page 5: Getting Start The Player
To Connecting Player To connect player to your computer, plug the connector of USB Cable into a USB port on your computer, and connect the other end to player, then the “Connect” screen appear for view. Now the player is ready for media files transfer with your computer and the battery is charging. - Page 6 (If Picture chooses) (If Text chooses) (If Game chooses) (If Setting chooses) Use Setup Menu You might need to set date & time or change some default setting as you desired in setup sub menu before you start to use the player. To go into setup menu, from main menu, choose “Setup”...
- Page 7 To change “LCD set” You can set the backlight to illuminate the screen for a certain amount of time as you desired or make the backlight to always ON when every time you turn ON the player. To change LCD backlight, choose “LCD set” > choose “Dark mode”, a level bar with number appear then chose “0 (always On) / 5 / 10 / 15 / 20 / 25 / 30 / 35 / 40 / 45 / 50 seconds”...
- Page 8 will be losses. Choose “Format Device” then choose “Format Disk / Format Card” by using M and buttons, and then choose OK to process or choose Cancel to exit and back to setup menu. To View “Firmware Version” You might need to view the details about firmware information inside the Player. Choose “Firmware version”...
- Page 9 Use Fast-Forward or Fast-Backward Press and hold button to use fast-forward Press and hold button to use fast-backward. Adjust volume level In music playing , press “VOL” button, a change volume control screen appears, then press buttons to adjust volume levels to down / up. Wait for 6 –...
- Page 10 button. One “YES” or “NO” appear then press M button to confirm. All music files will be deleted once YES is selected and confirmed, a “Deleting” screen appear for a while and deleting process is in progress, then “Empty disk!” message will shown on screen for few seconds.
- Page 11 Replay Gap: In music playing mode, press M button, a Music Sub-menu appear, the choose “Replay Gap”, then choose “1 / 2 / 3 / 4 / 5 / 6 / 7/ 8 /9 / 10 second(s)” as you desired by using M buttons.
- Page 12 Local Folder In movie submenu screen, choose “Local Folder”, a file list menu appear, and then select folder and / or choose a desired movie file to play by using and M button. It will go back to music now playing screen once a music file is selected. Then press button to play.
- Page 13 Noted: This program is used to convert video files into AMV format, currently only AMV format is supported. Run “AMV Video Converter”, click to choose the folder where to save the AMV files, and then click to select the folder where the original files are. The original file will show in the file window once selected.
- Page 14 After conversion, the AMV files will play automatically for preview. And now the converted AMV file is ready to transfer, you can simply copy and place those converted AMV files to the media player. Note: Only pixels in 160x120 can be supported. 11.
- Page 15 12. Use Record Submenu (in Stop Mode) You might need to change the folder locations which want to store the record file and / or change record quality to better compression values. In Now Recording screen at stop mode, press M button, a “Record Sub-menu appear to use. Local folder In record submenu, choose “Local folder”...
- Page 16 Press and hold buttons to use fast-forward Press and hold button to use fast-backward. Adjust volume level In music playing , press “VOL” button, a change volume control screen appears, then press buttons to adjust volume levels to down / up. Wait for 6 –...
- Page 17 In voice playing mode, press M button, a Music Sub-menu appear, then choose “Repeat”, then choose “Normal / Repeat one / Folder / Repeat folder / Repeat all / Random / Intro” as you desired by using and M buttons. Replay Mode Set Repeat A-B: In voice playing mode, press M button, a list menu appear, then choose “Replay mode”...
- Page 18 To change previous / next photo, press button. Press and hold M button to back to main menu. 17. Use Photo Submenu in List Screen You might need to change some setting for photo browse. To change setting: Local Folder In list menu, press M button to call up the photo submenu.
- Page 19 use. Choose a file which you want to read by using button, and then press button to play. Press button to change next page, Press button to go back to previous page, Back to list menu screen, press button. Go back to main menu, press and hold M button 19.
- Page 20 You might need to add, select and delete some bookmark when you reading, to do this: Bookmark Select In eBook playing mode, choose “Bookmark select” by using and M button. Choose a stored bookmark which you want to call and then press M button to play. Bookmark Delete In eBook playing mode, choose “Bookmark delete”...
- Page 21 23. Trouble Shooting Unit cannot turn ON * Check whether Power is slide to ON. * Check battery is it charged with enough energy. No sound is heard from headphone. * Check whether Volume is set “0” and connect the headphone plugs firmly. * Check whether the headphone plug is dirty.
- Page 22 25. Disclaimer Updates to Firmware and/or hardware components are made regularly. Therefore some of the instruction, specifications and pictures in this documentation may differ slightly from your particular situation. All items described in this guide for illustration purposes only and may not apply to particular situation.
- Page 23 The helpdesk is accessible from Monday till Friday from 9 AM till 6 PM. When contacting Lenco, you will always be asked for the model and serial number of your product. The serial number can be found on the back of the device. Please write down the serial number...
- Page 24 (Waste Electrical and Electronic Equipment Directive). Products with the CE marking comply with the EMC Directive (2004/108/EC) and the Low Voltage Directive (2006/95/EC) issued by the Commission of the European Community. The declaration of conformity may be consulted at http://www.lenco.eu/supportfiles/CE/15dhev58nt989866fghfe.pdf ®All rights reserved...
