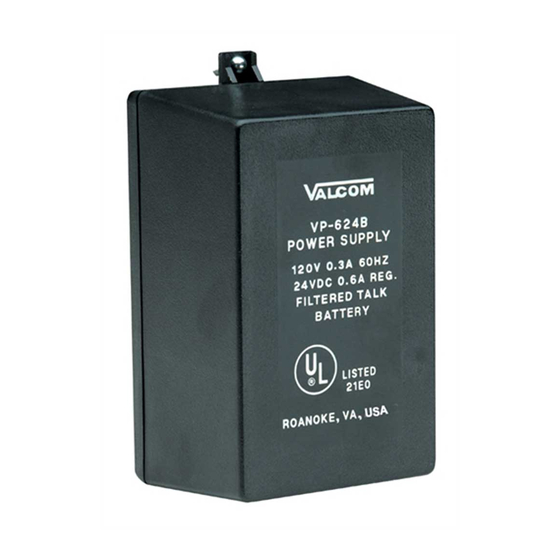

24VDC/600mA POWER SUPPLY
FEATURES:
24 VOLT DC "A" BATTERY POWER SUPPLY
REGULATED AND FILTERED
INPUT THERMAL FUSE PROTECTED
FLOATING OUTPUT
THROUGH GROUND CONNECTION
RECEPTACLE MOUNT
PROVIDES 12 VALCOM POWER UNITS
DESCRIPTION:
Receptacle mount, 24 Vdc 600 mA, filtered "A" Talk Battery power supply.
INPUT
Voltage/Frequency
Power
BTU/Hr
Connection
OUTPUT
Voltage
Current
Protection
Connections
5614 Hollins Road
Roanoke, Virginia 24019
E-Mail: support@valcom.com
VP-624B
SPECIFICATIONS:
105-120 Vac, 60 Hz
36 Watts
125 BTU/Hr
3 Prong AC Plug
24 Vdc Regulated +3 V
Filtered, Floating
10 mV Ripple Maximum
600 mA
Thermal Overload Protection
Short Circuit Protection
Screw Terminals
SPECIFICATIONS
REGULATORY
UL Listed
ENVIRONMENT
Temperature
Humidity
MOUNTING
Receptacle
DIMENSIONS AND WEIGHT
5.50" (13.97cm) H x 3.30" (8.38cm) W
x 3.25" D (8.26 cm)
Weight: 2.00 lbs (0.90 kg)
Phone: 540-563-2000
www.valcom.com
TECHNICAL
32 - 122 °F (0 - 50 °C)
0-85% Non-condensing
Fax: 540-362-9800
