Universal Remote Control MX-5000 Manual

Two way touch screen
Hide thumbs Also See for MX-5000:
Table of Contents

Advertisement

Quick Links

See also: User Manual

Operating Your System

With The MX-5000
Two Way Touch Screen

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MX-5000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Universal Remote Control MX-5000

Summary of Contents for Universal Remote Control MX-5000

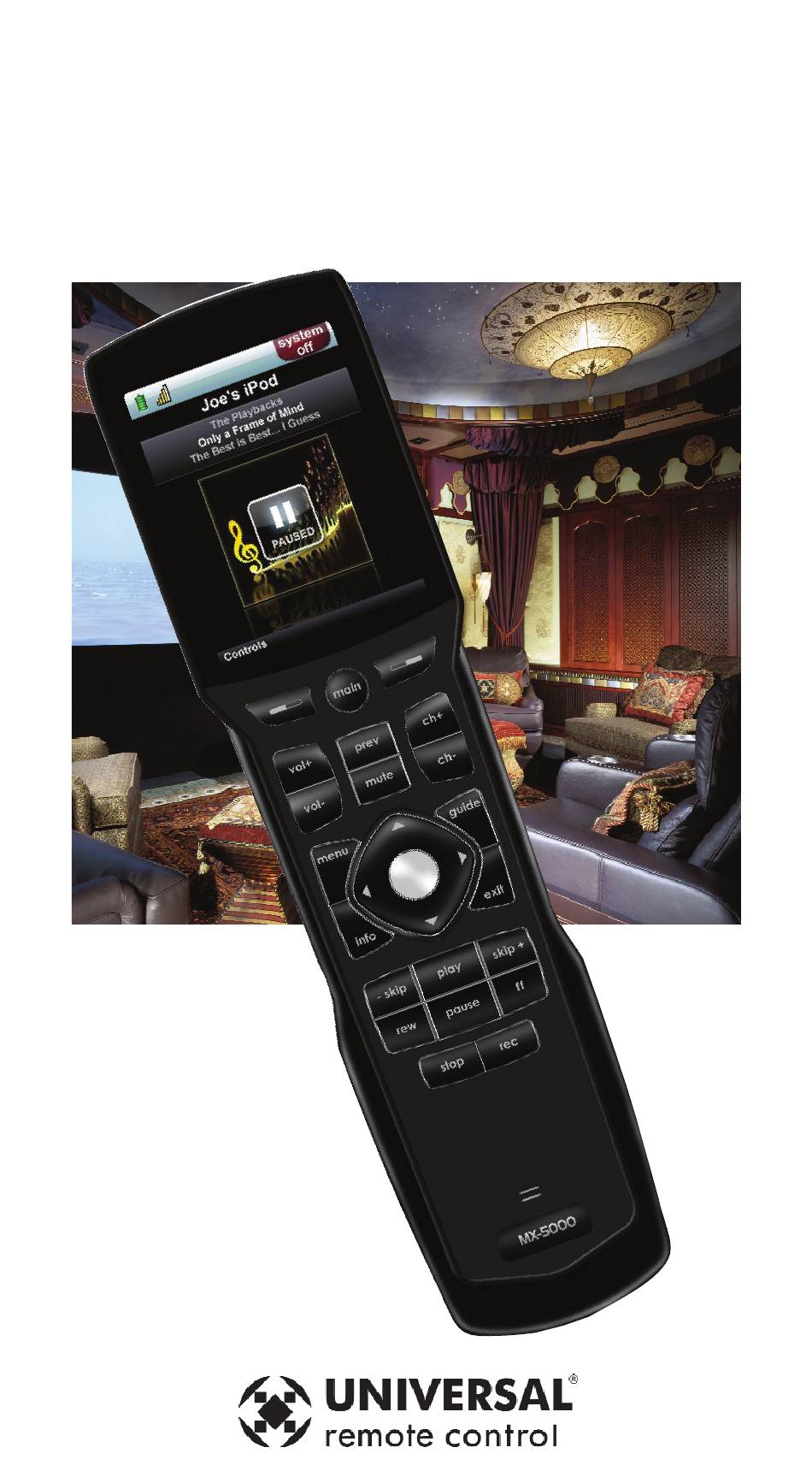

  • Page 1: Operating Your System

    Operating Your System With The MX-5000 Two Way Touch Screen...
  • Page 2 The information in this owner’s manual may be subject to change without prior notice. Complete Control is a registered trademark of Universal Remote Control, Inc. Entertainment Made Simple is a trademark of Universal Remote Control, Inc. All other brand or product names are trademarks or registered trademarks of their respective companies or organizations.

  • Page 3: Table Of Contents

    Sleep Settings Network Brightness System Button Light Power Settings Calibration Date and Time Sound Pickup Settings Factory Default Exit Maintaining Your MX-5000 Limited Warranty Statement End User Agreement Specifications Federal Communication Commission Interference Statement Precautions and Information Concerning Rechargeable Lithium-lon Batteries...

  • Page 4: Congratulations

    The integral motion sensor detects any movement of the touch screen and automatically backlights the screen. You do not have to press any button to display the screen. Any movement of the MX-5000 renews the backlighting. To adjust the backlighting, see page 9.

  • Page 5: Connecting The Battery Pack

    Two Way via Wi-Fi To use the MX-5000 with any two way companion product, the MX-5000 must be configured by your installer to be part of a LAN (local area network) via a Wi-Fi b/g access point or router. This is not user configurable.

  • Page 6: Optional Rf "No Rules" Operation

    Optional RF “No Rules” Operation In combination with an MSC-400 Master System Controller, or an RF Base Station, the MX-5000 can control your system without being in line-of-sight of the equipment. The MSC-400 enhances the capabilities of the MX-5000 by storing and issuing Smart Macros to your main system components.

  • Page 7: Operating Your System

    OUCH CREEN Operating Your System The MX-5000’s main pages display the activities and devices in your system. Press the main page button to see what your choices are. Large systems may have more than one page. Press either of the Page buttons if you don’t see all your devices.

  • Page 8: Using Two Way Personal Server Features

    Up, Down arrow but- tons. When you see the item you want, you can either touch it on the MX-5000 screen, or you can press the “OK” button. The Now Playing Screen appears after a selection is made.

  • Page 9: Revolutionary New Ipod Controls

    OUCH CREEN Revolutionary New iPod Controls The heart of your new personal server experience is found on your MX-5000 by pressing the Controls button. This reveals the unique personal server features only found on the MX-5000. The Page button is now labeled Controls and always accesses the unique iPod Controls screen.
  • Page 10 The “Jukebox” button opens a menu of choices allowing you to create a jukebox playlist anytime, right on your MX-5000. Touch the “add song to Jukebox” icon or “add album to jukebox” to add the currently playing song or album to the juke- box.
  • Page 11 MX-5000 T OUCH CREEN Using the Alpha Search Feature: The “search” button appears in the center of the bottom of the screen whenever you are browsing lists of artists, albums, songs, or playlists. Simply click on Search, and an alphabetical key- board appears.

  • Page 12: Displaying The Settings Screen

    Network WARNING! Only use this button when instructed to by Technical Support. The Network screen displays network information about your MX-5000 and the wireless network it is connected to. Do not make any changes on this screen! Page 9...

  • Page 13: Brightness

    Button Light You can adjust the brightness of the LEDs that backlight the buttons of the MX-5000. Move the slider to the left to dim the backlighting and move it to the right to brighten the backlighting. Power Settings The remaining charge can be displayed by selecting Power.

  • Page 14: Calibration

    Pickup Settings You can set your MX-5000 to only turn on when touched, or every time you move it. Simply select on or off. The pickup sensitivity can be adjusted with the slidebar.

  • Page 15: Maintaining Your Mx-5000

    If you spill water on it, take out the battery pack and let the MX-5000 dry for 48 hours before you try powering it up again. If you spill coffee or another beverage on it, clean it with distilled water.

  • Page 16: Limited Warranty Statement

    Limited Warranty Statement 1. Limited Warranty and Disclaimers Universal Remote Control, Inc. (“URC”) warrants that the URC equipment shall be free from defects in material and workmanship under normal usage for one (1) year from purchase when such is purchased from URC. This limited warranty is valid only in the United States of America.
  • Page 17 MX-5000 T OUCH CREEN SKILL AND CARE, OR OUTCOME OR RESULTS. WITHOUT IN ANY WAY LIMITING THE GENERALITY OF THE OTHER PROVISIONS HEREIN, WARRANTY DOES NOT COVER: (I) DAMAGE FROM MISUSE, NEGLECT OR ACTS OR NATURE, (II) MODIFICATIONS, (III) INTEGRATION WITH THIRD PARTY CONTENT (IV) BEYOND THE WARRANTY PERIOD AND/ OR FAILURE TO FOLLOW URC WARRANTY CLAIM PROCEDURE.

  • Page 18: End User Agreement

    MX-6000 T OUCH CREEN equipment are authorized for online internet sales. Buying URC’s PC programmable remotes or any of our Total Control® whole-house equipment online means buying equipment that does not have a URC’s limited warranty. Such equipment is not eligible for URC tech support or software support, either.

  • Page 19: Specifications

    MX-5000 T OUCH CREEN Specifications Microprocessor: 533MHz ARM9 RAM: 128Mbyte Mobile DDR NAND: 64Mbyte LCD: 2.8 Inch Screen (240 by 320) LCD Backlighting by LED Sound: mono 1 watt USB: 2.0 Devices - Supports up to 255 Devices with text, less with heavy graphics usage...

  • Page 20: Federal Communication Commission Interference Statement

    MX-5000 T OUCH CREEN Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 21: Precautions And Information Concerning

    MX-5000 T OUCH CREEN Precautions and Information Concerning Rechargeable Lithium-Ion Batteries u If you will not be using your remote control for an extended period of time, be sure to remove the battery u Do not attempt to disassemble, alter or apply heat to the battery.
  • Page 22 Page 19...
  • Page 24 500 Mamaroneck Avenue, Harrison, NY 10528 Phone: (914) 835-4484 Fax: (914) 835-4532 www.universalremote.com OCE-0073A REV 04...
